Code 3 - Map Sensor Circuit

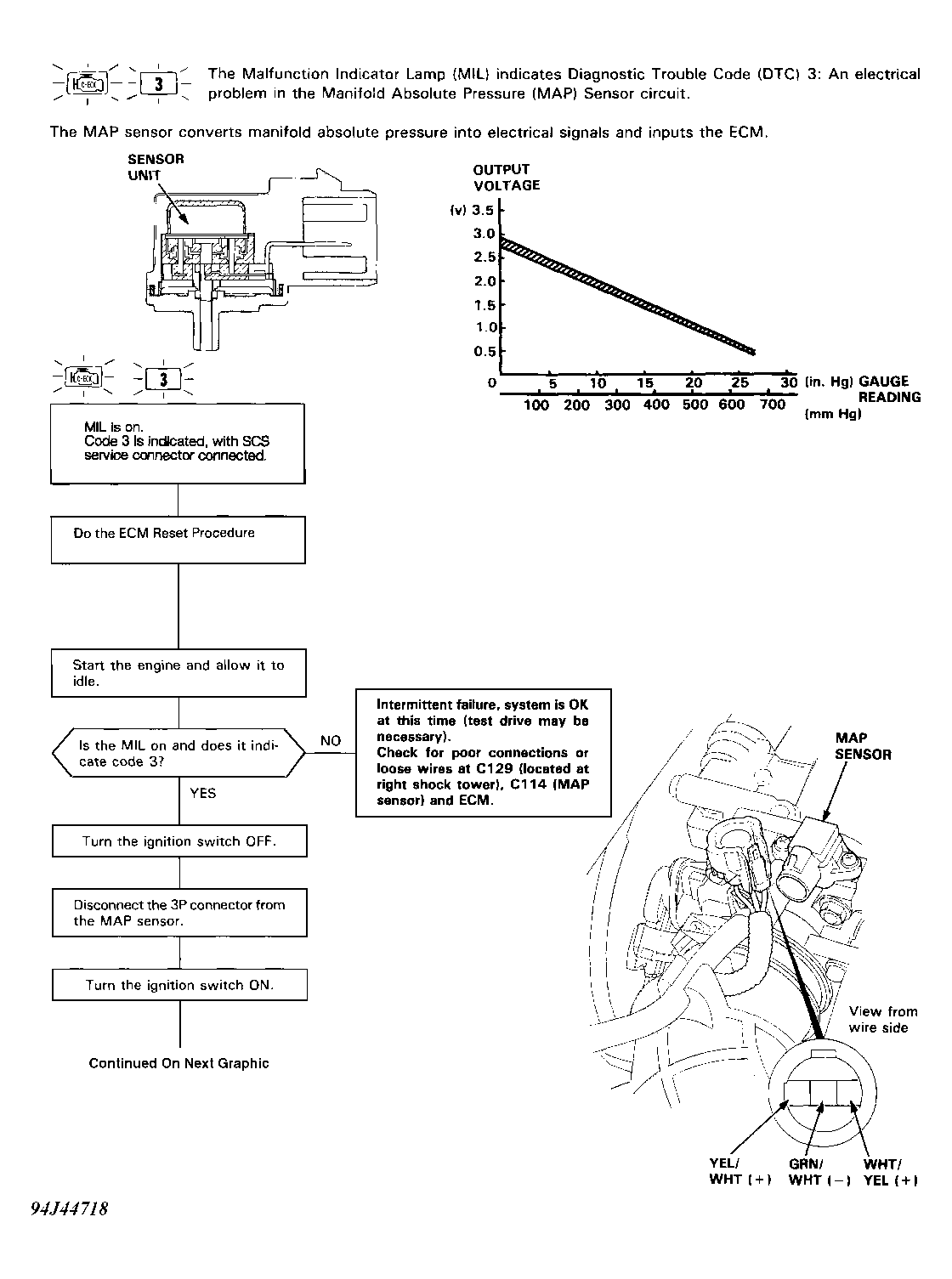

Fig 1: Code 3 Flow Chart (1 of 3) MAP Sensor Circuit

G94J44718

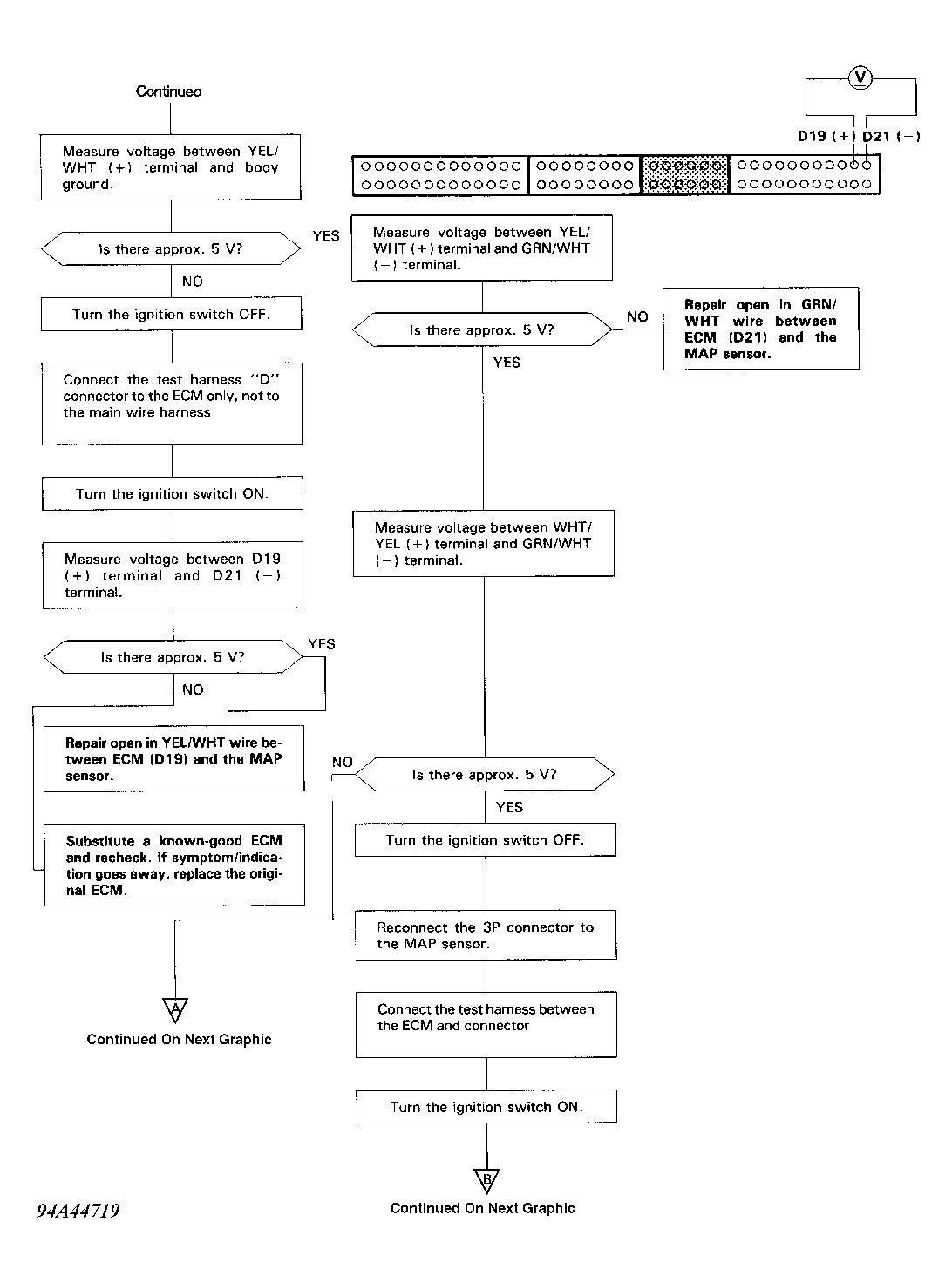

Fig 2: Code 3 Flow Chart (2 of 3) MAP Sensor Circuit

G94A44719

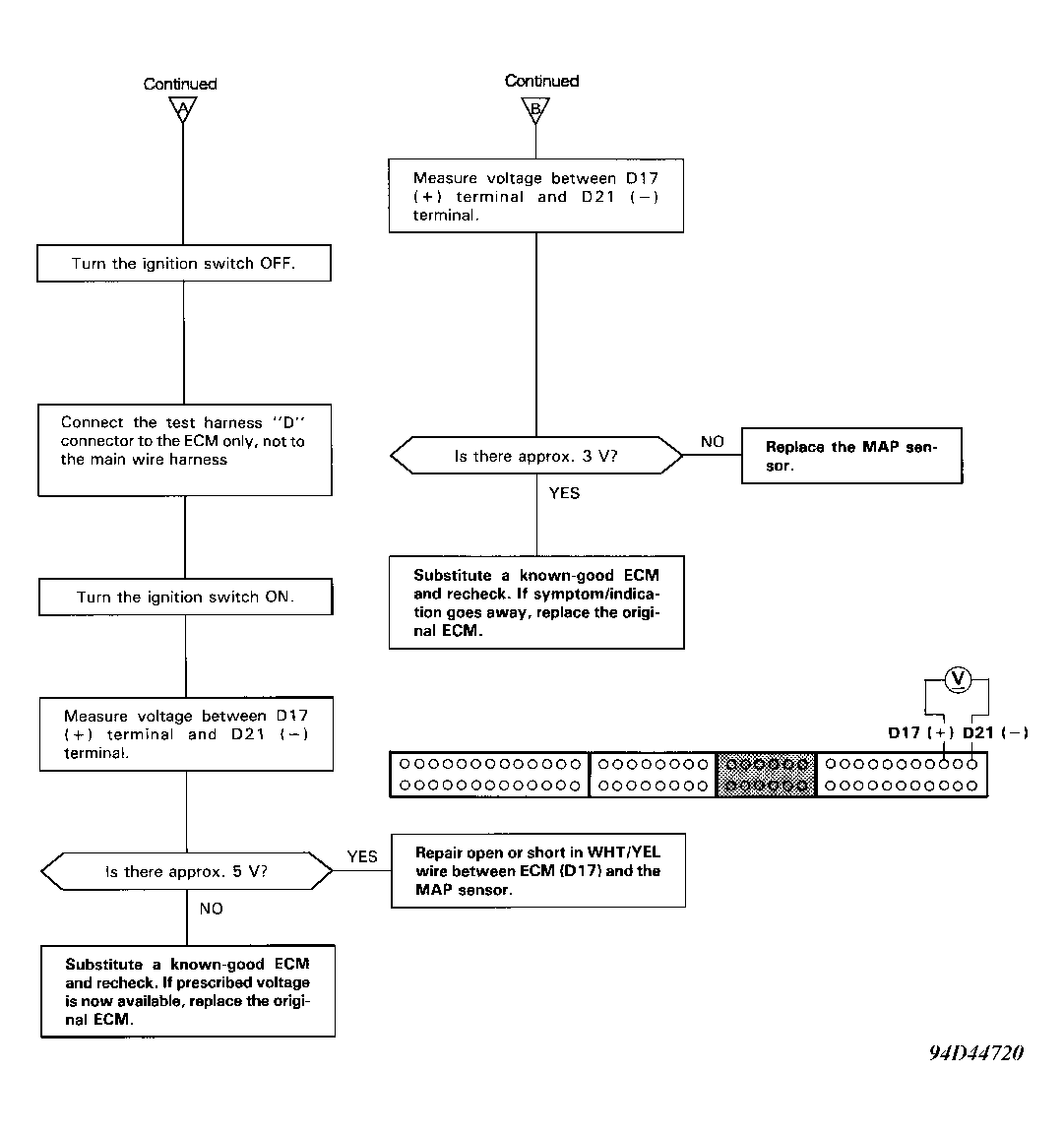

Fig 3: Code 3 Flow Chart (3 of 3) MAP Sensor Circuit

G94D44720
