Ignition Key Switch

  1. Remove the dashboard lower cover and knee bolster.
  2. Disconnect the 7-P connector on the under-dash fuse box. See Fig 1 .
  3. There should be continuity between the No. 2 and No. 4 terminals when the ignition key is inserted into the ignition key cylinder. There should be no continuity with the ignition key removed.

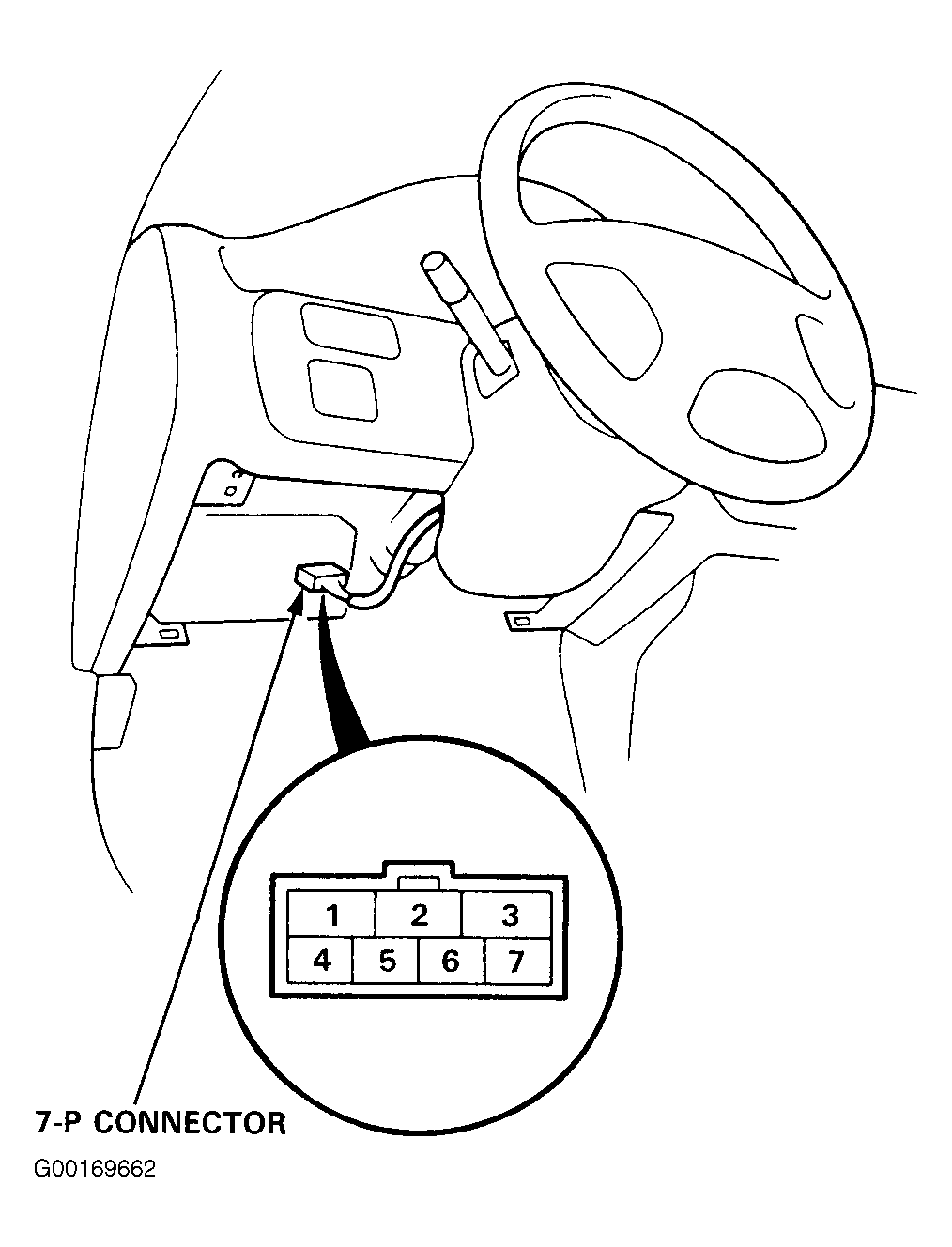

Fig 1: Locating & Identifying Steering Column 7-P Connector
G00169662Courtesy of AMERICAN HONDA MOTOR CO., INC.
