Code 4, 8 And/Or 9 TDC/CKP/CYP Sensor

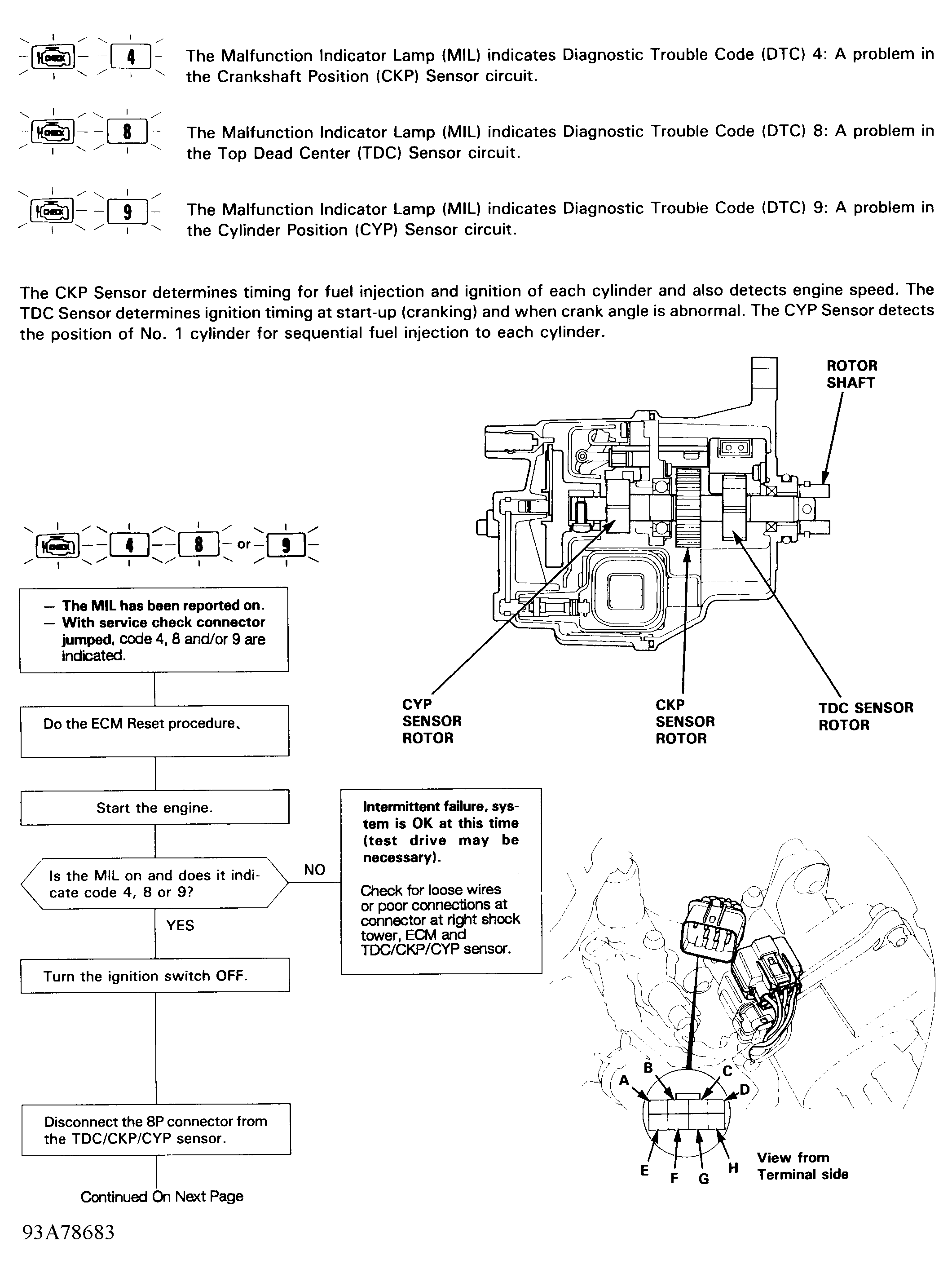

Fig 1: Code 4, 8 AND/OR 9 Flow Chart (1 of 2) TDC/CKP/CYP Sensor

G93A78683

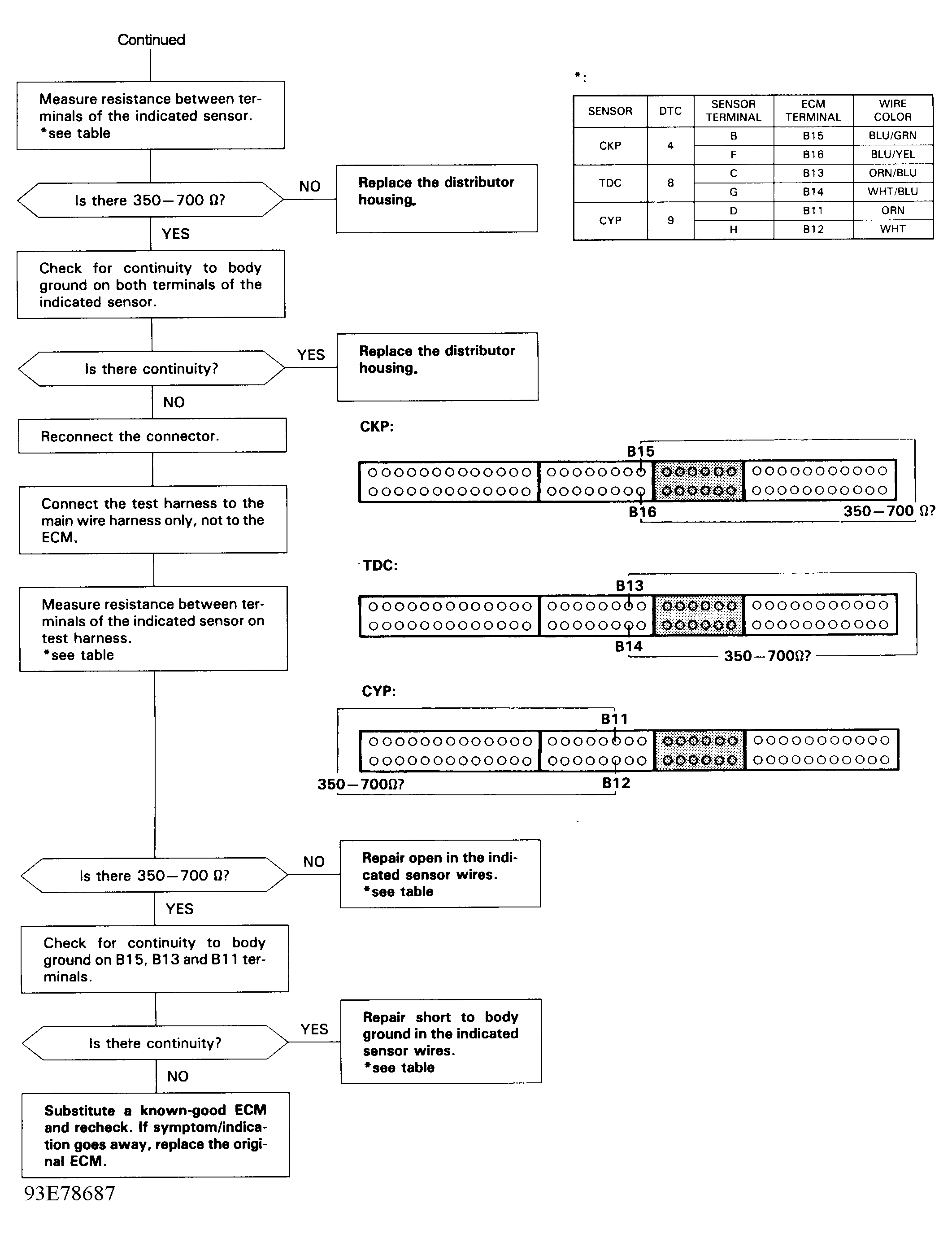

Fig 2: Code 4, 8 AND/OR 9 Flow Chart (2 of 2) TDC/CKP/CYP Sensor

G93E78687
