Code/No Code - No Start Trouble Shooting

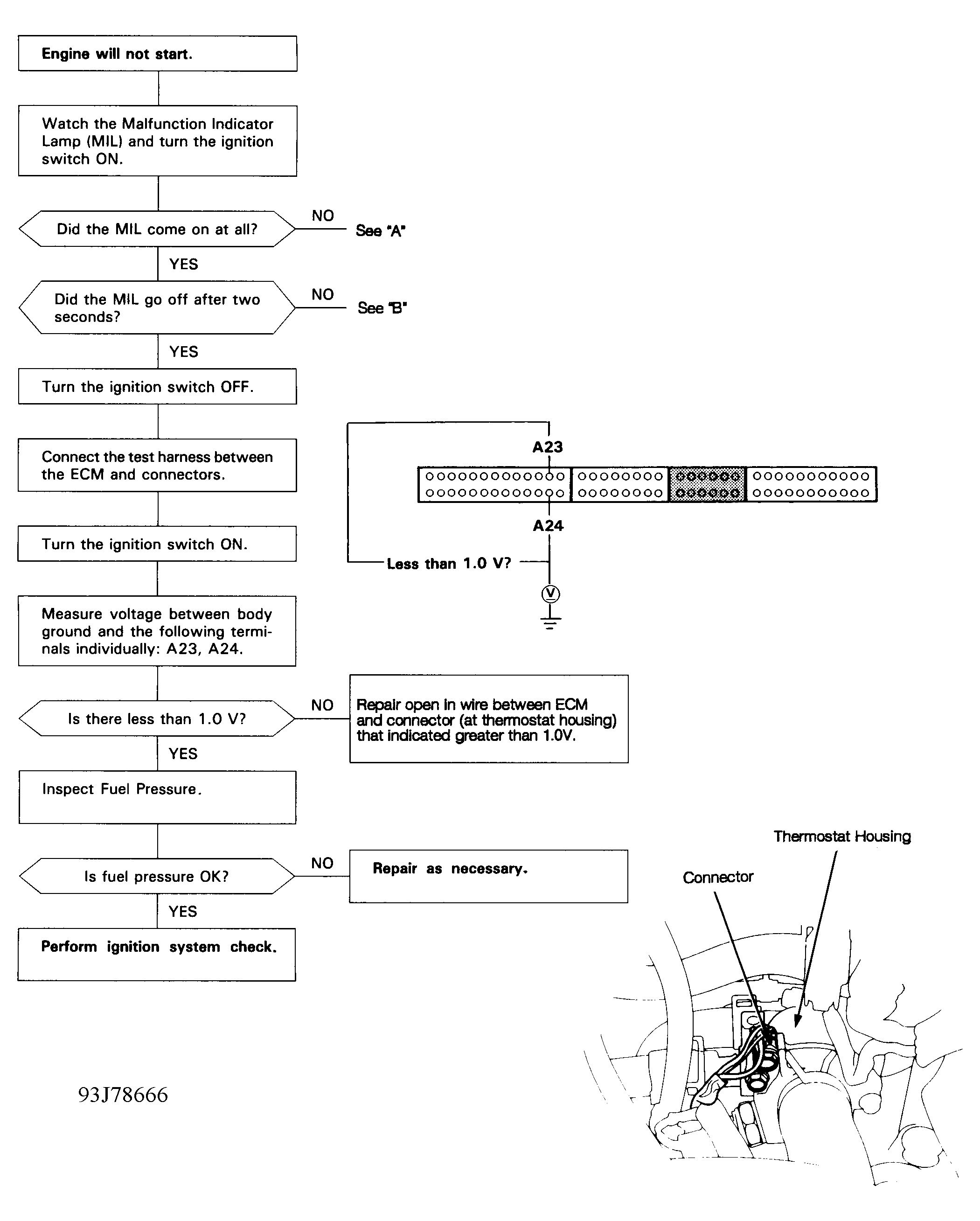

Fig 1: Code/No Code Flow Chart (1 of 5) Code/No Code - No Start Trouble Shooting
G93J78666

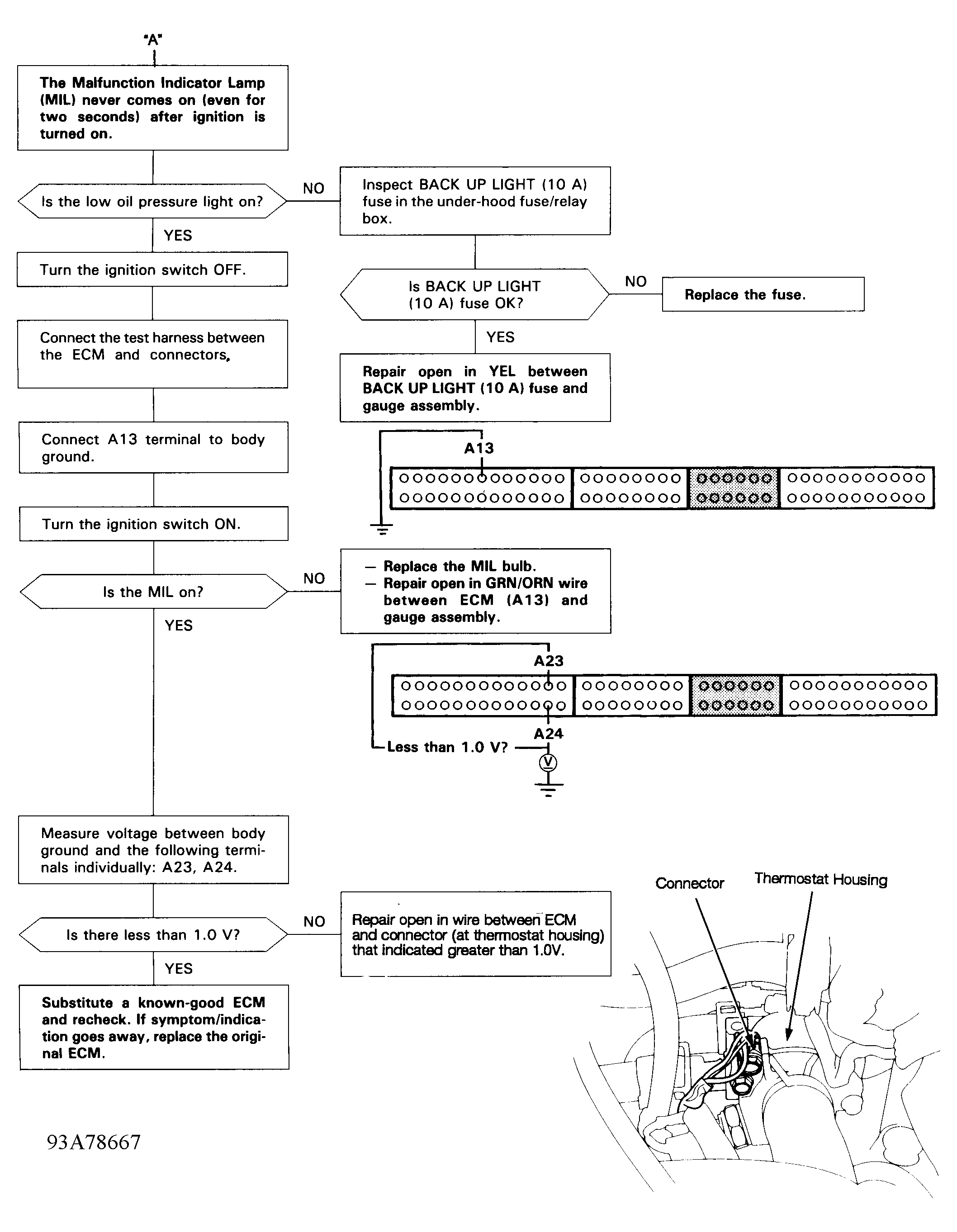

Fig 2: Code/No Code Flow Chart (2 of 5) Code/No Code - No Start Trouble Shooting
G93A78667

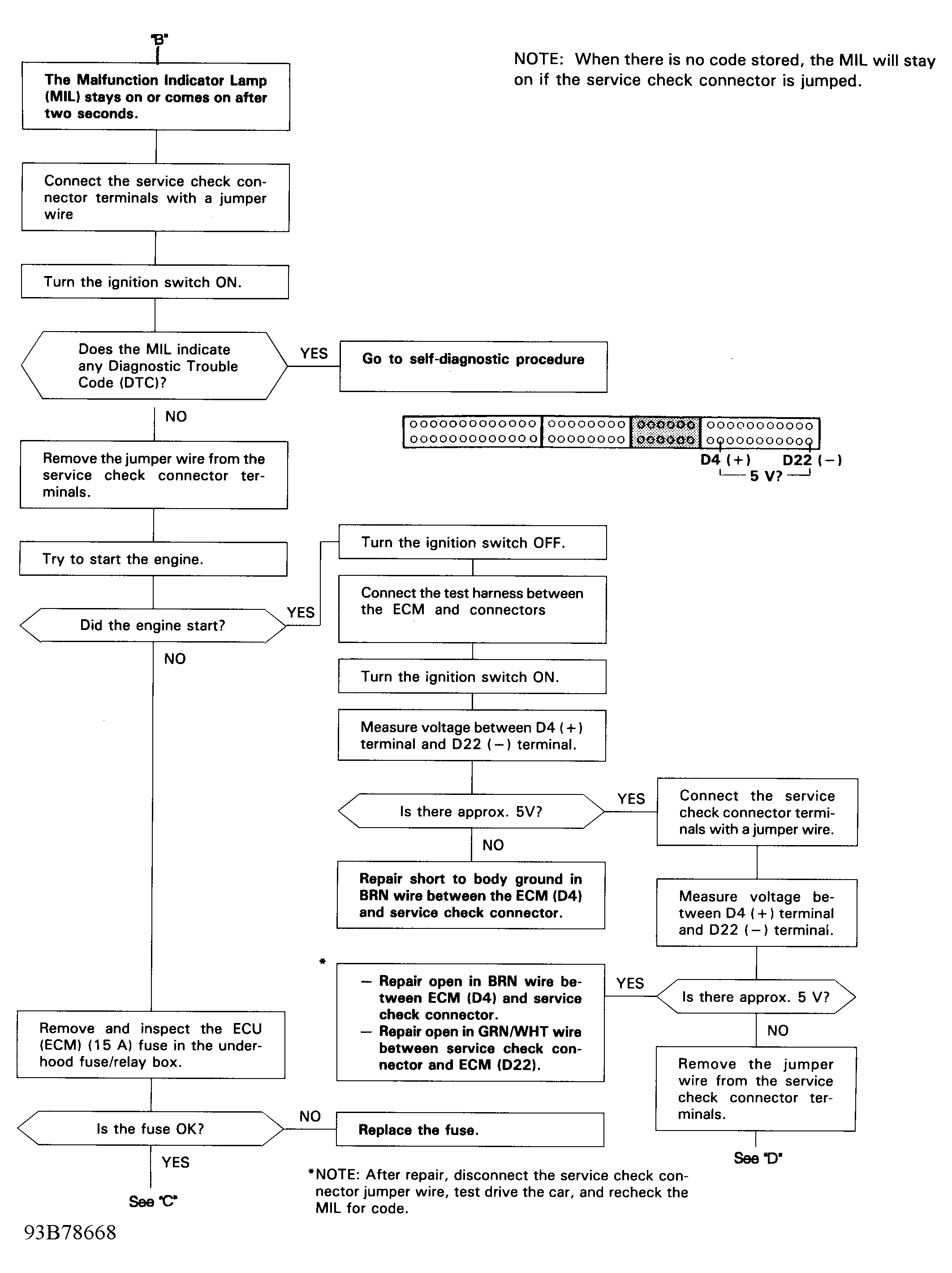

Fig 3: Code/No Code Flow Chart (3 of 5) Code/No Code - No Start Trouble Shooting
G93B78668

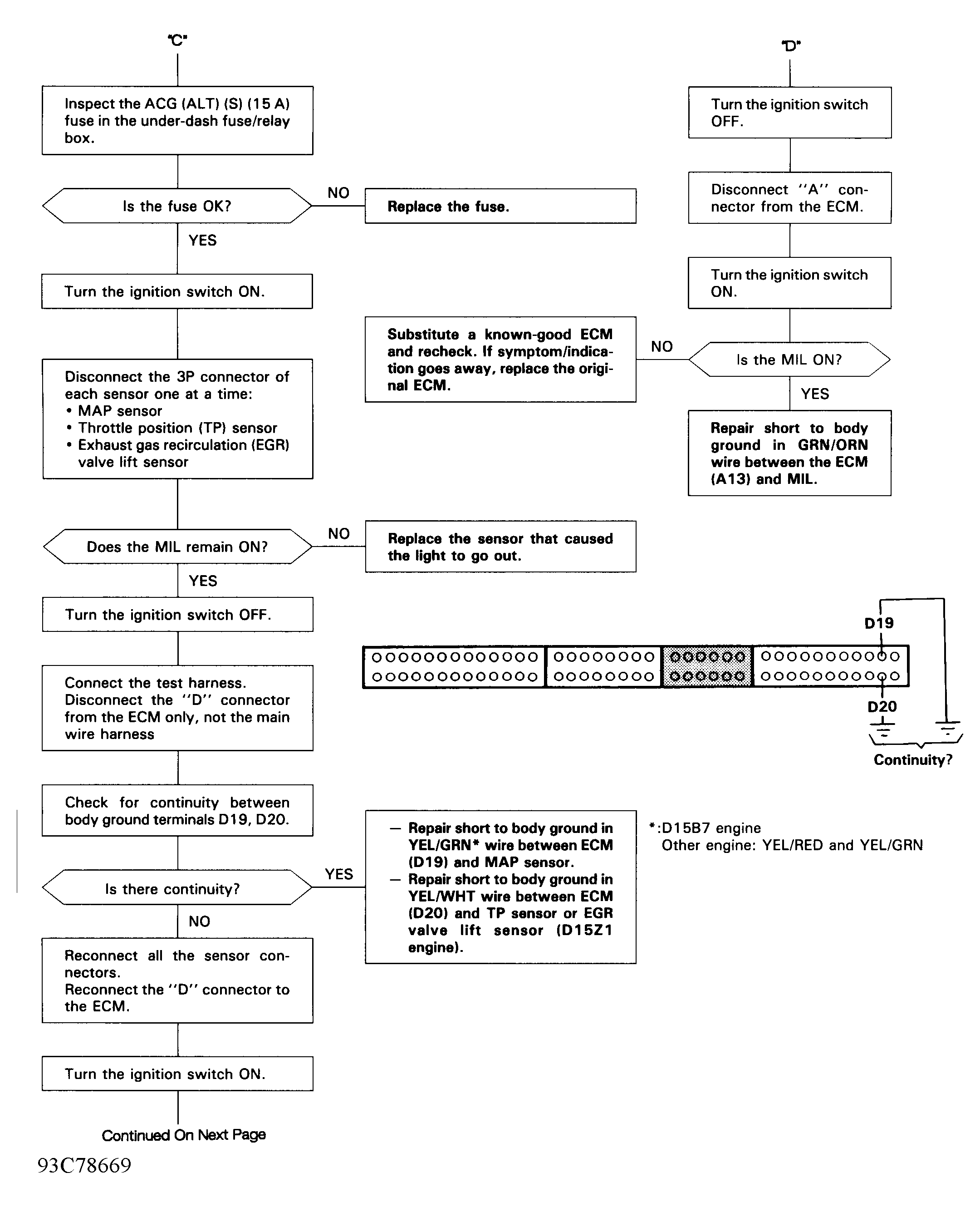

Fig 4: Code/No Code Flow Chart (4 of 5) Code/No Code - No Start Trouble Shooting
G93C78669

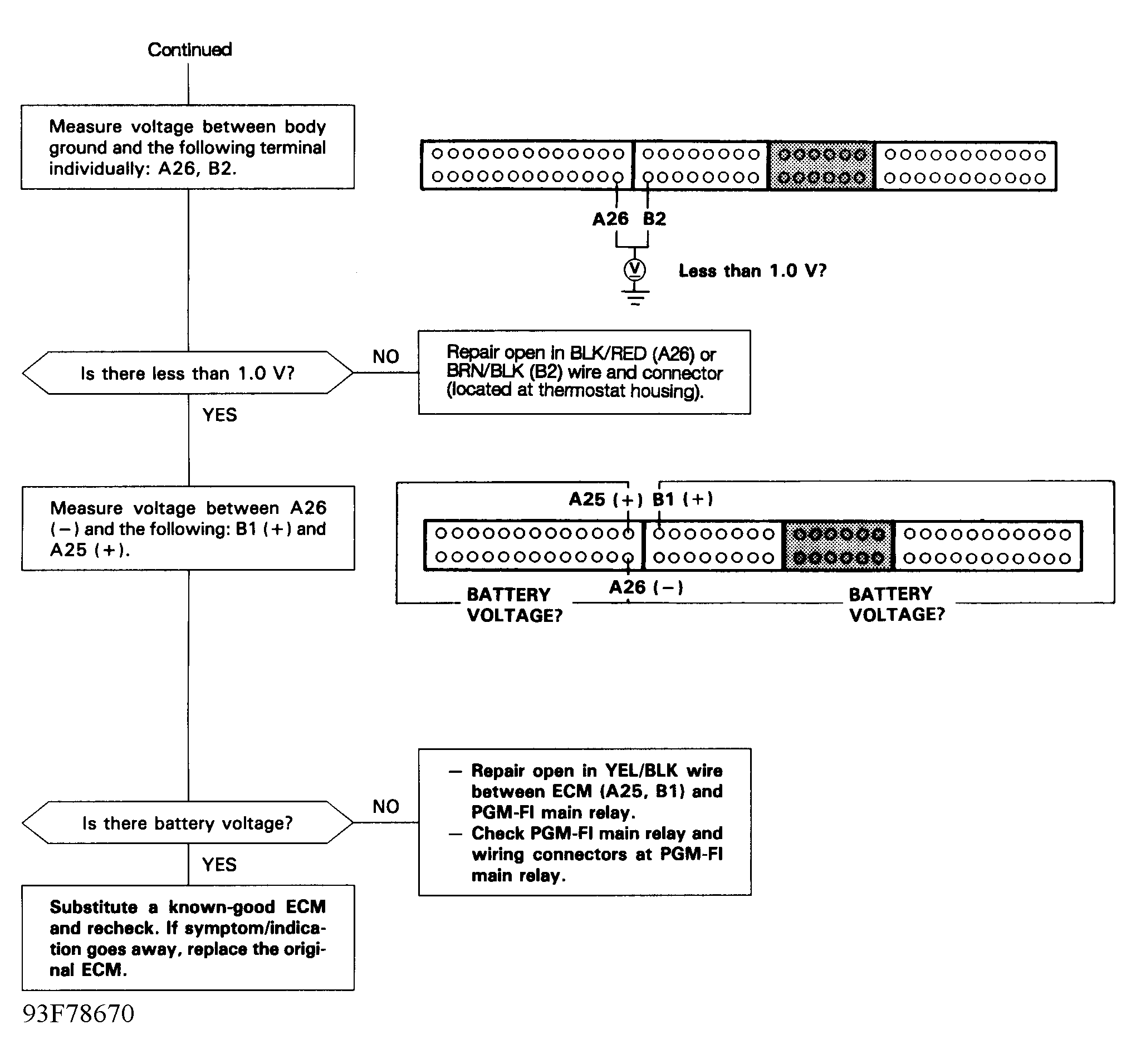

Fig 5: Code/No Code Flow Chart (5 of 5) Code/No Code - No Start Trouble Shooting
G93F78670
