Wiper Motor Test

WARNING: This page is about a different car, the 1996 Honda Civic del Sol and 1995 Honda Civic del Sol. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect wiper motor 5-pin connector. Using jumper wires, connect positive battery lead to pin No. 4 (Green/Black wire) and negative battery lead to pin No. 2 (Blue wire) at wiper motor connector. Ensure wiper motor operates on low speed. See Fig 1 .
  2. Using jumper wires, connect positive battery lead to pin No. 4 (Green/Black wire) and negative battery lead to pin No. 1 (Blue/Yellow wire) at wiper motor connector. Wiper motor should operate on high speed. Replace wiper motor if it fails to run smoothly. See Fig 1 .
  3. Connect analog voltmeter between pins No. 3 (Black wire) and No. 5 (Blue/White wire). Replace wiper motor if 0 - 4 volts is not indicated alternately with wiper motor running.

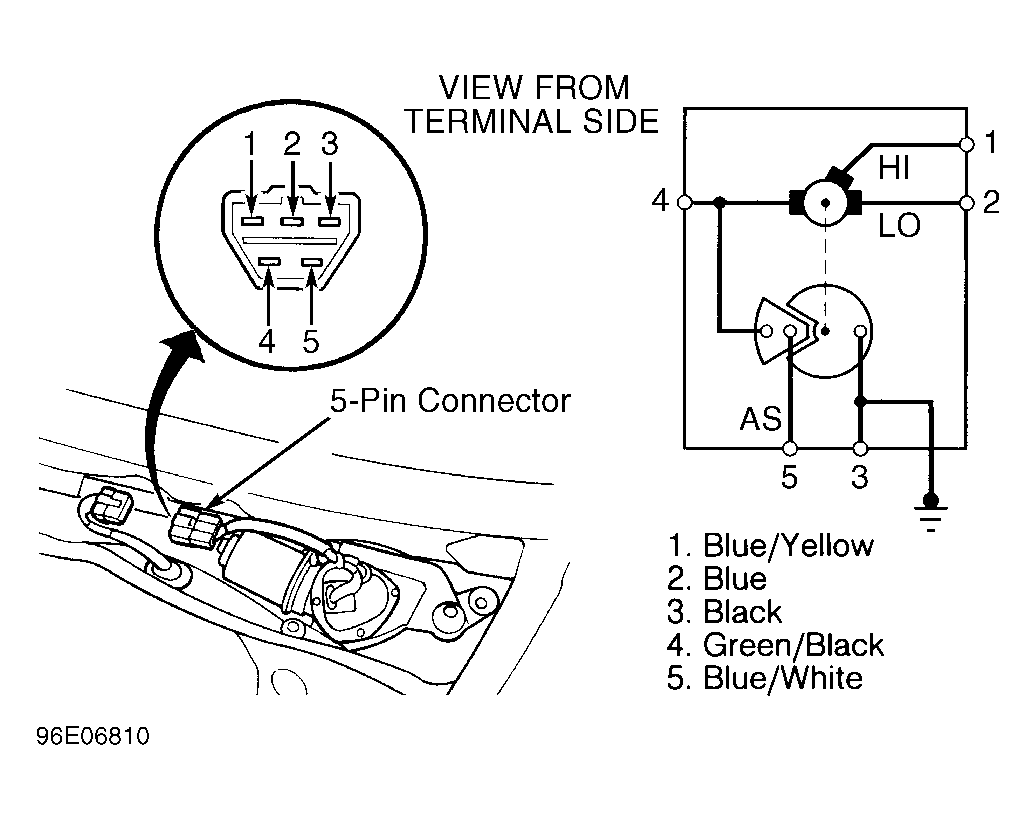

Fig 1: Identifying Wiper Motor Connector
G96E06810Courtesy of AMERICAN HONDA MOTOR CO., INC.
