Wiper/Washer Switch Test

WARNING: This page is about a different car, the 1996 Honda Civic del Sol and 1995 Honda Civic del Sol. However, it is still accessible from the selected car via links, so may be relevant.

Remove steering column cover. Disconnect 8-pin connector from wiper/washer switch. Check continuity between specified terminals with switch in indicated positions. See Fig 1 . If continuity is not as specified, replace wiper/washer switch.

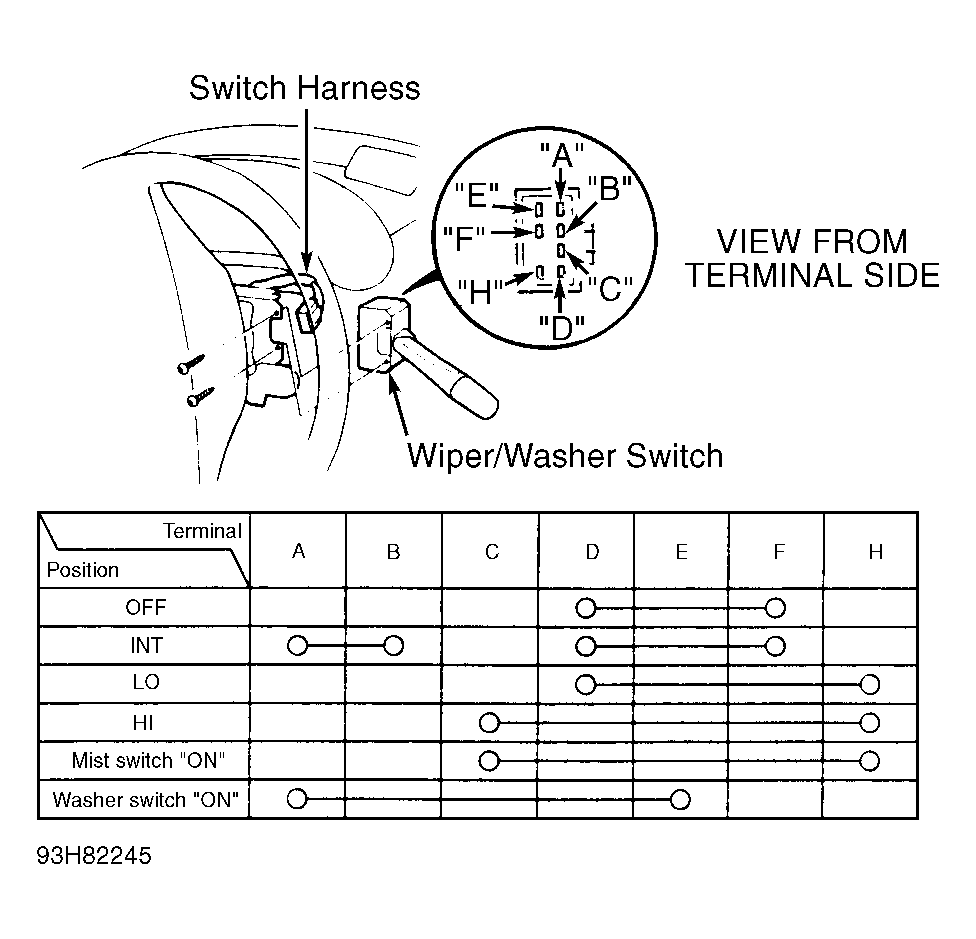

Fig 1: Testing Wiper/Washer Switch
G93H82245Courtesy of AMERICAN HONDA MOTOR CO., INC.
