Code 43 - Fuel Supply System
Code 43 - Fuel Supply System

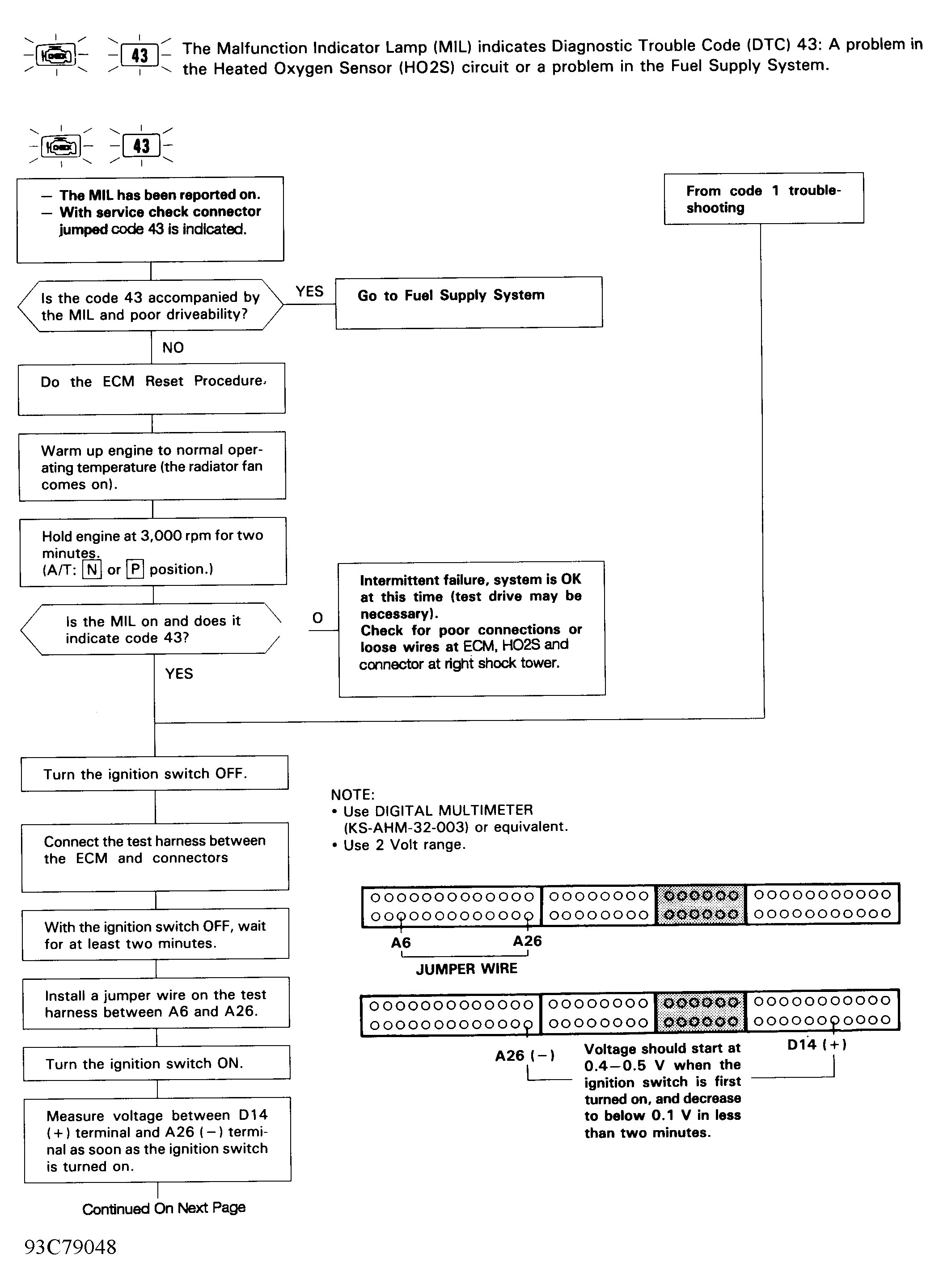

Fig 1: Code 43 Flow Chart (1 Of 2) Fuel Supply System

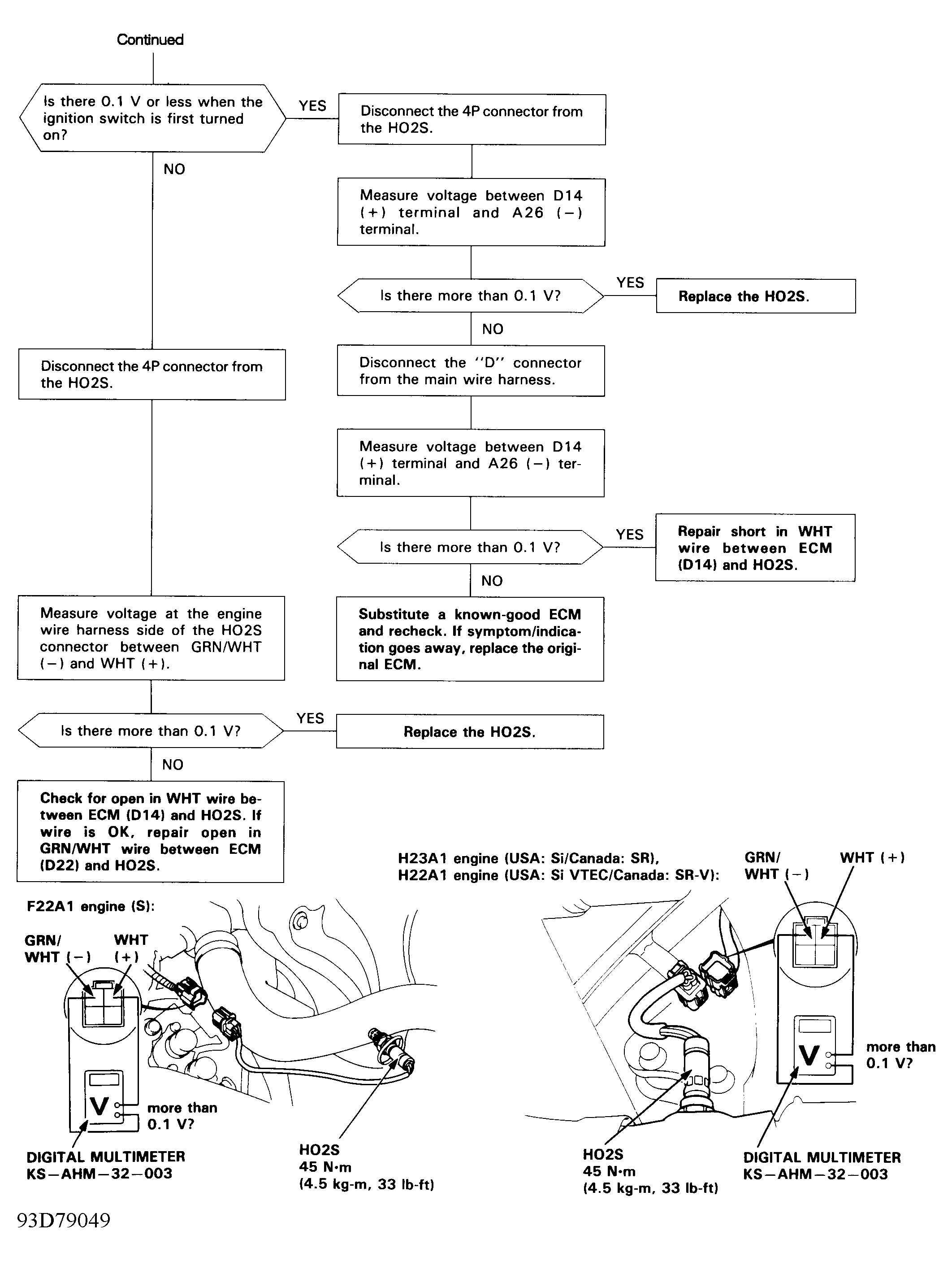

Fig 2: Code 43 Flow Chart (1 Of 2) Fuel Supply System
