Rear Window Defogger Timer Circuit

For connector terminal identification, see Figure . For input test, see Fig 1 .

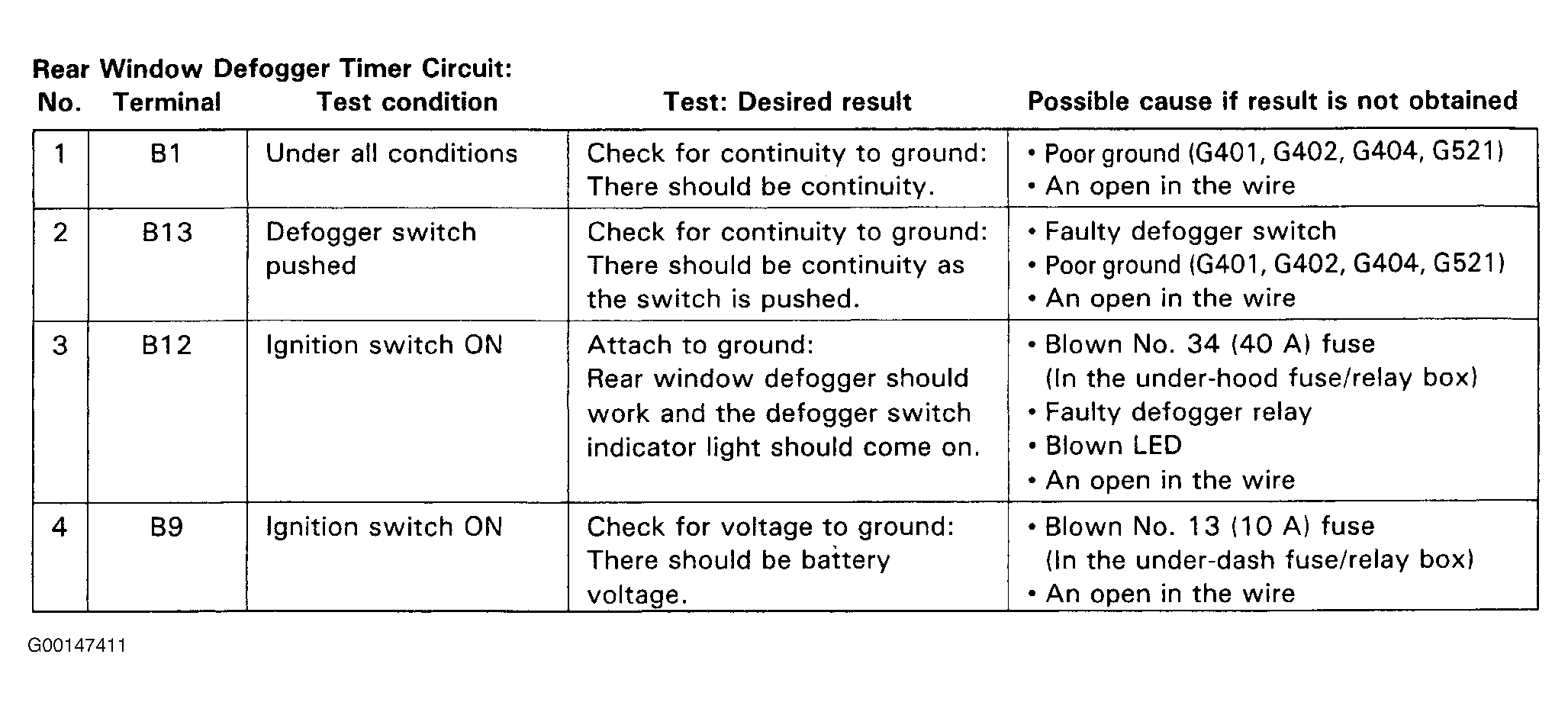

Fig 1: Rear Window Defogger Timer Circuit Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
