Component Locations

COMPONENT LOCATIONS

Component Location
Chime Module Under Driver's Side Of Instrument Panel. See Fig 1 .
Engine Compartment Fuse/Relay Block In Passenger's Rear Corner Of Engine Compartment, Behind Strut Tower. See Fig 2 .
Integrated Control Unit Behind Passenger Compartment Fuse/Relay Block. See Fig 3 .
Oil Pressure Switch Below Oil Filter.
Passenger Compartment Fuse/Relay Block Behind Driver's Side Kick Panel. See Fig 3 .
Seat Belt Switch In Driver's Seat Belt Buckle Assembly.
G201 Passenger's Side Front Corner Of Engine Compartment. See Fig 4 .
G301 Driver's Side Front Corner Of Engine Compartment. See Fig 5 .
G401 Behind Passenger's Side Of Instrument Panel. See Fig 6 .
G402 Under Center Of Instrument Panel. See Fig 6 .
G404 Under Center Of Instrument Panel. See Fig 6 .
G521 Under Driver's Seat. See Fig 7 .
G522 Behind Driver's Side Rear Quarter Trim Panel. See Fig 7 .
Fig 1: Locating Chime Module
G00078240Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Locating Engine Compartment Fuse/Relay Block
G93H27562Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Locating Integrated Control Unit & Passenger Compartment Fuse/Relay Block
G93F27560Courtesy of AMERICAN HONDA MOTOR CO., INC.

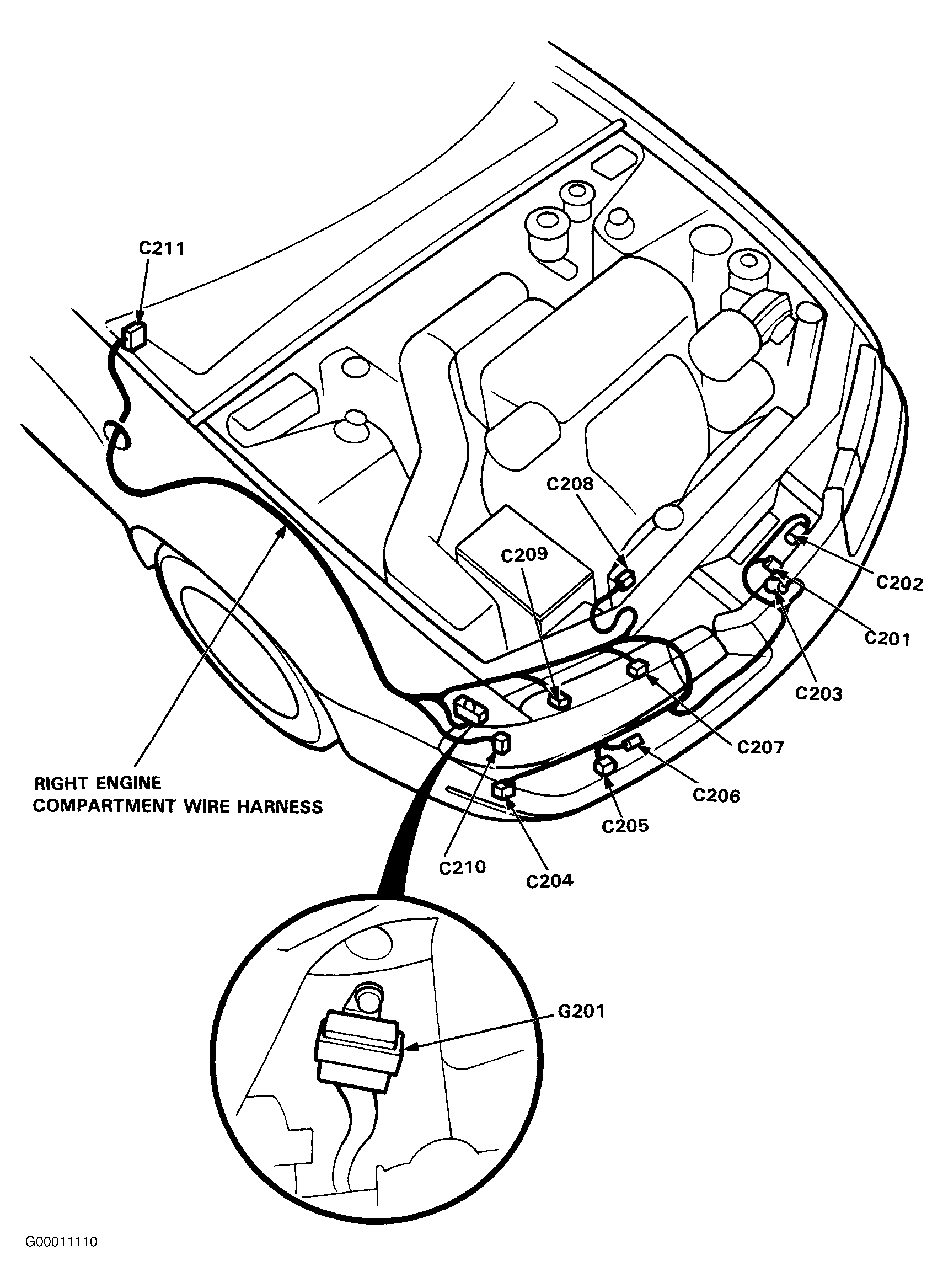

Fig 4: Locating Ground G201
G00011110Courtesy of AMERICAN HONDA MOTOR CO., INC.

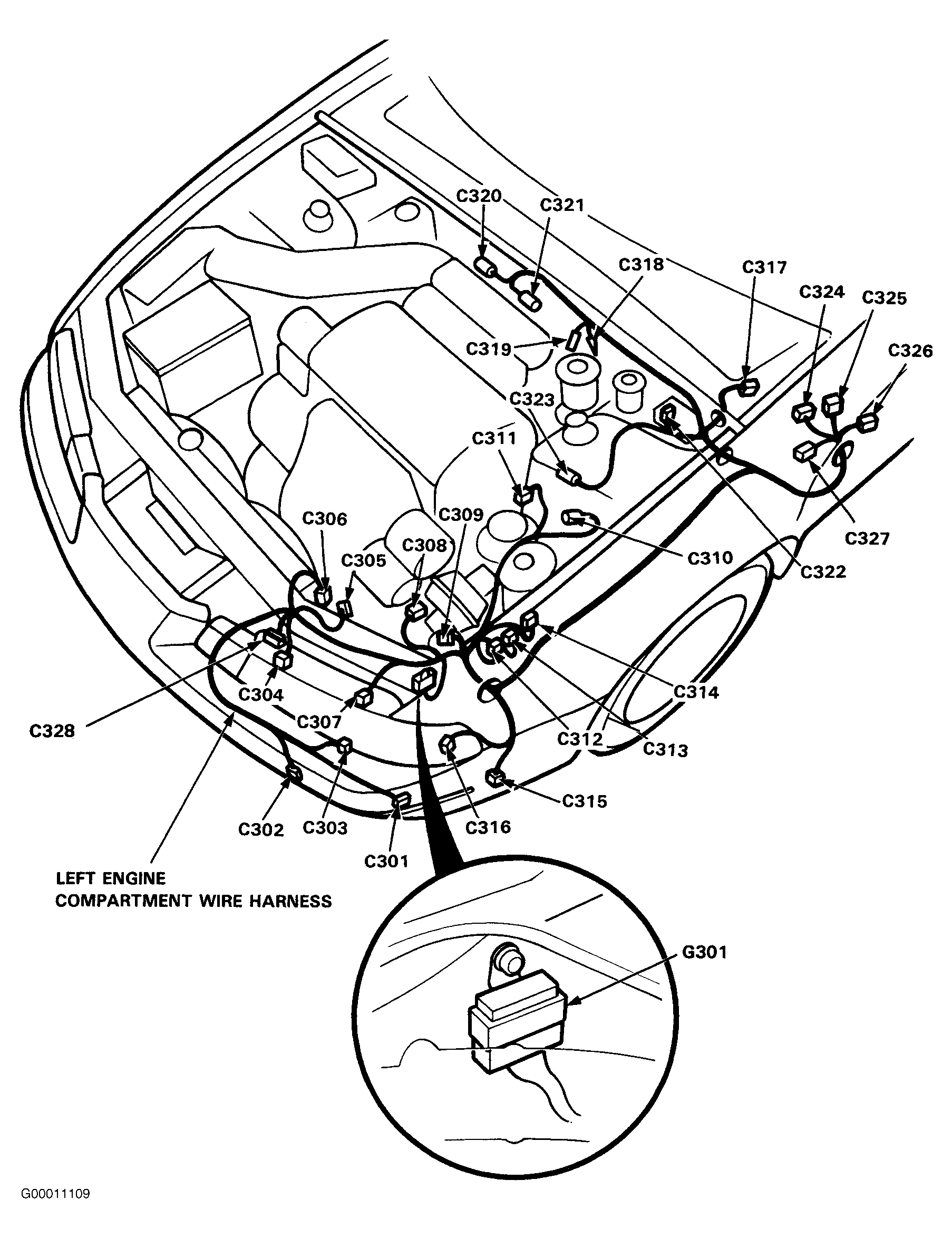

Fig 5: Locating Ground G301
G00011109Courtesy of AMERICAN HONDA MOTOR CO., INC.

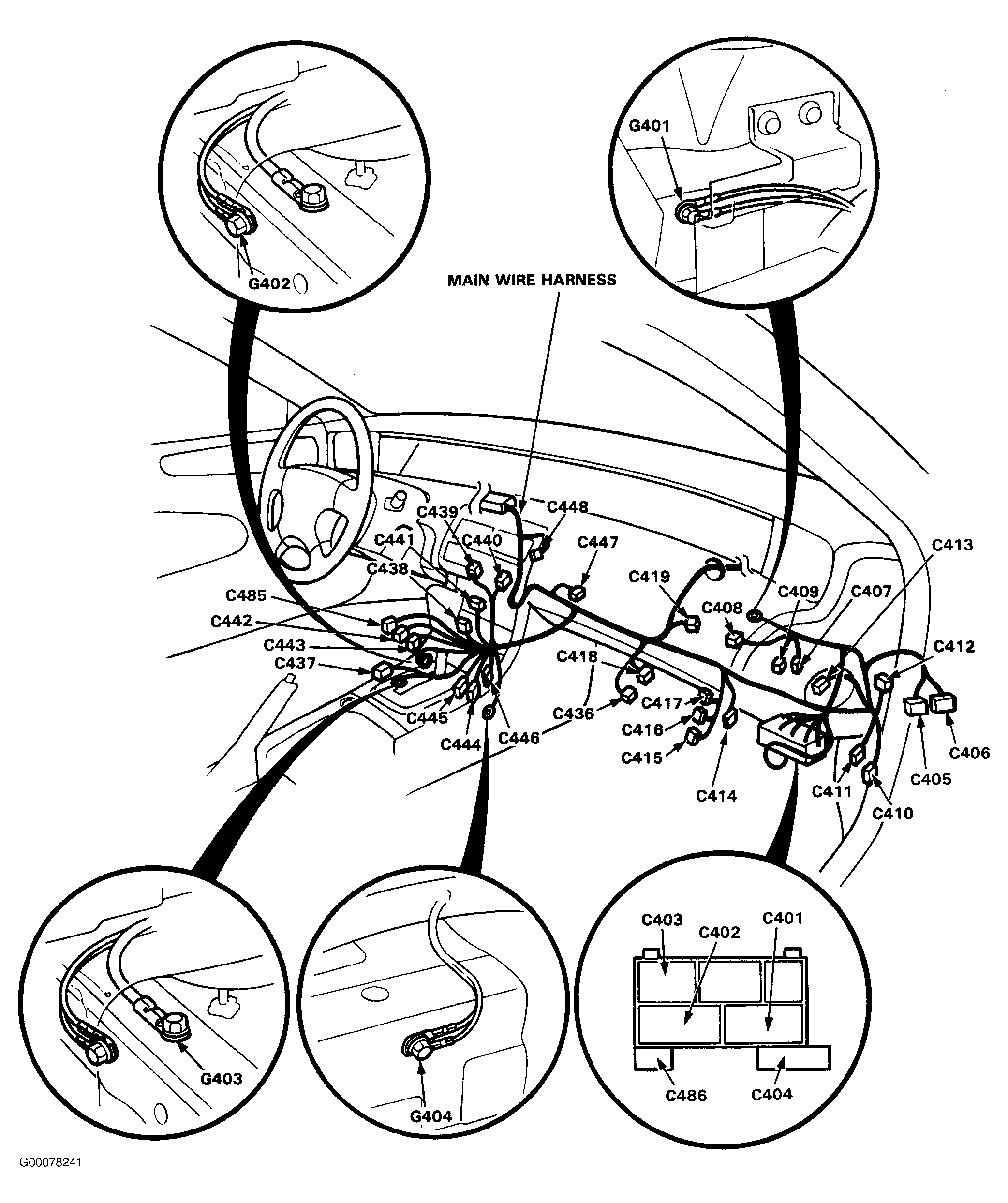

Fig 6: Locating Grounds G401, G402 & G404
G00078241Courtesy of AMERICAN HONDA MOTOR CO., INC.

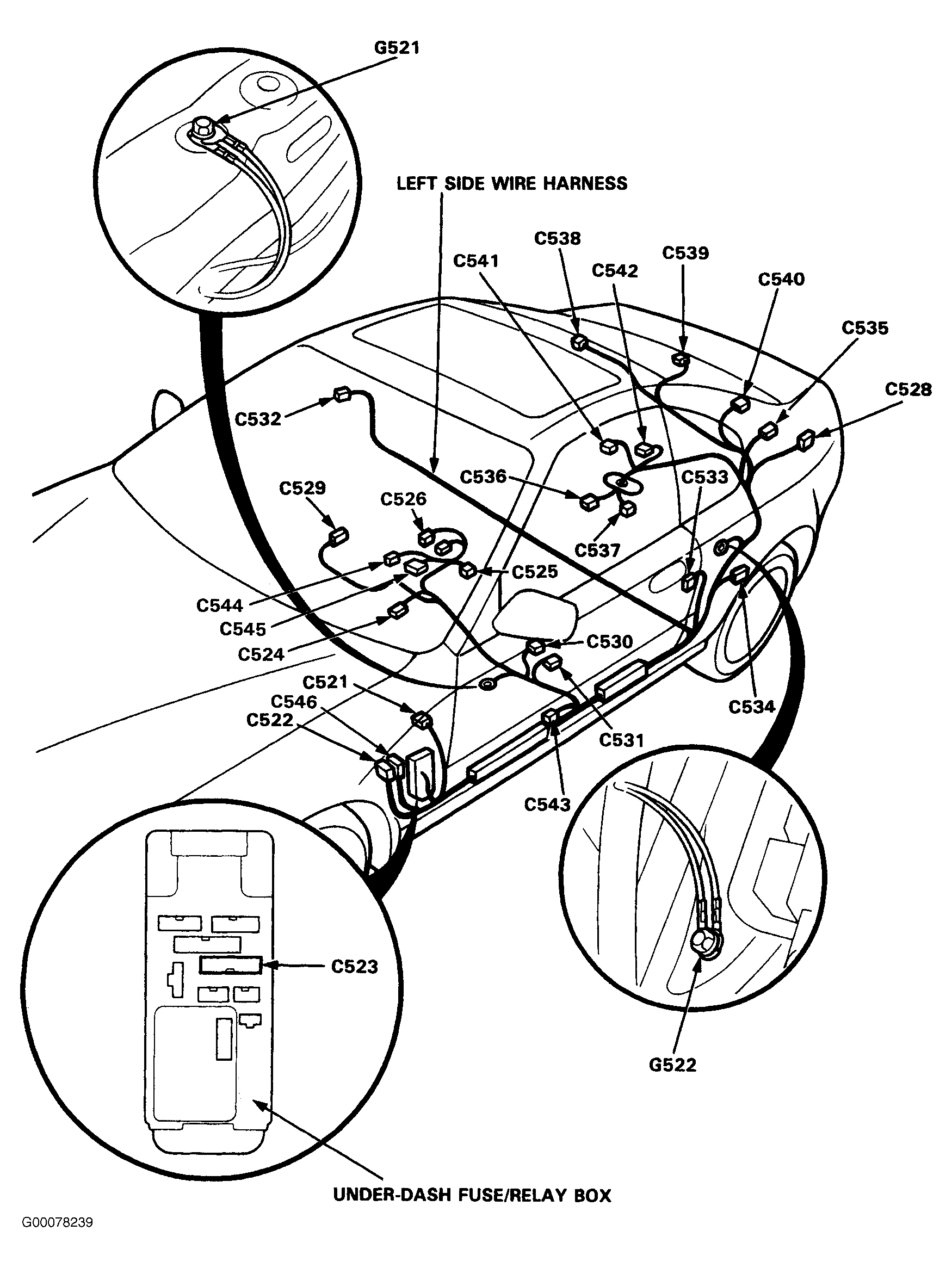

Fig 7: Locating Grounds G521 & G522
G00078239Courtesy of AMERICAN HONDA MOTOR CO., INC.
