Ignition Key Light
Remove the dashboard lower cover and knee bolster.
Disconnect the 8-P connector from the main wire harness. See
Fig 1
.
There should be no continuity between "A" and "B" terminals. If there is no continuity, replace the light.

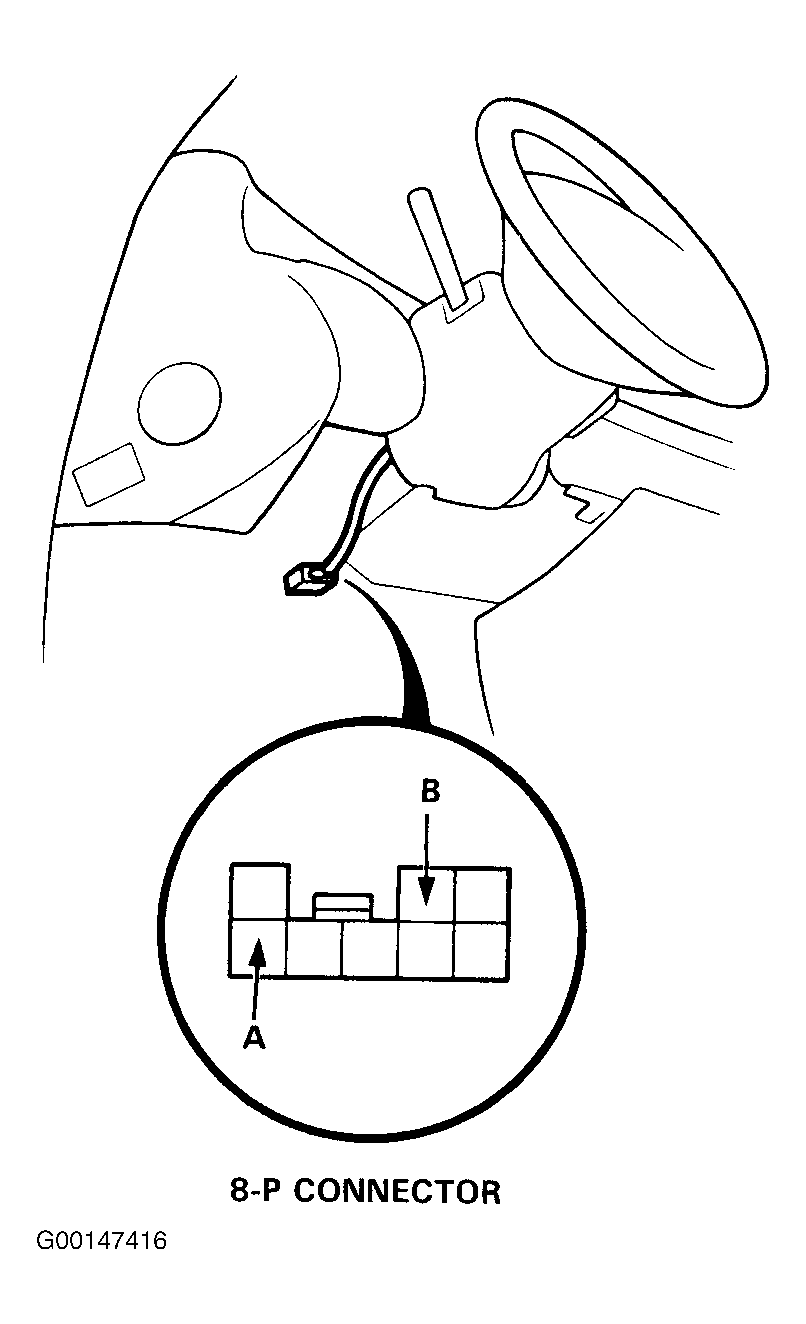

Fig 1: Locating 8-P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
