Code 22 - VTEC Pressure Switch Circuit

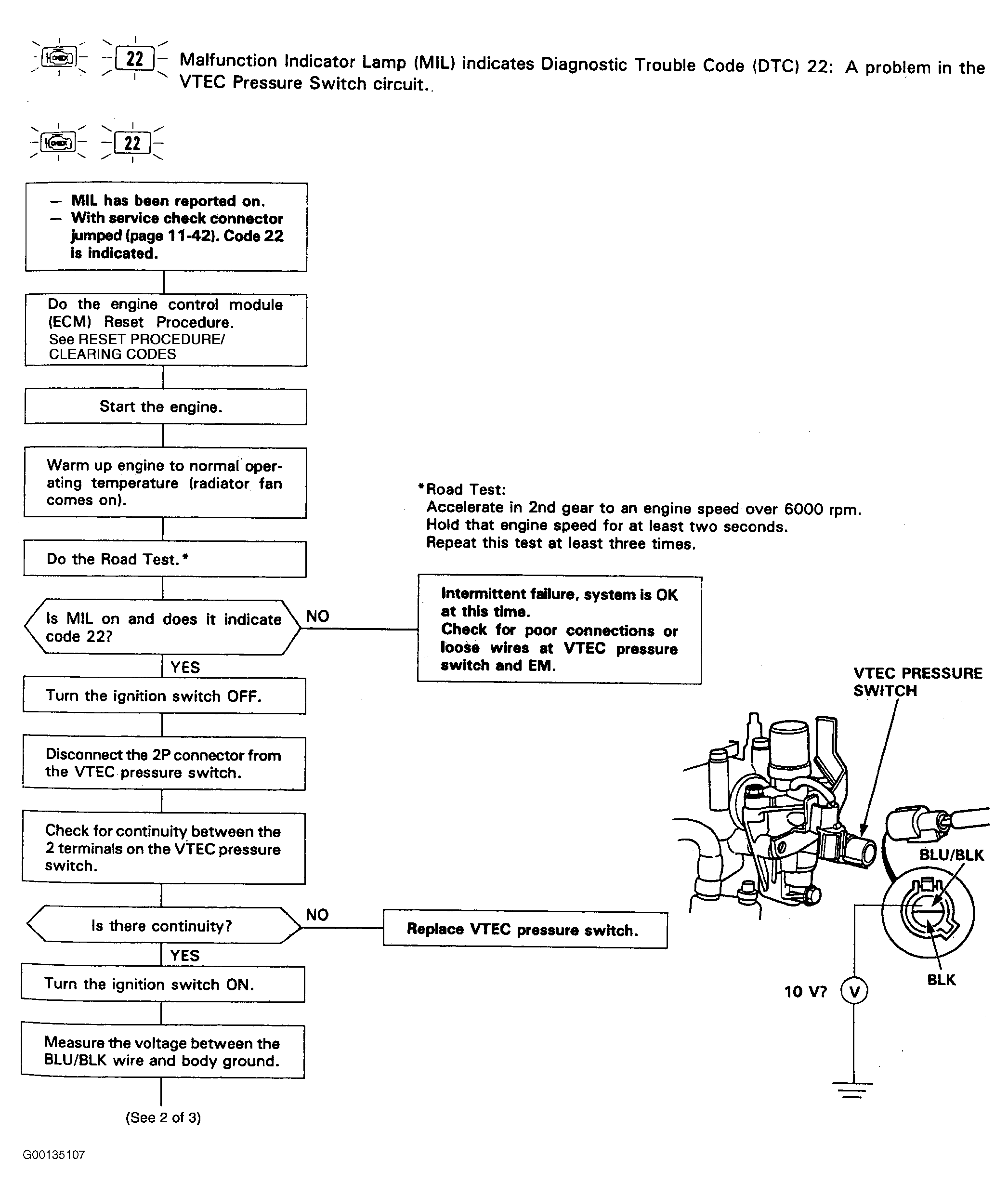

Fig 1: Code 22 Flow Chart VTEC Presure Switch Circuit (1 Of 3)
G00135107Courtesy of AMERICAN HONDA MOTOR CO., INC.

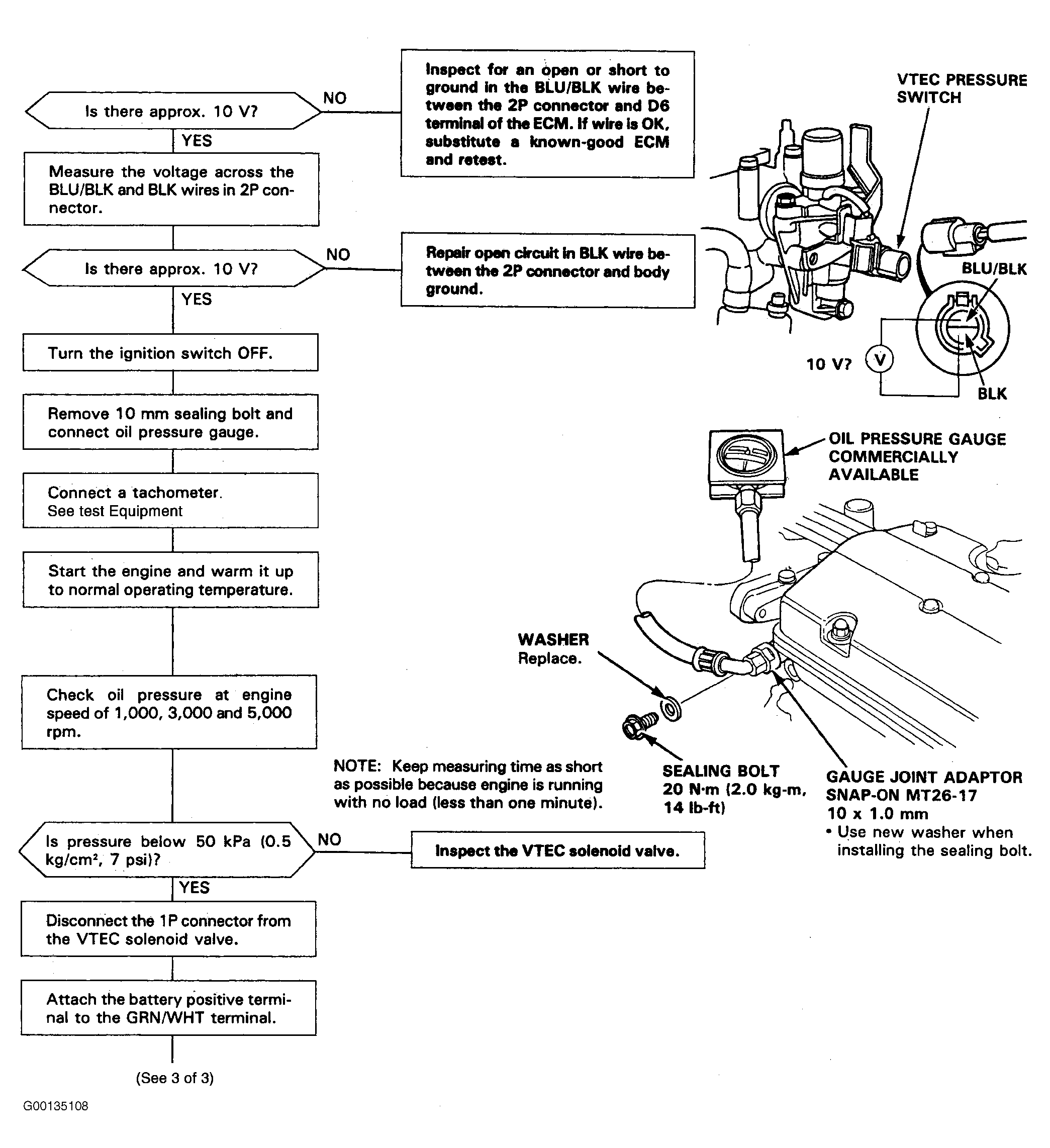

Fig 2: Code 22 Flow Chart VTEC Pressure Switch Circuit (2 Of 3)
G00135108Courtesy of AMERICAN HONDA MOTOR CO., INC.

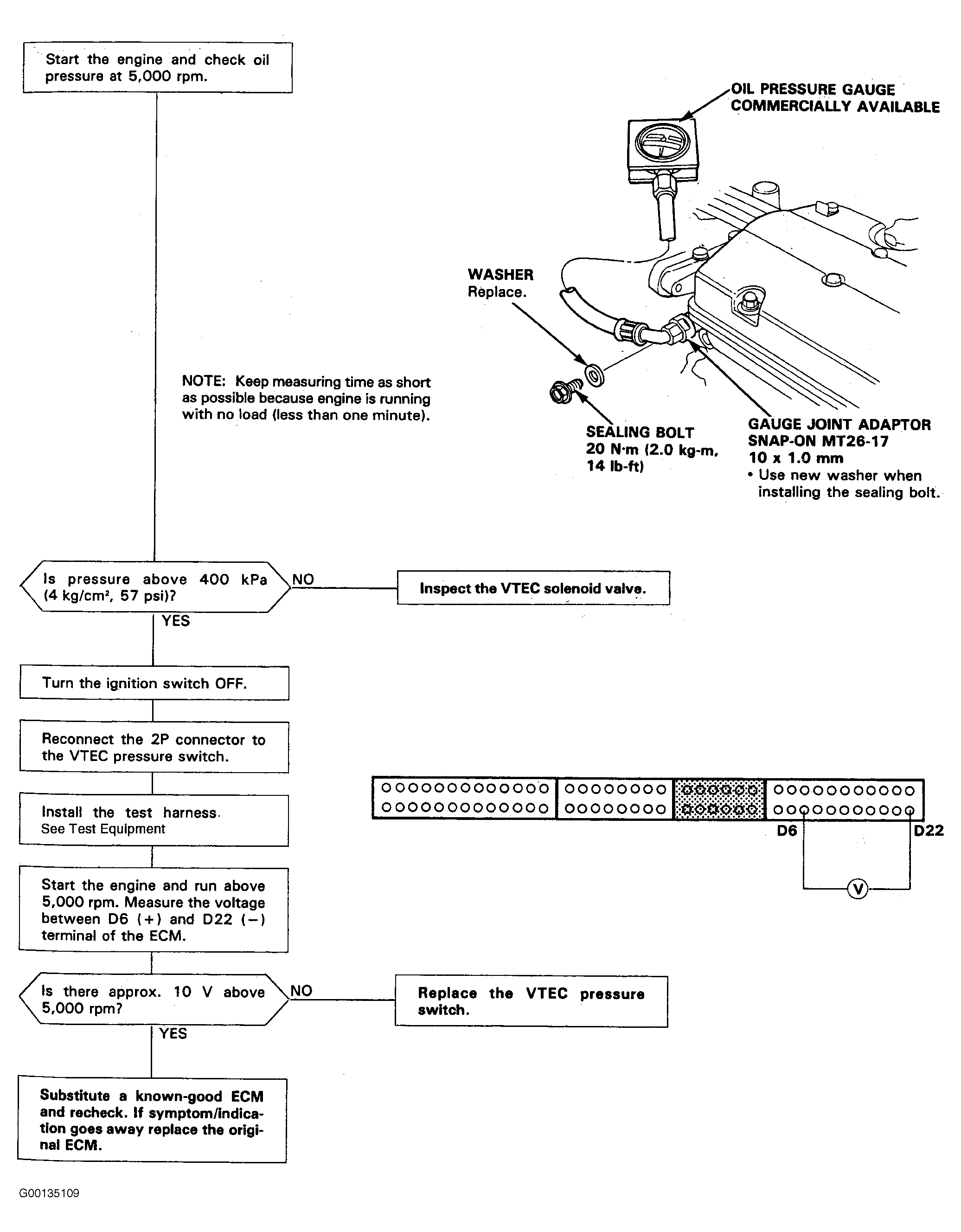

Fig 3: Code 22 Flow Chart VTEC Pressure Switch Circuit (2 Of 3)
G00135109Courtesy of AMERICAN HONDA MOTOR CO., INC.
