Code 23 - Knock Sensor (KS)

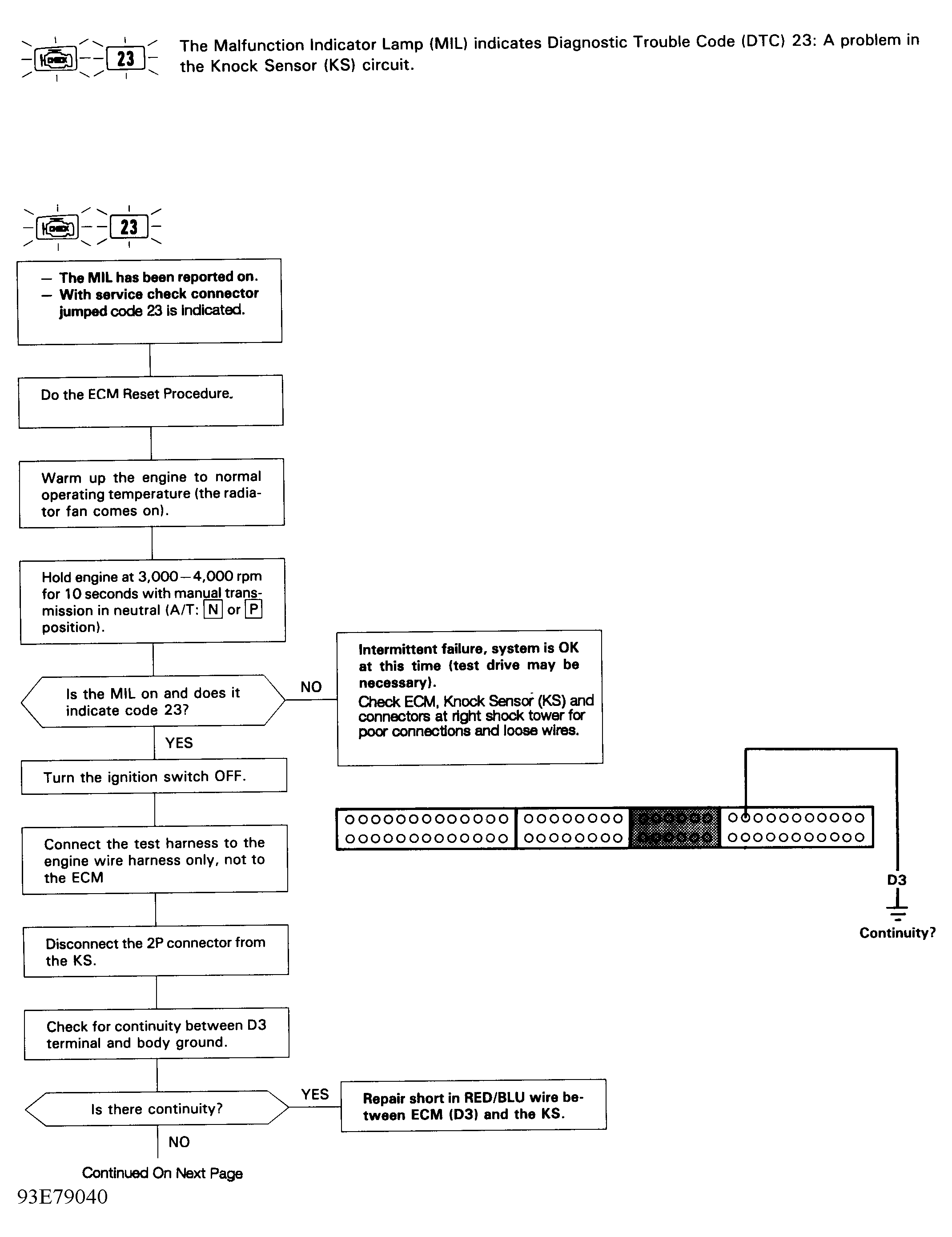

Fig 1: Code 23 Flow Chart (1 Of 2) Knock Sensor (KS)

G93E79040

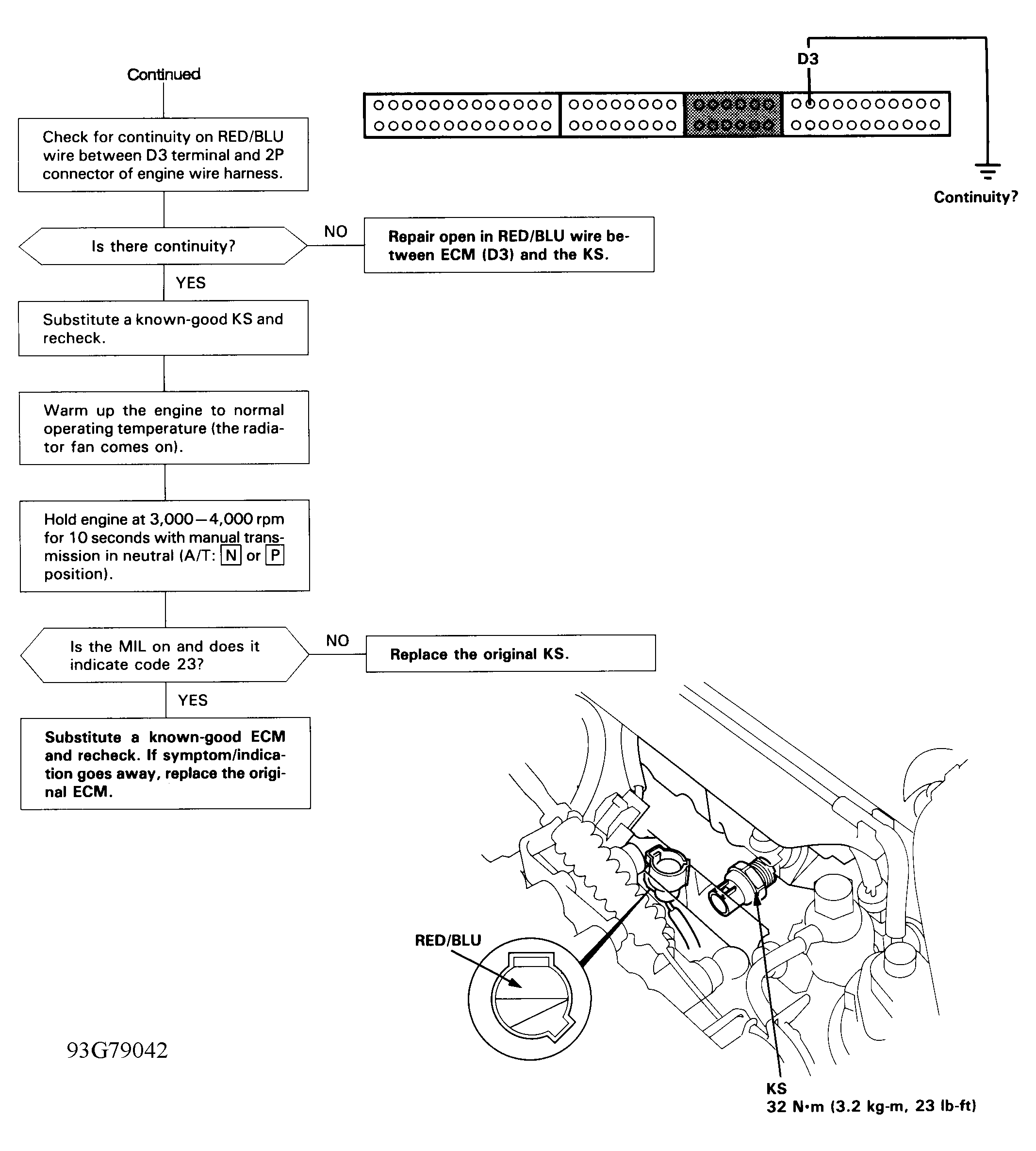

Fig 2: Code 23 Flow Chart (2 Of 2) Knock Sensor (KS)

G93G79042
