Code 4, 8 And/Or 9 - TDC/CKP/CYP Sensor

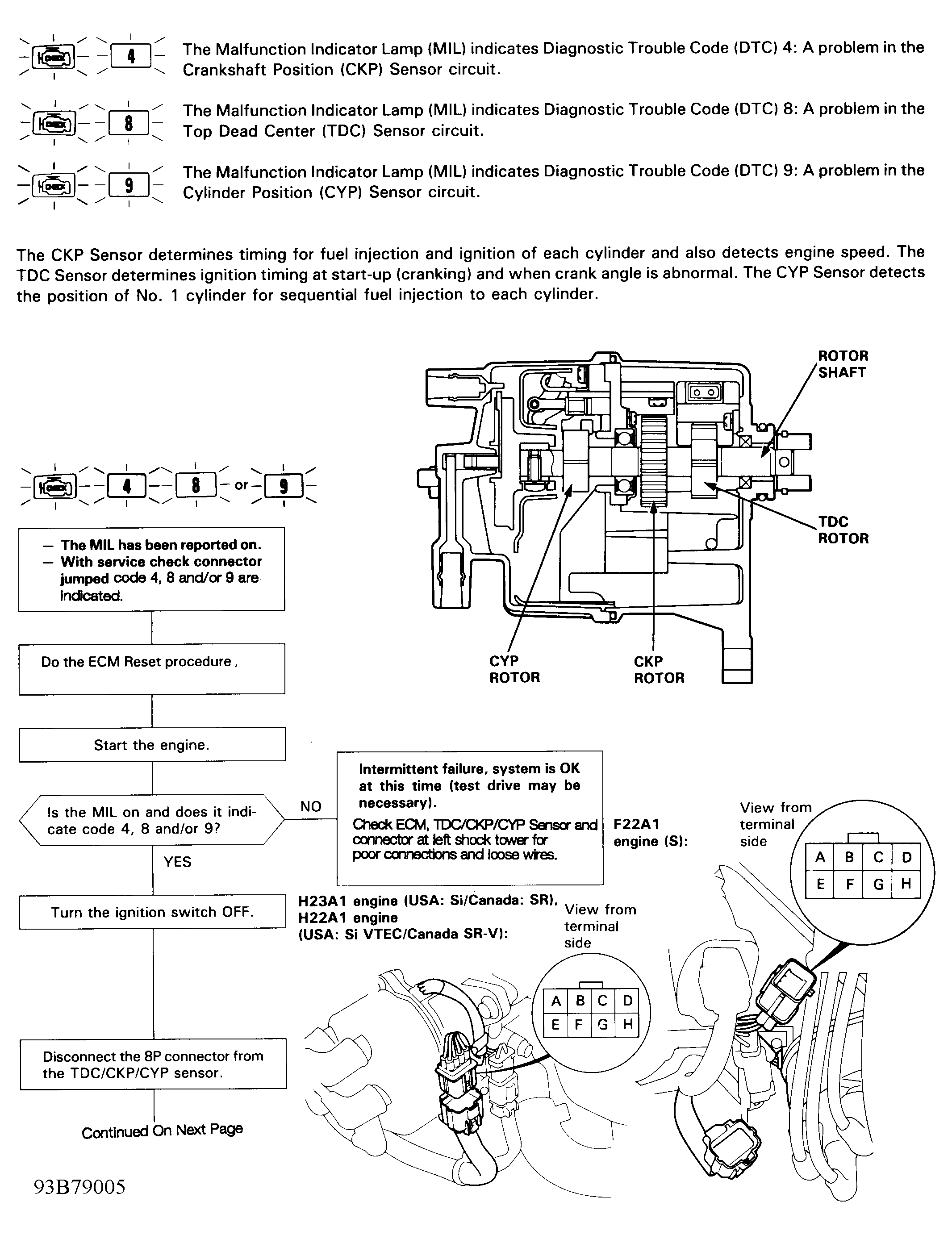

Fig 1: Code 4, 8 AND/OR 9 Flow Chart (1 Of 2) TDC/CKP/CYP Sensor

G93B79005

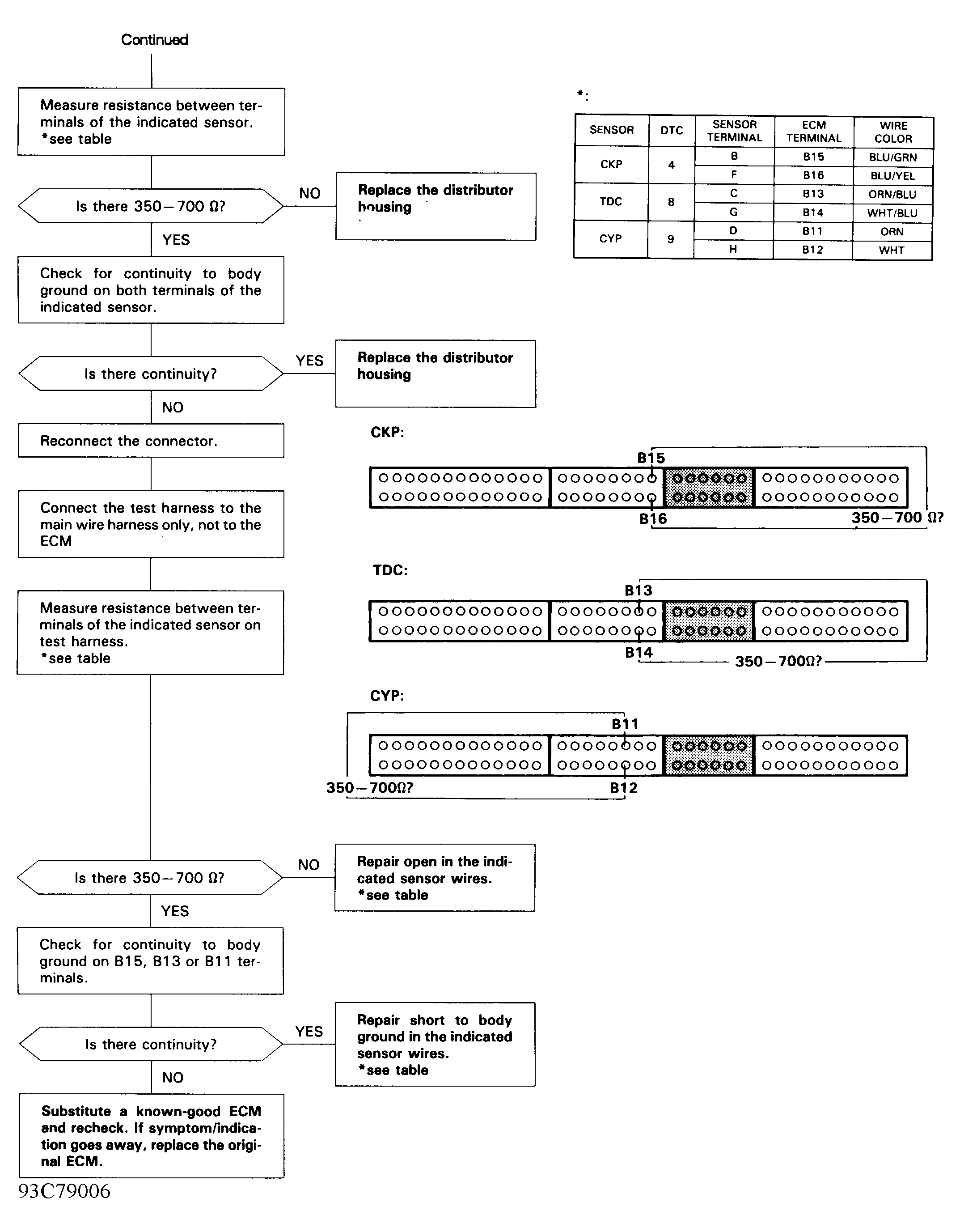

Fig 2: Code 4, 8 AND/OR 9 Flow Chart (2 Of 2) TDC/CKP/CYP Sensor

G93C79006
