Code 5 - Map Sensor Circuit

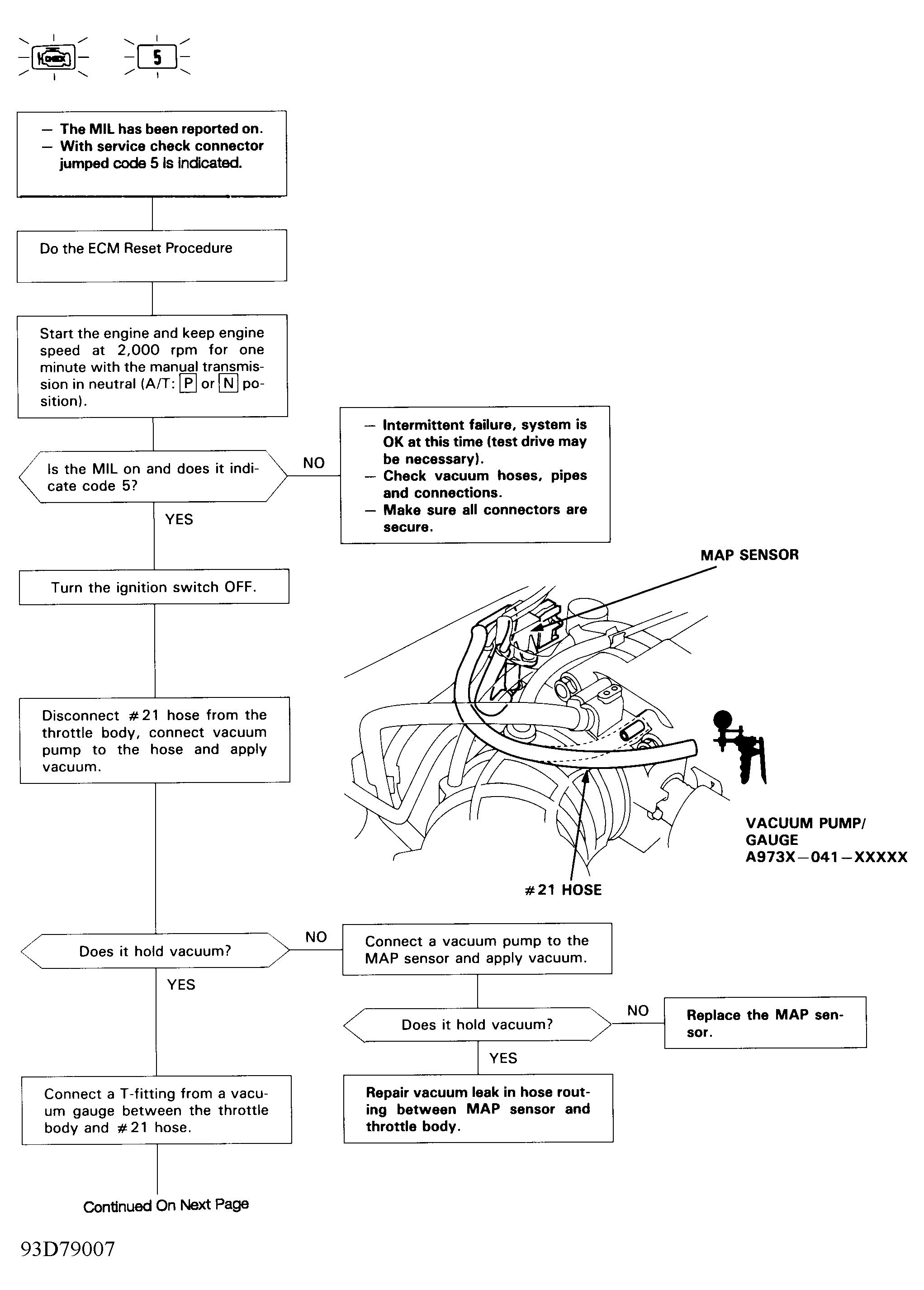

Fig 1: Code 5 Flow Chart (1 Of 2) MAP Sensor Circuit

G93D79007

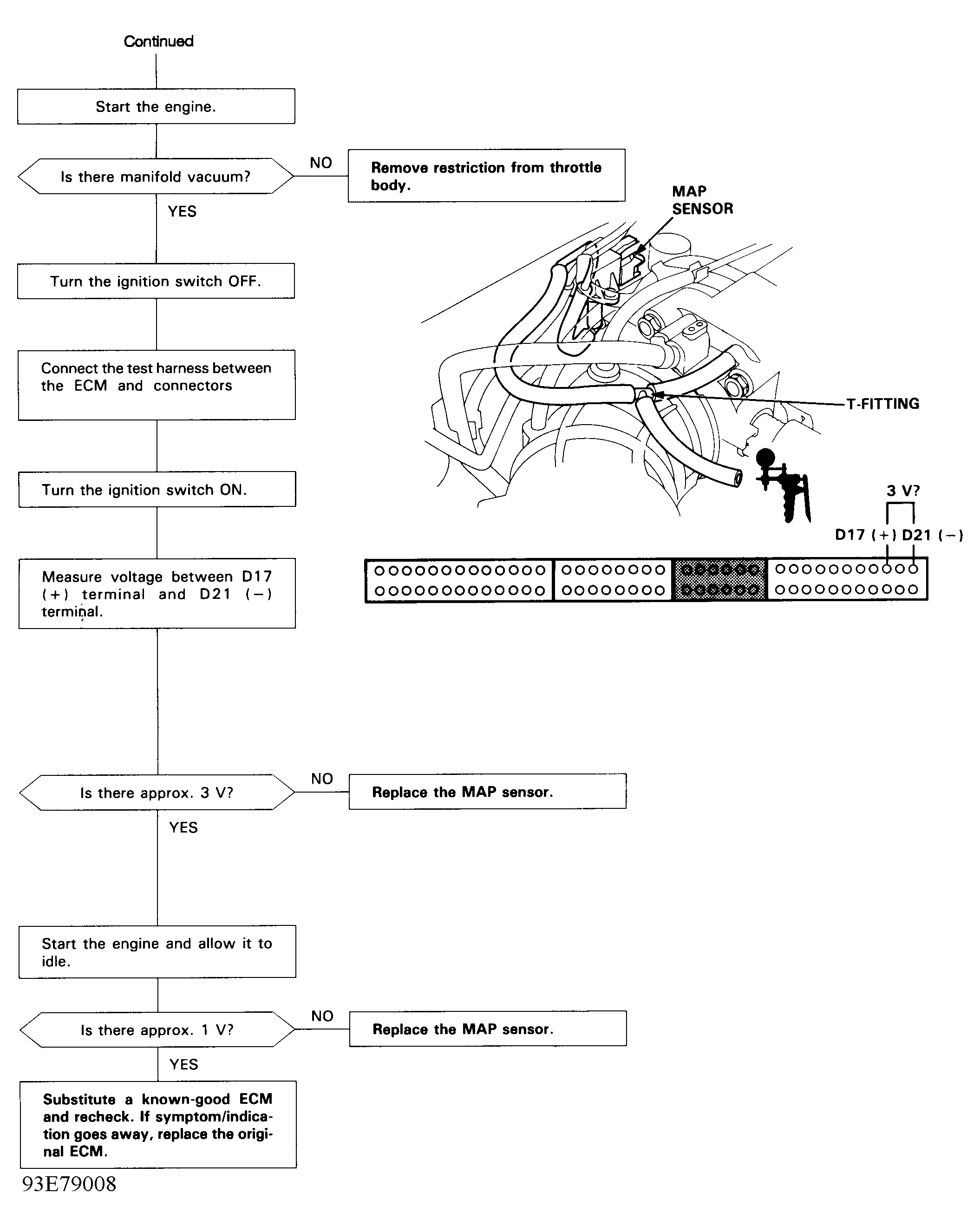

Fig 2: Code 5 Flow Chart (2 Of 2) MAP Sensor Circuit

G93E79008
