Home › Honda › 1994 › Prelude VTEC › Repair and Diagnosis › Engine Performance › System › Engine Controls - Tests W/Codes › Diagnostic Trouble Code Charts › Code 7 - Throttle Position (TP) Sensor

Code 7 - Throttle Position (TP) Sensor

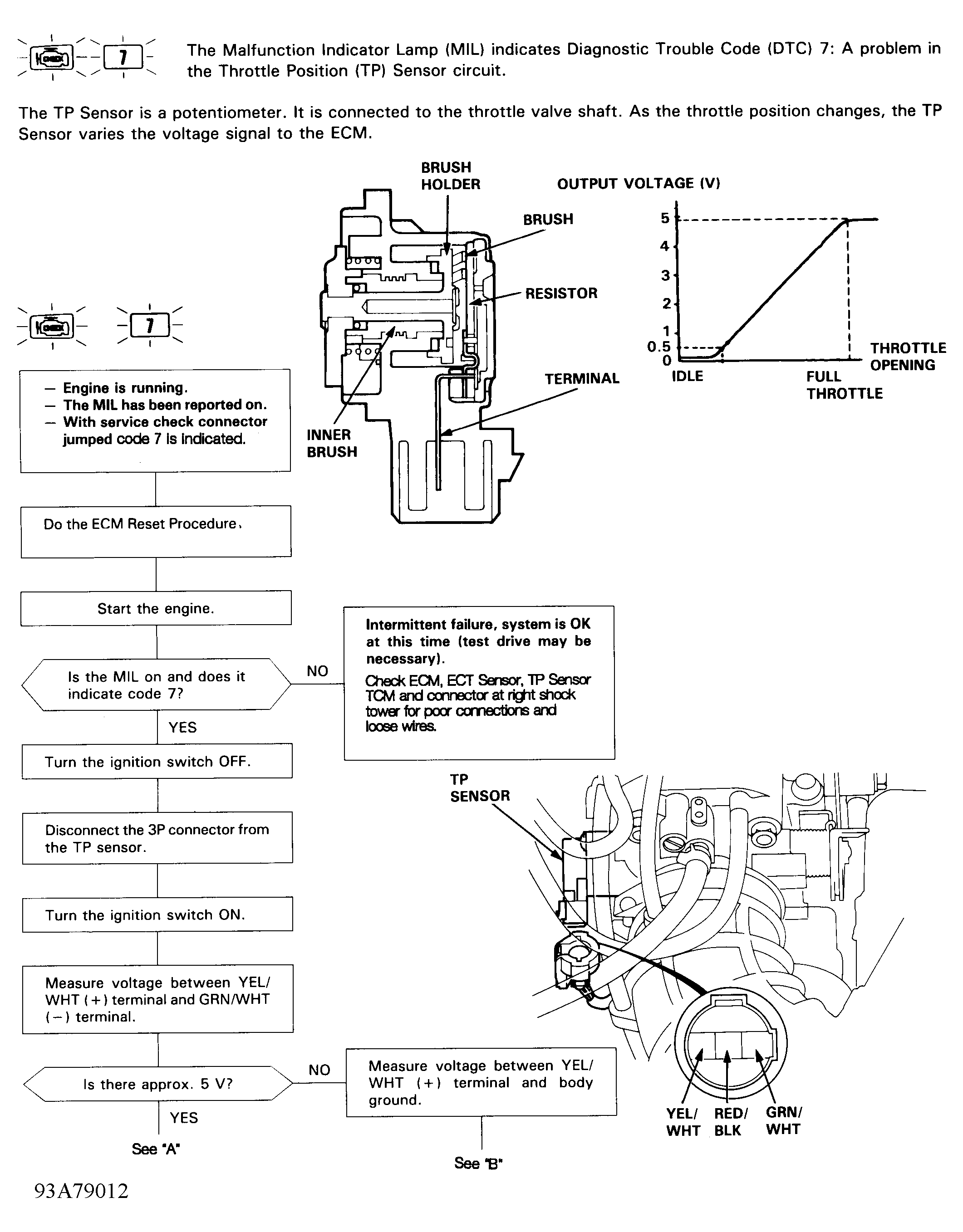

Fig 1: Code 7 Flow Chart (1 Of 2) Throttle Position (TP) Sensor

G93A79012

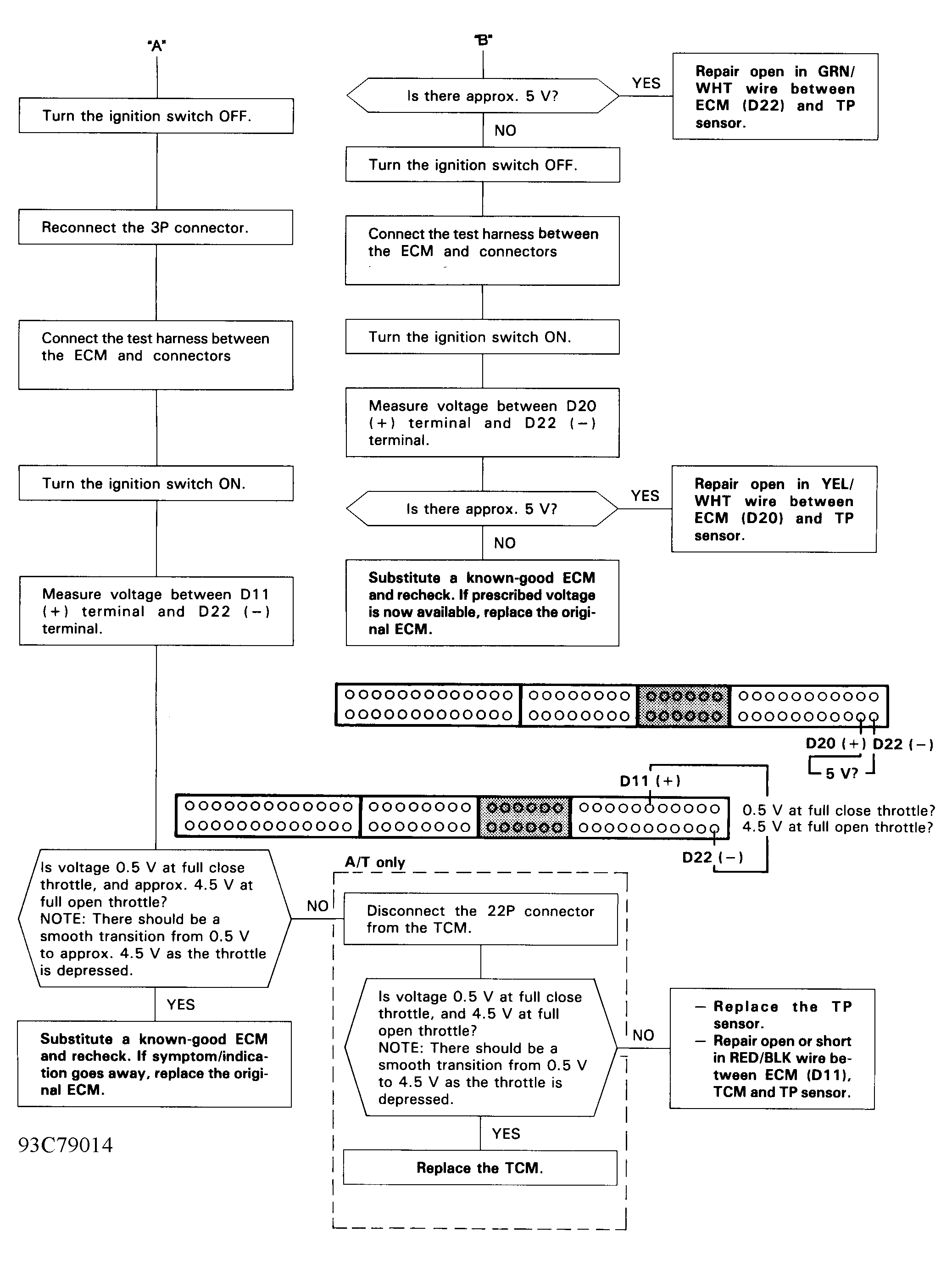

Fig 2: Code 7 Flow Chart (2 Of 2) Throttle Position (TP) Sensor

G93C79014
