Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Under-Dash Fuse/Relay Box | Behind left kick panel. |

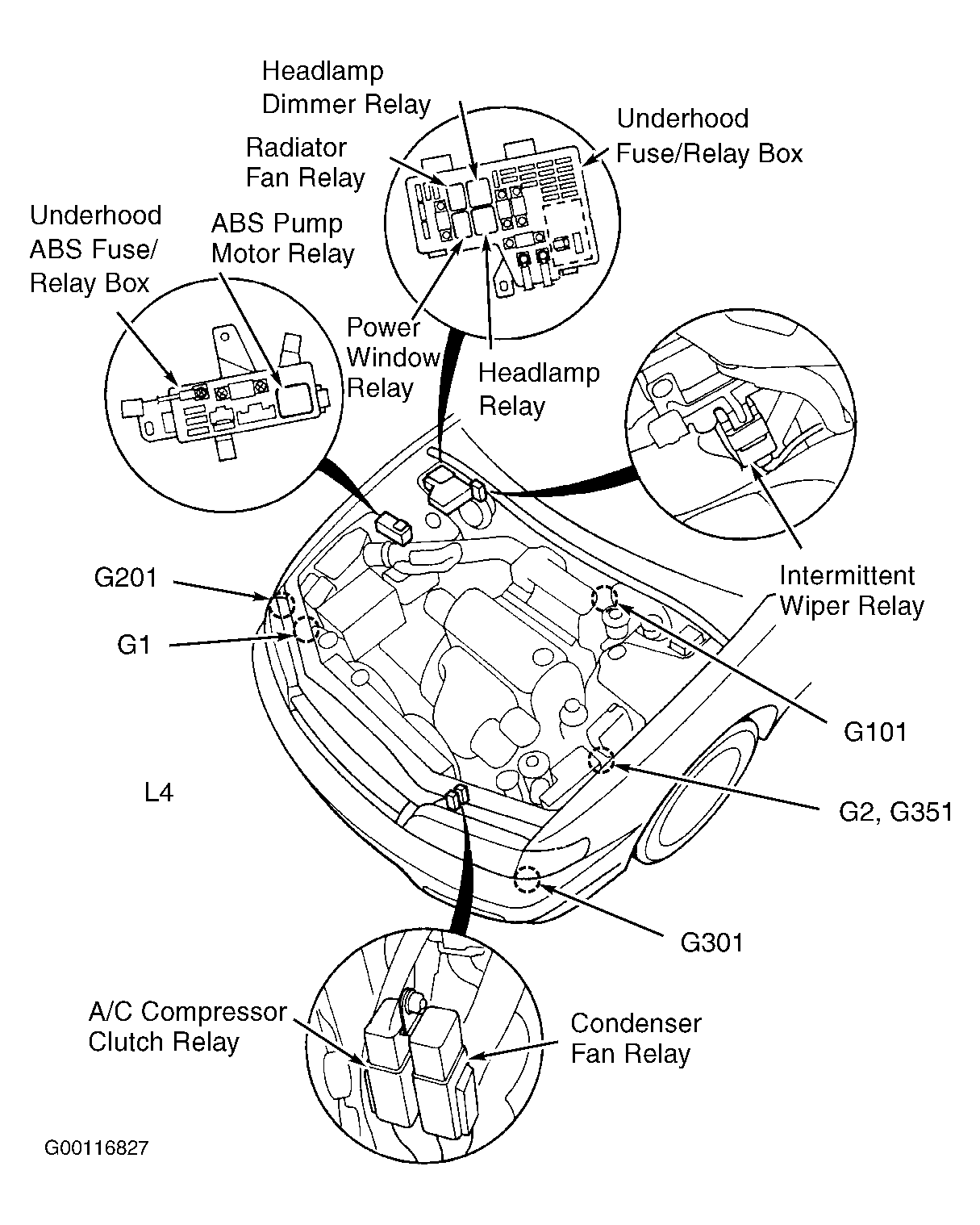

| Under-Hood ABS Fuse/Relay Box (2.2L) | On right side of engine compartment, on strut tower. See Figure . |

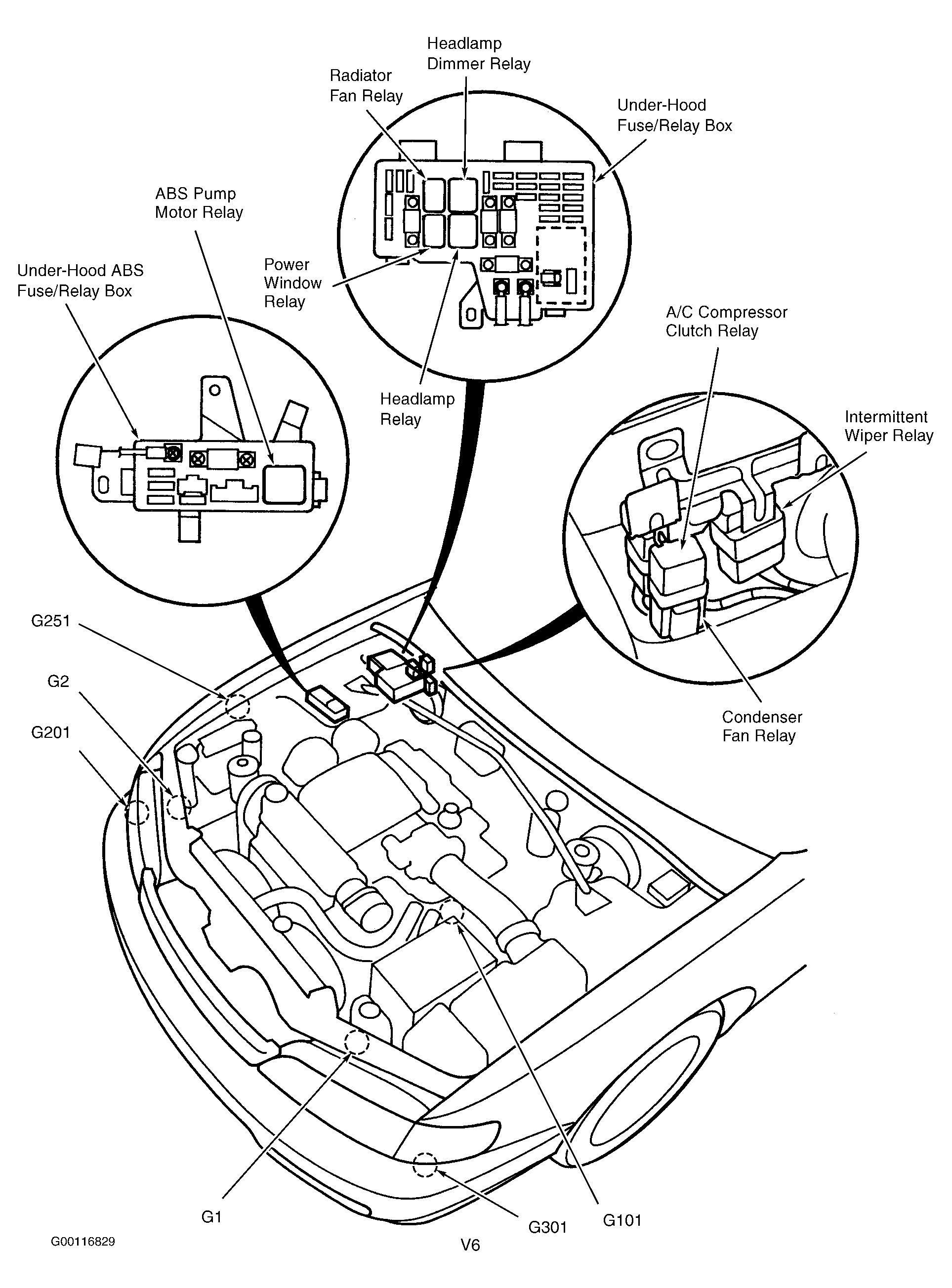

| Under-Hood ABS Fuse/Relay Box (2.7L) | On right side of engine compartment, on strut tower. See Figure . |
| Under-Hood Fuse/Relay Box (2.2L) | On right rear corner of engine compartment, behind strut tower. See Figure . |
| Under-Hood Fuse/Relay Box (2.7L) | On right rear corner of engine compartment, behind strut tower. See Figure . |
