Wiper System

WARNING: This page is about a different car, the 1996 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

For connector terminal identification see Figure . For input test see Fig 1 .

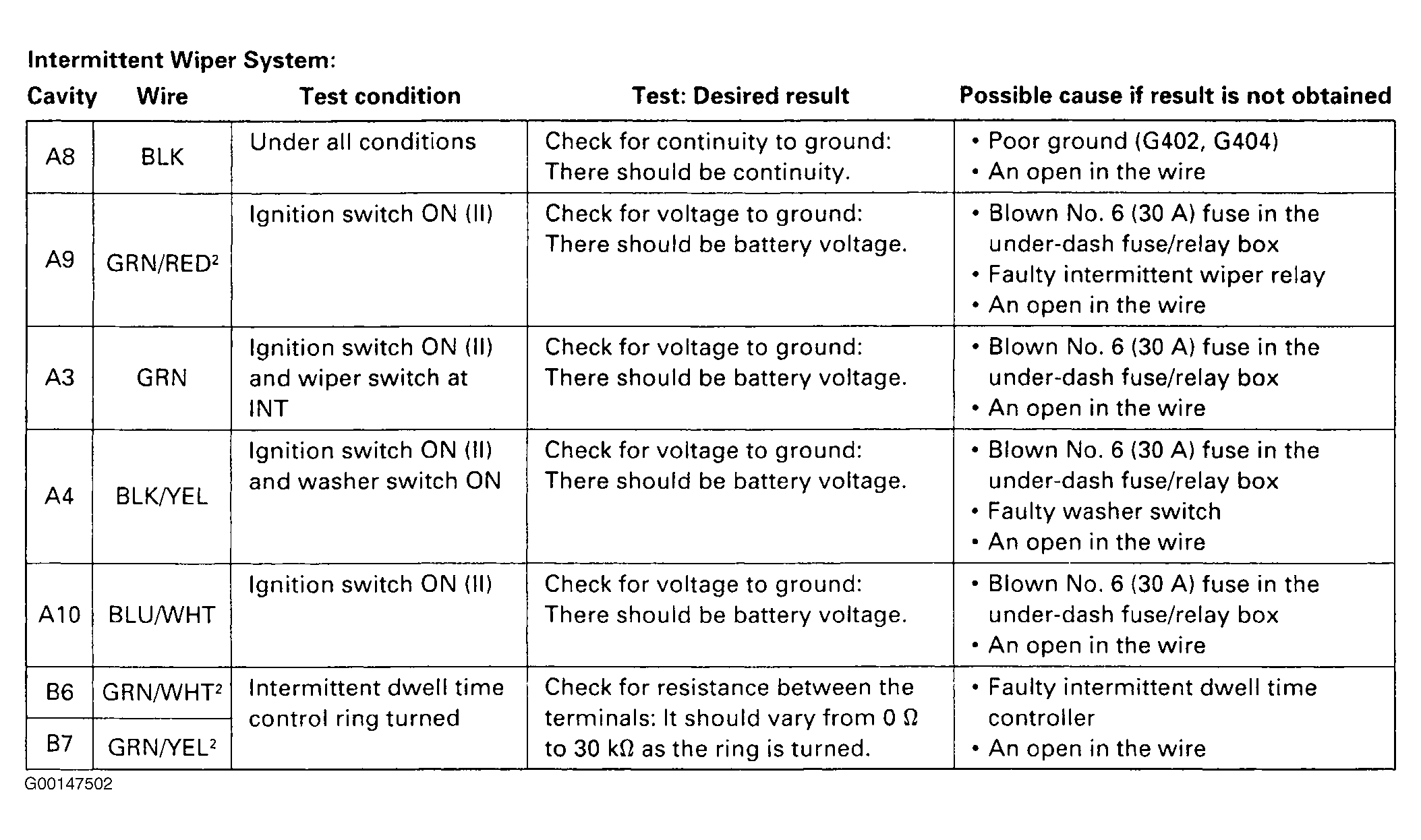

Fig 1: Wiper System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
