Cruise Control Unit Input

WARNING: This page is about a different car, the 1994 Honda Civic del Sol and 1994 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition off. Remove dashboard lower left cover. Cruise control unit is located under left side kick panel. Unplug cruise control unit 14-pin connector.
  2. Using a DVOM, perform cruise control unit input tests. See Fig 1 or Fig 2 . If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.

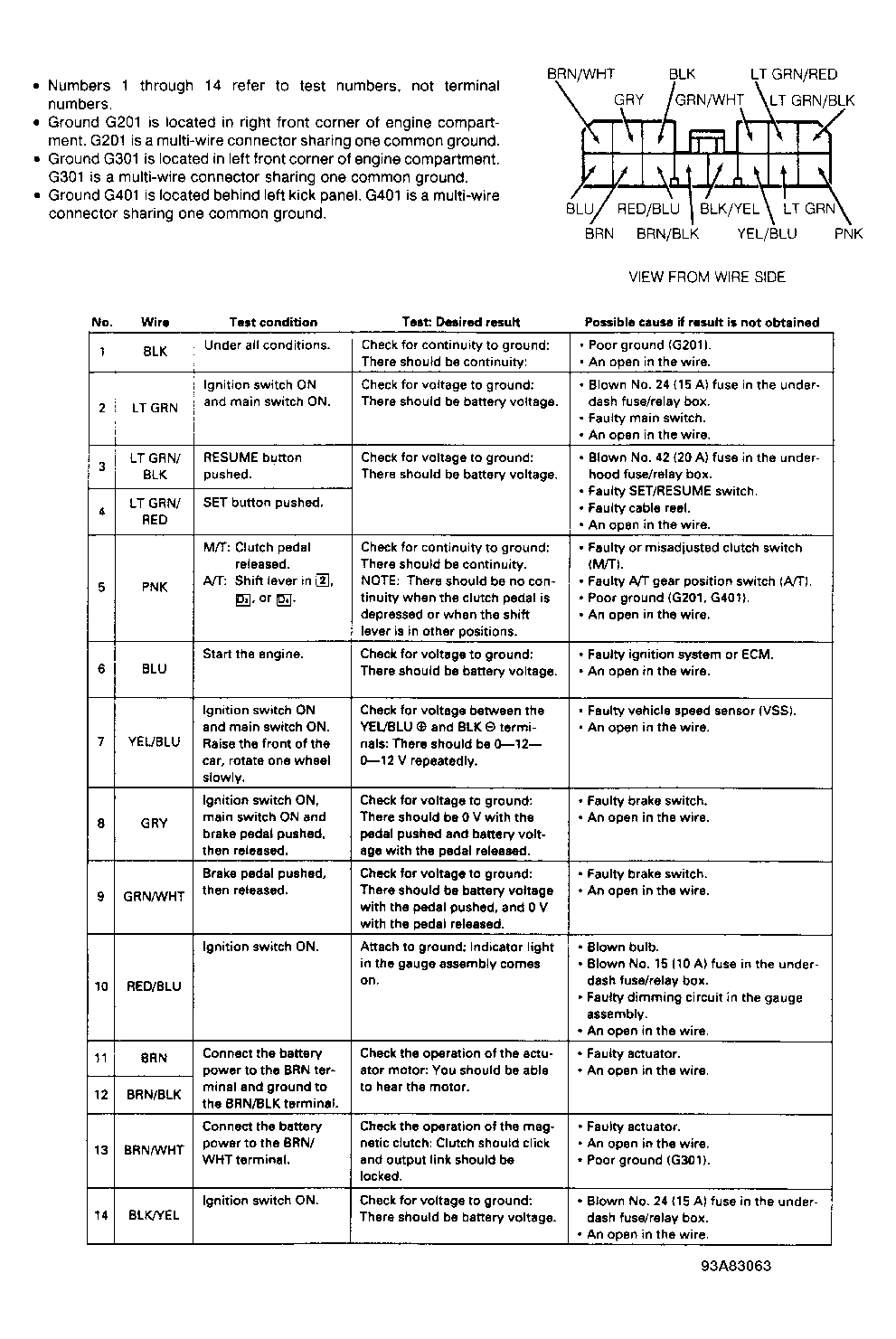

Fig 1: Cruise Control Unit Input Test (Civic)
G93A83063Courtesy of AMERICAN HONDA MOTOR CO., INC.

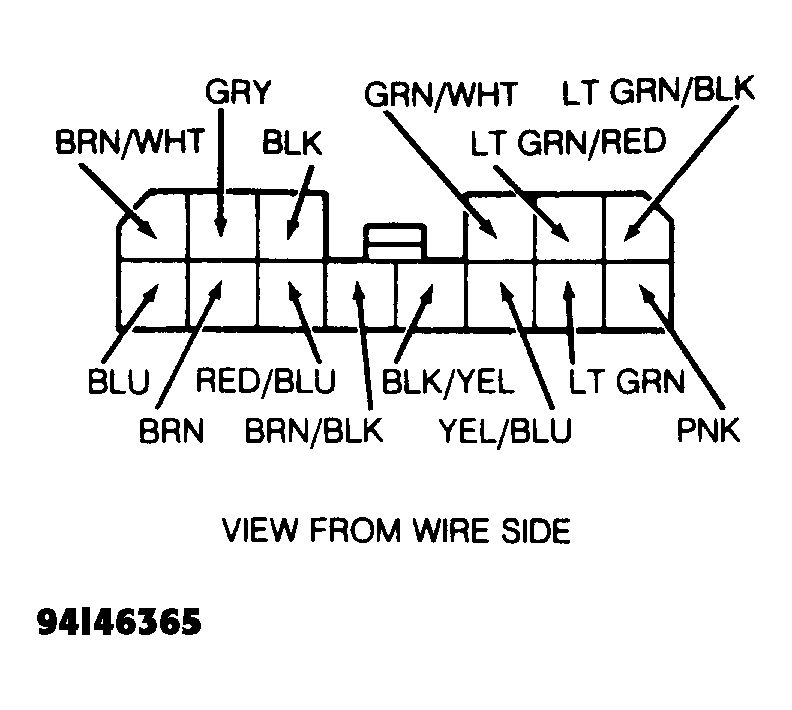

Fig 2: Cruise Control Unit Input Test (Civic Del Sol)
G94I46365Courtesy of AMERICAN HONDA MOTOR CO., INC.
