COMPONENT LOCATIONS

Component Location
Driver's Seat Belt Switch In Driver's Seat Belt Buckle.
Engine Compartment Fuse/Relay Block On Right Rear Corner Of Engine Compartment, Near Firewall. See Fig 1 .
Integrated Control Unit On Passenger Compartment Fuse/Relay Block. See Fig 2 .
Passenger Compartment Fuse/Relay Block Behind Driver's Side Of Instrument Panel. See Fig 2 .
G201 Passenger's Side Of Engine Compartment. See Fig 3 .
G401 Behind Driver's Side Kick Panel. See Fig 4 .
G551 Behind Driver's Side Rear Quarter Trim Panel. See Fig 5 .
G552 Behind Driver's Side Kick Panel. See Fig 5 .
Fig 1: Locating Engine Compartment Fuse/Relay Block
G94B31386Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Locating Passenger Compartment Fuse/Relay Block & Integrated Control Unit
G94J31384Courtesy of AMERICAN HONDA MOTOR CO., INC.

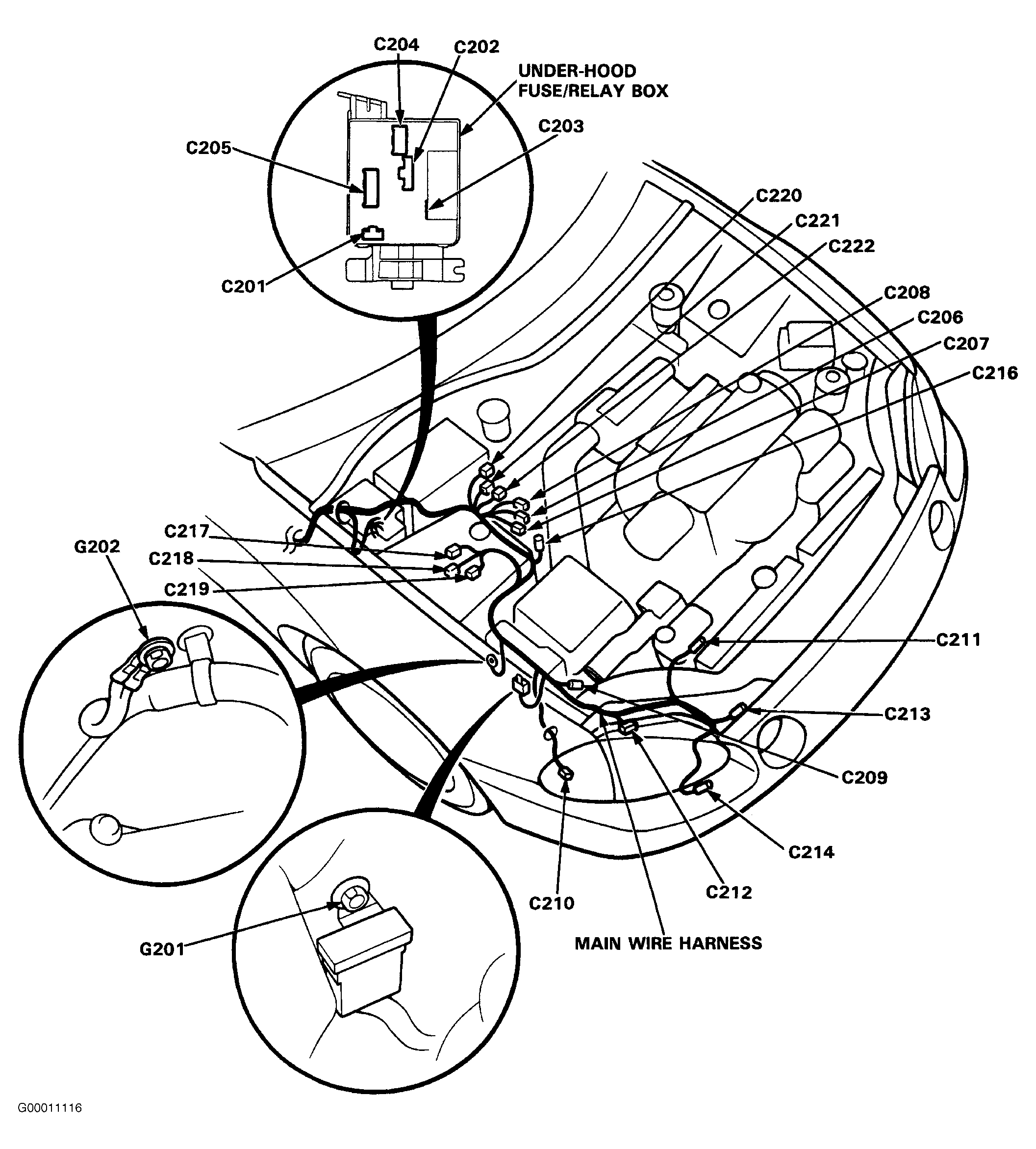

Fig 3: Locating Ground G201
G00011116Courtesy of AMERICAN HONDA MOTOR CO., INC.

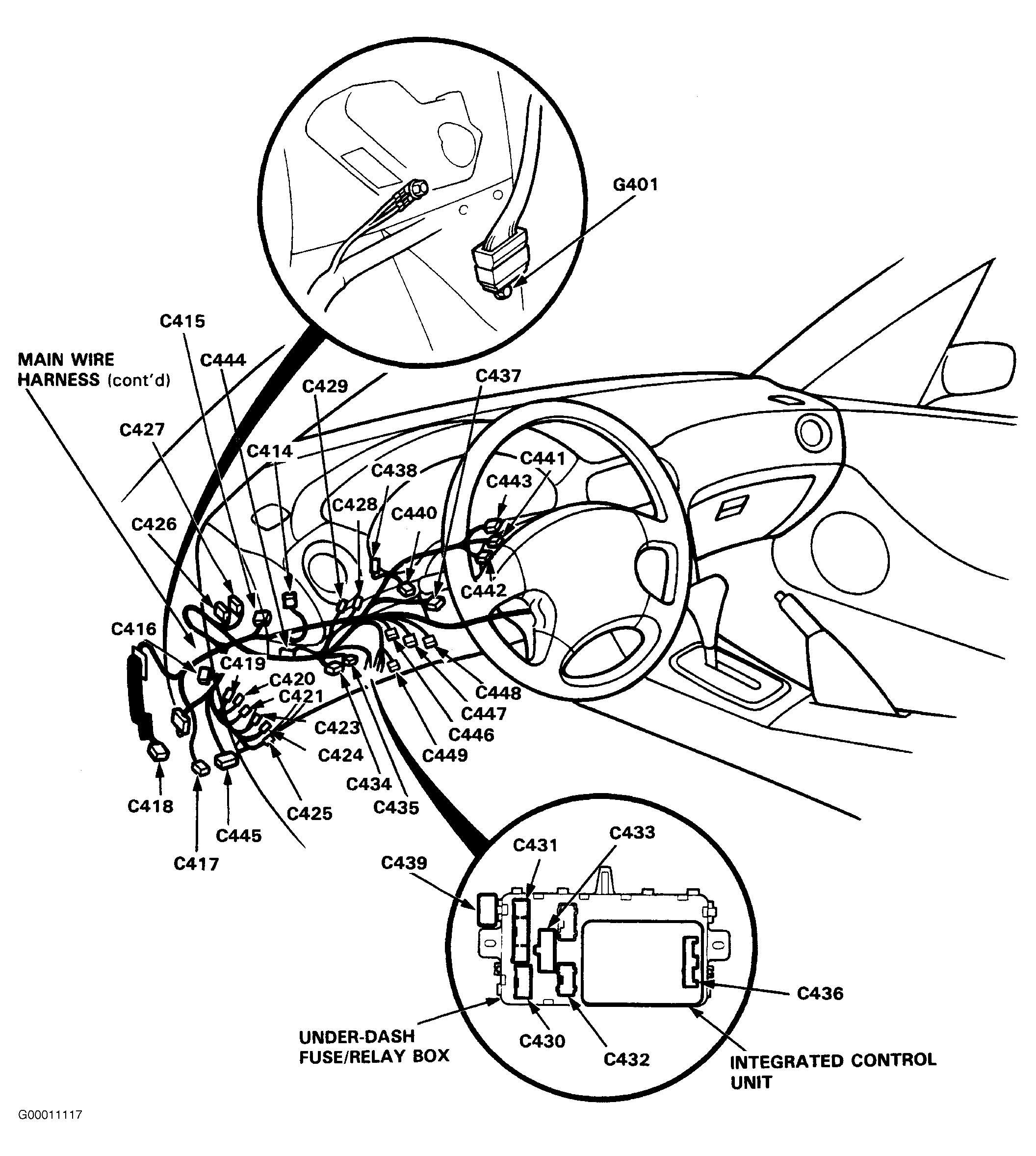

Fig 4: Locating Ground G401
G00011117Courtesy of AMERICAN HONDA MOTOR CO., INC.

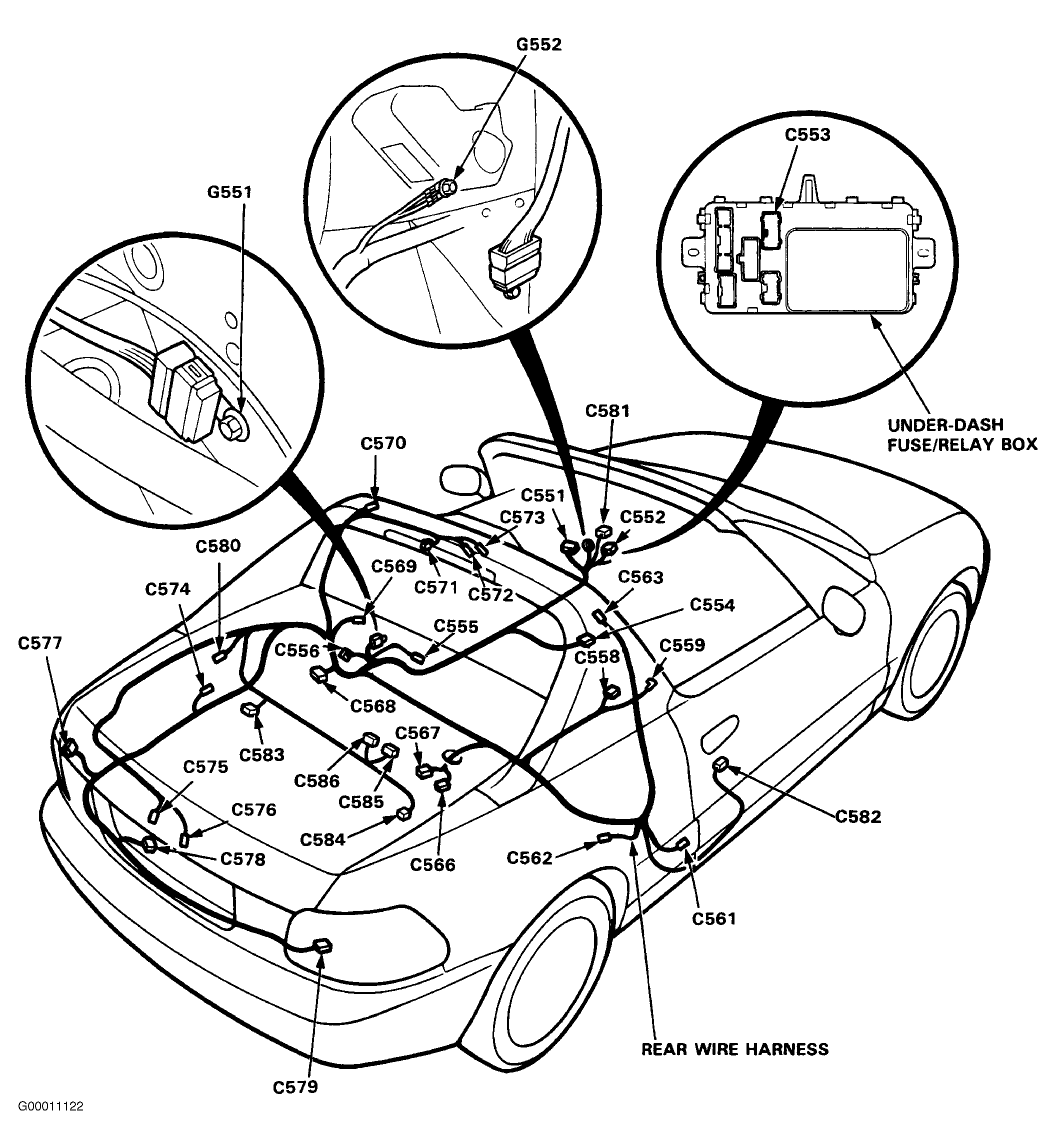

Fig 5: Locating Grounds G551 & G552
G00011122Courtesy of AMERICAN HONDA MOTOR CO., INC.
