Engine Controls - Tests W/Codes - 2.6L
›
Code Charts
›
Code 64 - Fuel Injector Circuit (ECM Transistor)
Code 64 - Fuel Injector Circuit (ECM Transistor)
NOTE:
See appropriate WIRING DIAGRAM in
WIRING DIAGRAMS
section for terminal and connector identification.
Fig 1: Code 64 - ECT Sensor Side Of Black 16-Pin Connector (2.6L Passport)
Courtesy of ISUZU MOTOR CO.

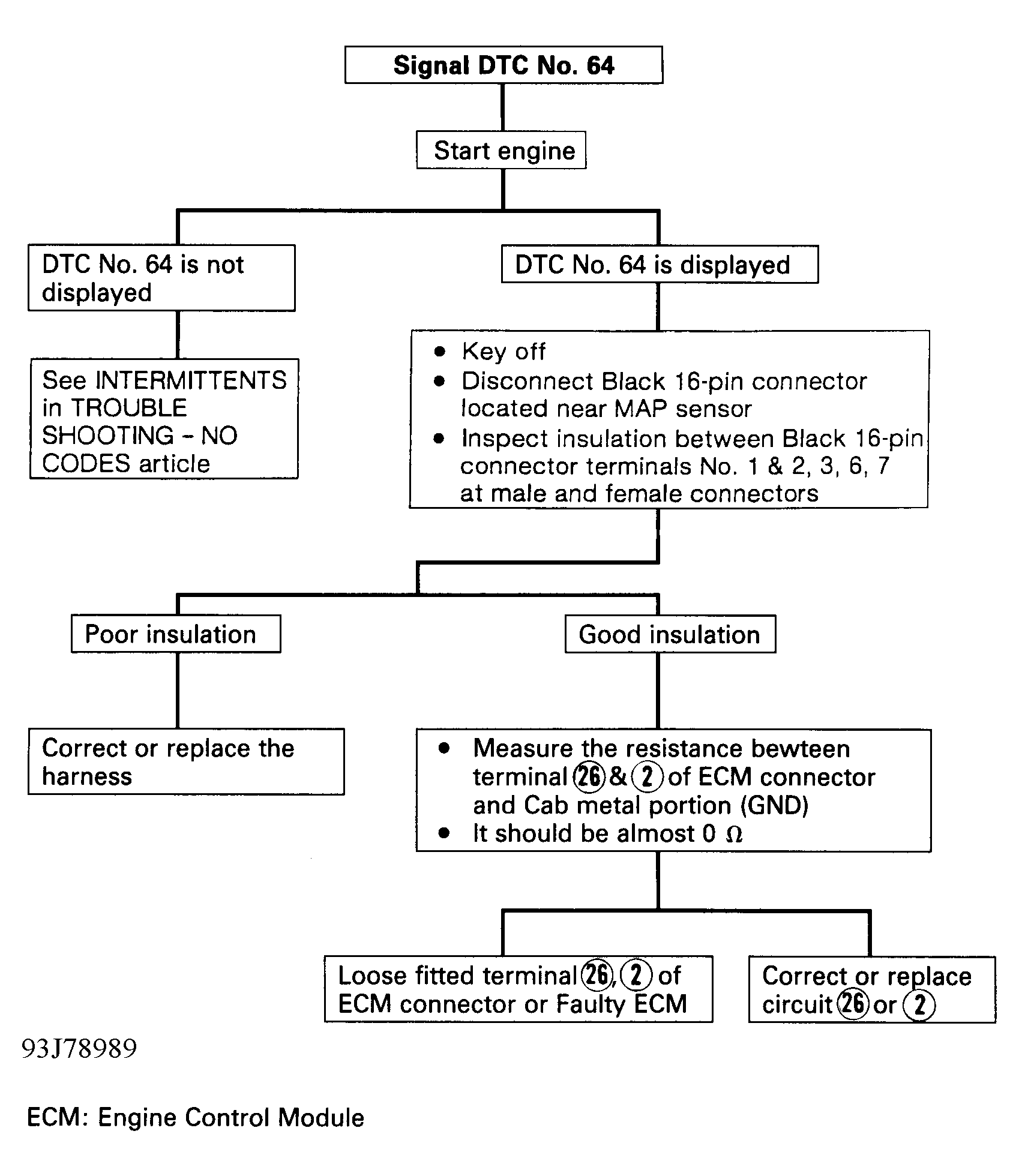

Fig 2: Code 64 - Diagnostic Flowchart (2.6L Passport)
Courtesy of ISUZU MOTOR CO.
