Fuel Metering Rich Faulty Inspection Procedure

NOTE: See appropriate WIRING DIAGRAM in WIRING DIAGRAMS  section for terminal and connector identification.

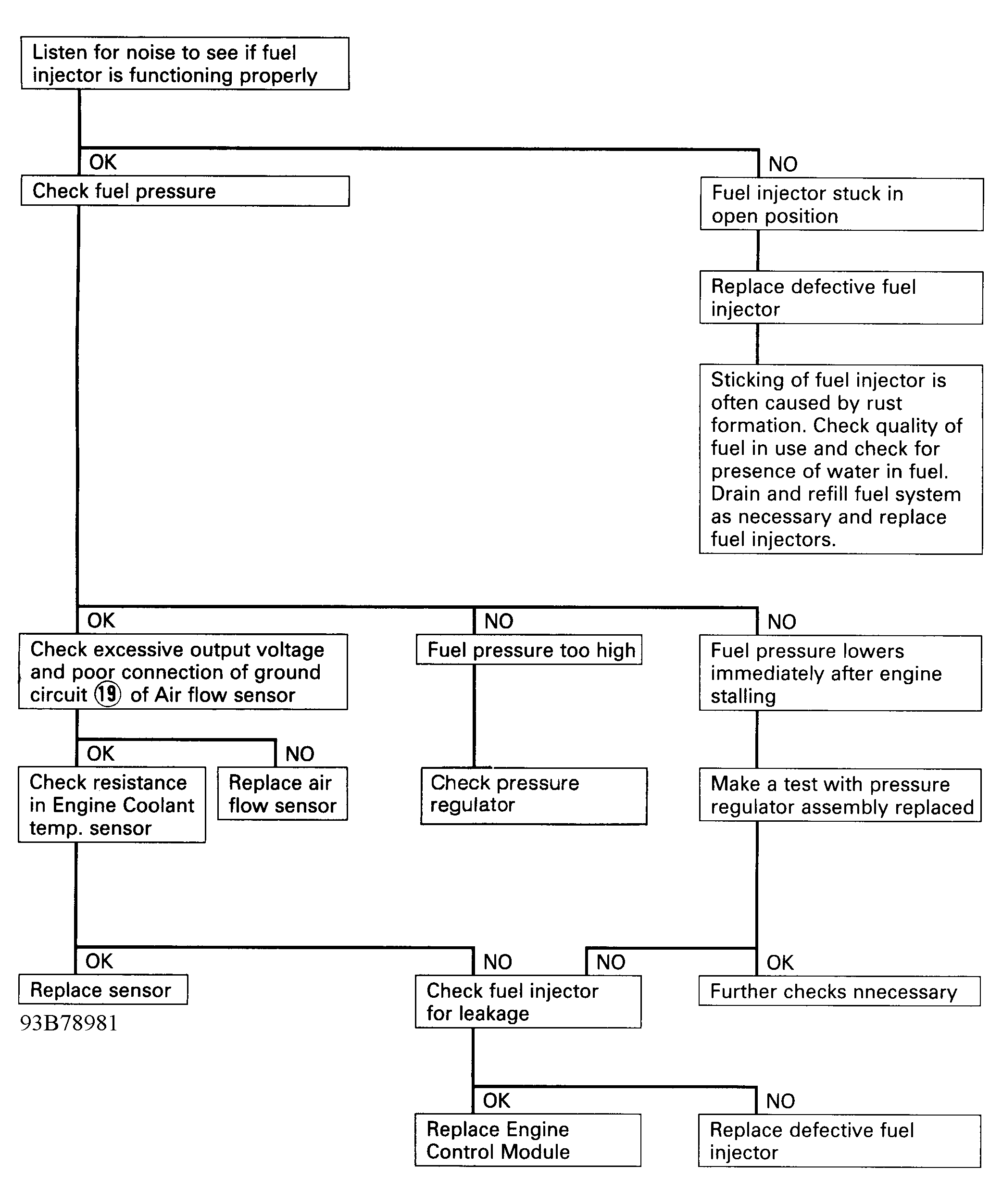

Fig 1: Fuel Metering Rich - Diagnostic Flowchart (2.6L Passport)

Courtesy of ISUZU MOTOR CO.
