Test No. 3 - Will Not Flash Code 12

NOTE: See appropriate WIRING DIAGRAM in WIRING DIAGRAMS  section for terminal and connector identification.

Fig 1: Test No. 3 - Airflow Sensor Connector (2.6L Passport)

Courtesy of ISUZU MOTOR CO.

Fig 2: Test No. 3 - Data Link Connector (2.6L Passport)

Courtesy of ISUZU MOTOR CO.

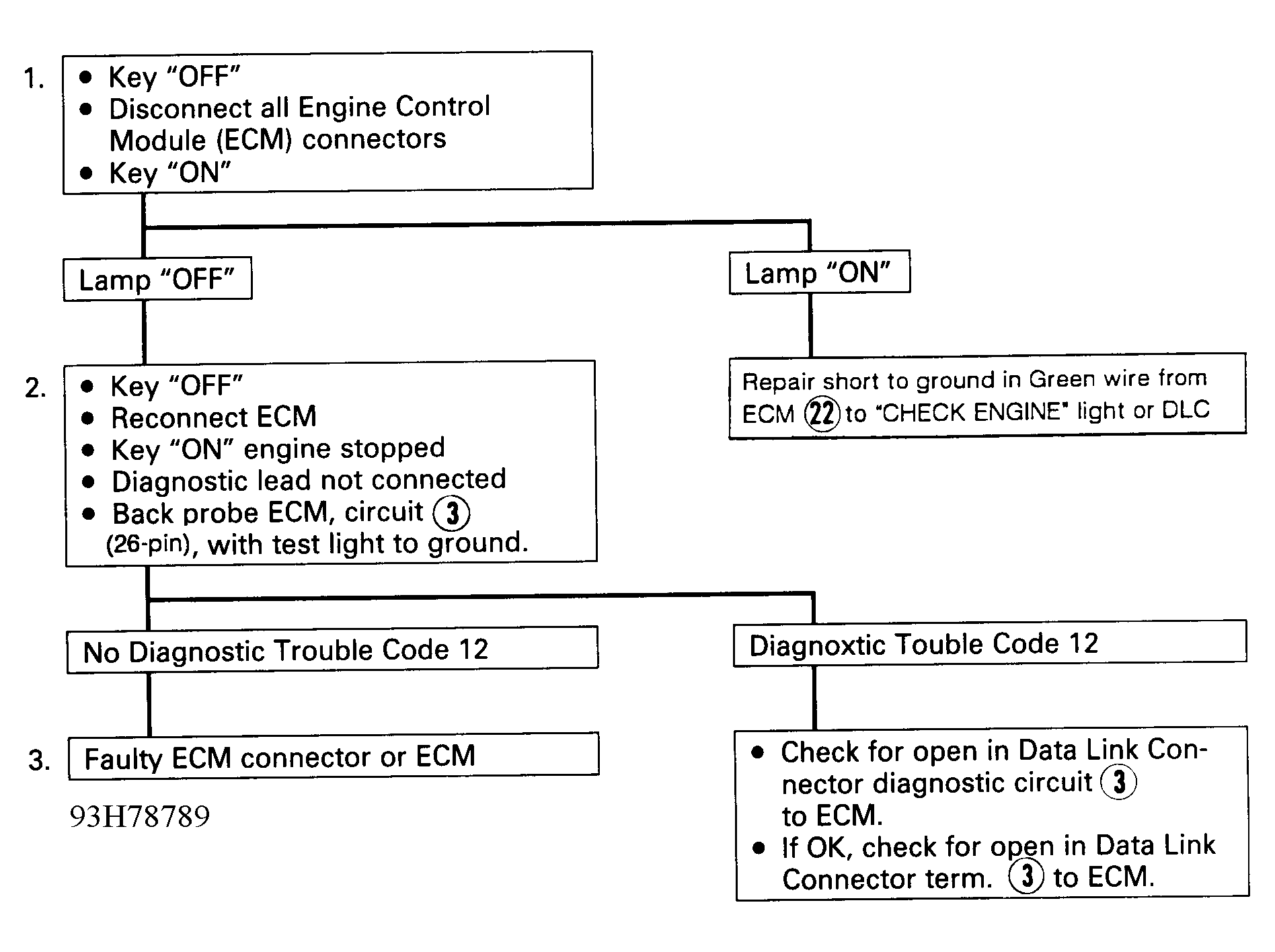

Fig 3: Test No. 3 - Diagnostic Flowchart (2.6L Passport)

Courtesy of ISUZU MOTOR CO.
