Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (2.6L 1995)

Fig 2: Engine Compartment (3.2L 1995)

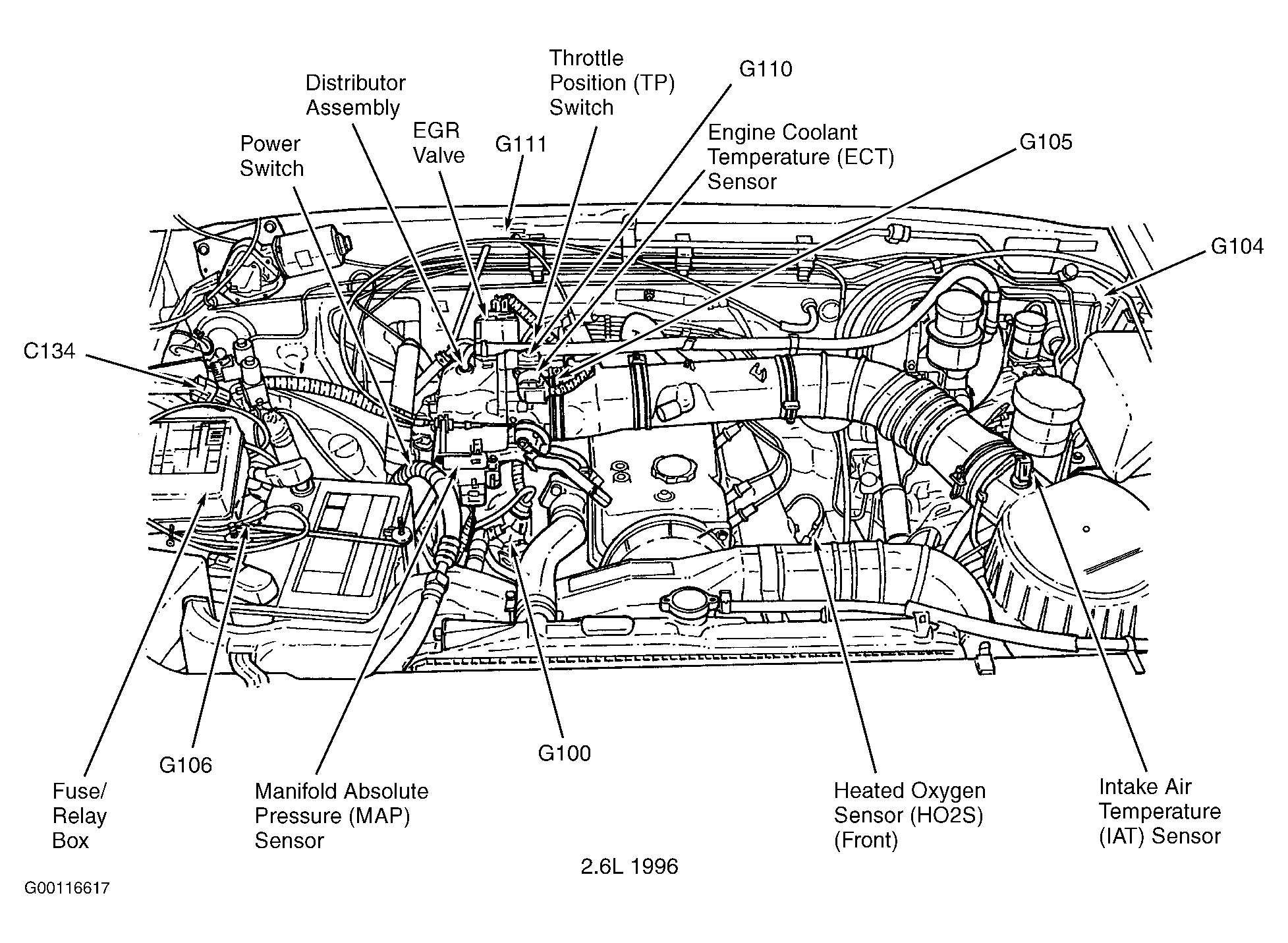

Fig 3: Engine Compartment (2.6L 1996)

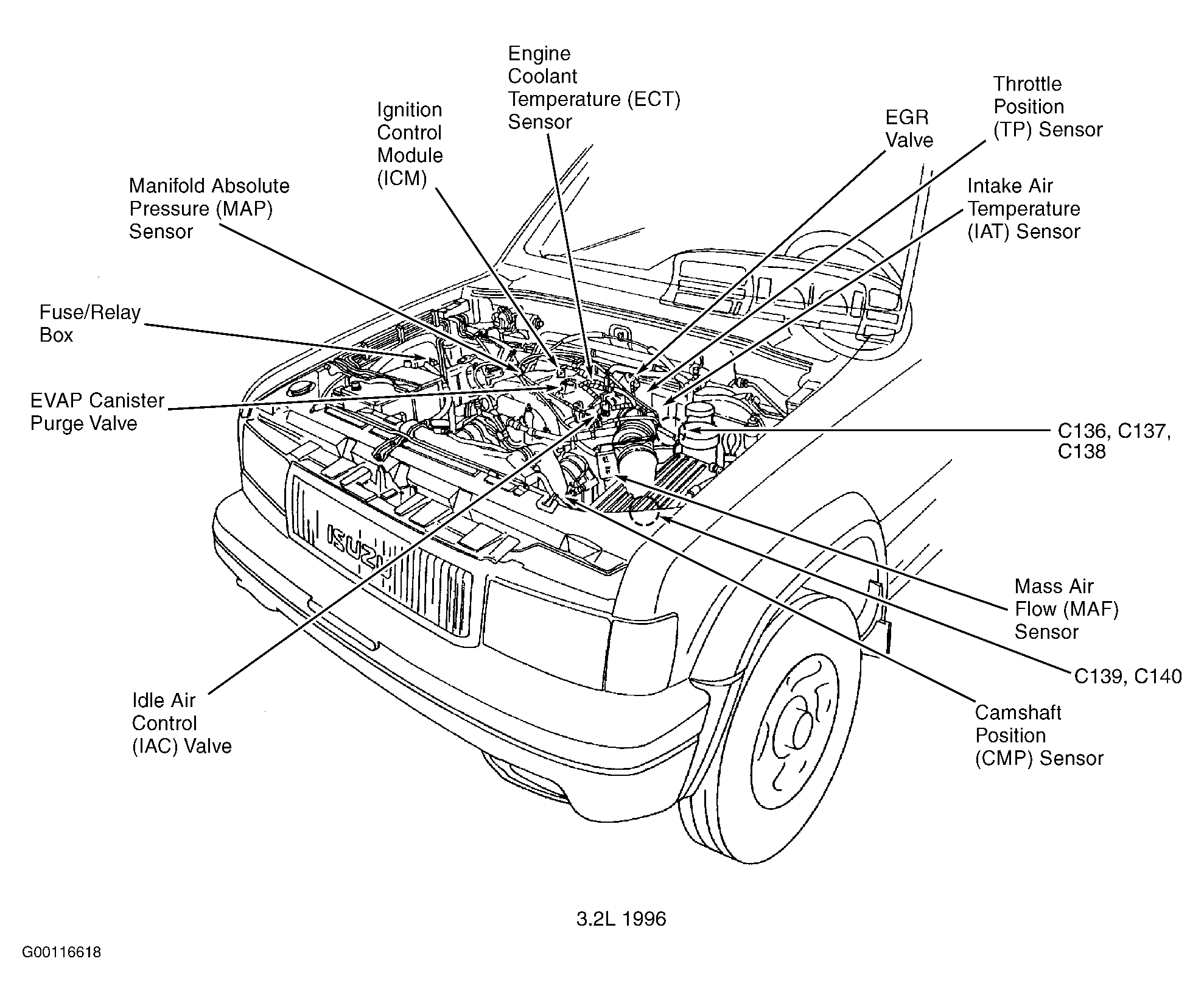

Fig 4: Engine Compartment (3.2L 1996)
