Power Window Key-Off Timer System

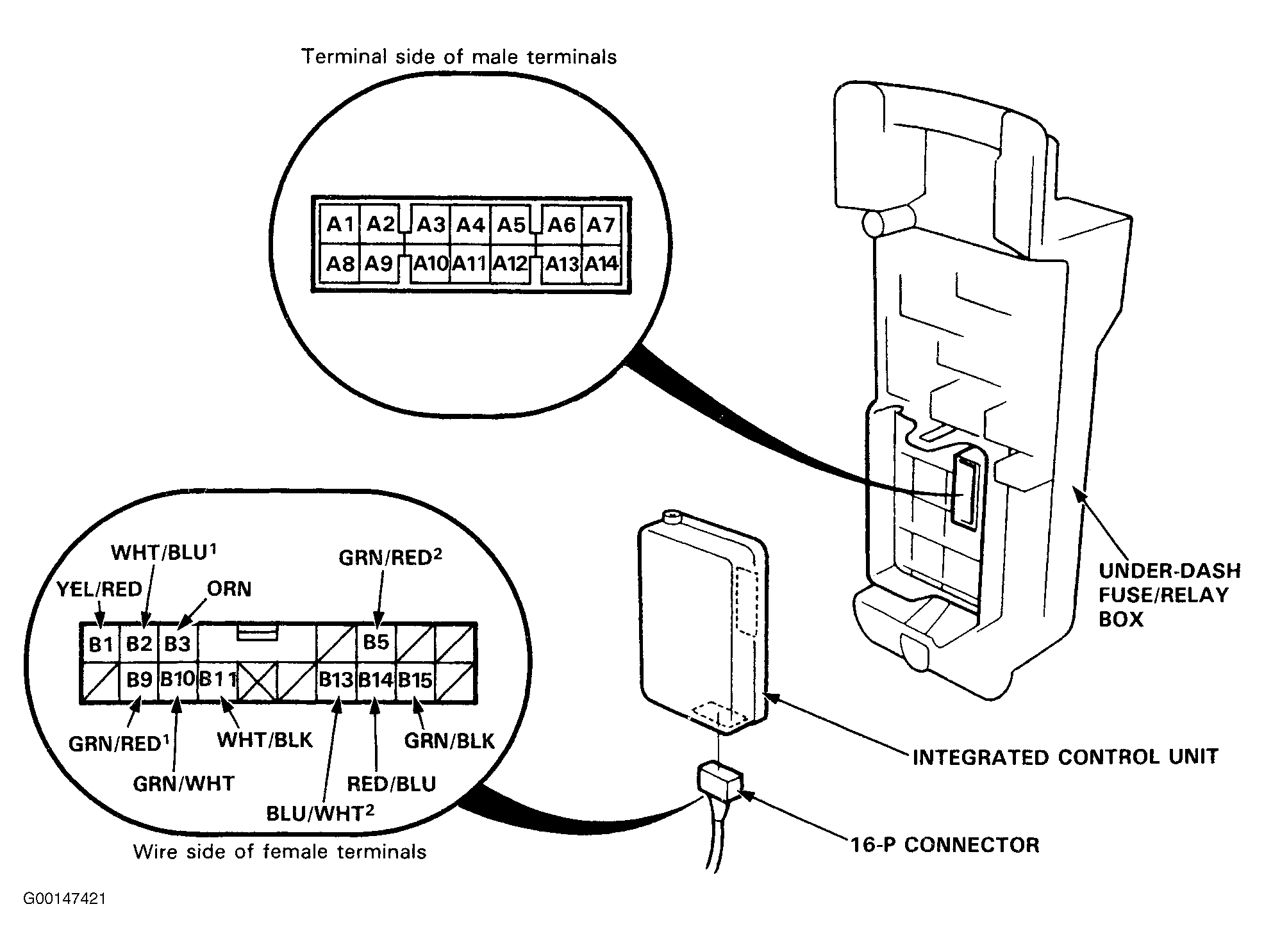

For connector terminal identification, see Figure . For input test, see Fig 1 .

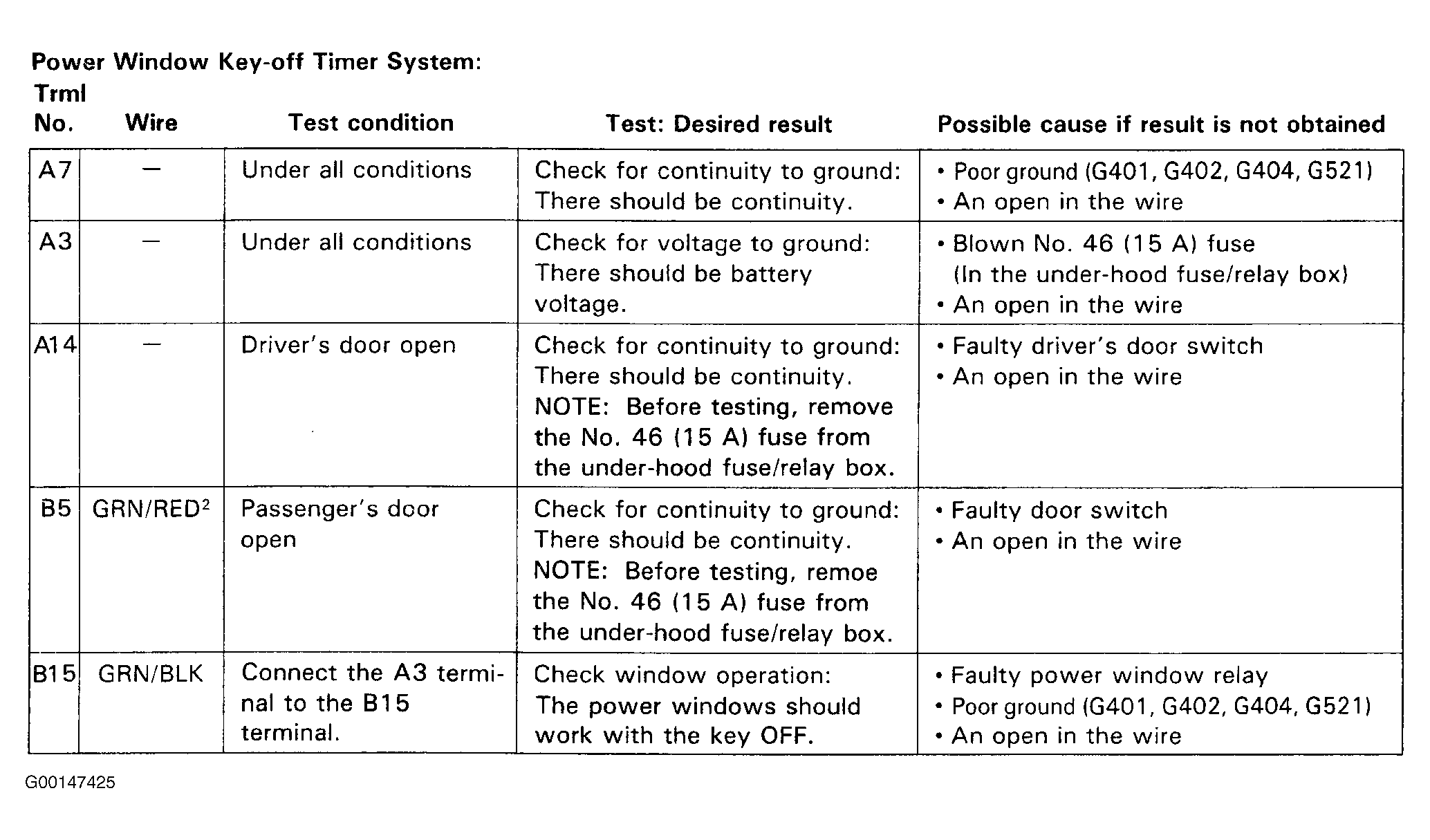

Fig 1: Power Window Key-Off Timer System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
