Side Marker Flasher Light System

For connector terminal identification, see Figure . For input test, see Fig 1 .

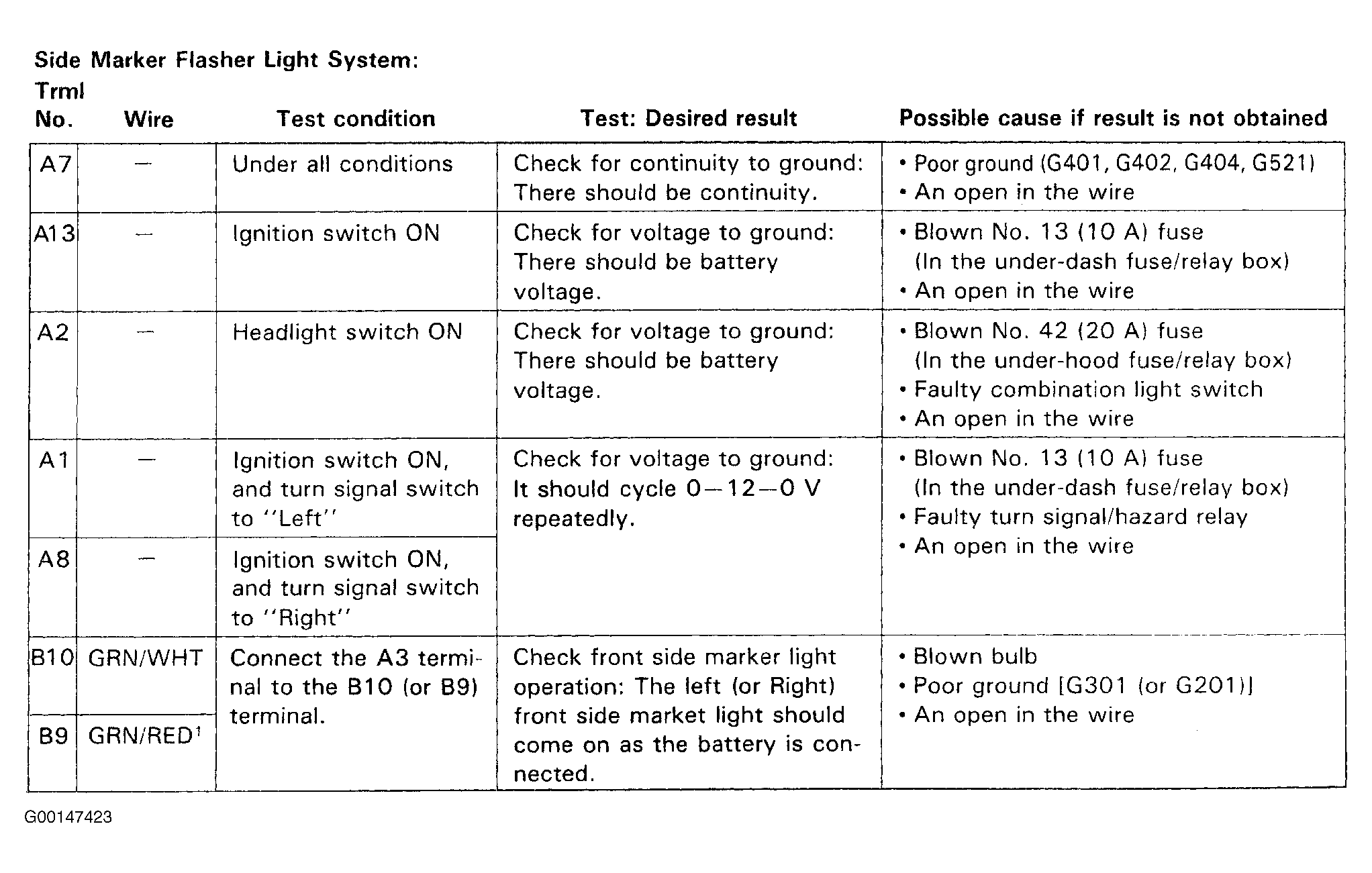

Fig 1: Side Marker Flasher Light System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
