Component Locations

COMPONENT LOCATIONS

Component Location
Chime Module Under Driver's Side Of Instrument Panel. See Fig 1 .
Driver's Seat Belt Switch In Driver's Seat Belt Buckle Assembly.
Engine Oil Pressure Switch Below Oil Filter.
Fuse/Relay Box (Under-Dash) Behind Left Kick Panel. See Fig 2 .
Fuse/Relay Box (Under-Hood) Right Rear Corner Of Engine Compartment, Behind Strut Tower. See Fig 3 .
Integrated Control Unit On Under-Dash Fuse/Relay Box. See Fig 2 .
G201 Passenger's Front Corner Of Engine Compartment. See Fig 4 .
G301 Driver's Front Corner Of Engine Compartment. See Fig 5 .
G401 Behind Passenger's Side Of Instrument Panel. See Fig 6 .
G402 Under Center Of Instrument Panel. See Fig 6 .
G404 Under Center Of Instrument Panel. See Fig 6 .
G521 Under Driver's Seat. See Fig 7 .
G522 Behind Driver's Side Rear Quarter Trim Panel. See Fig 7 .
Fig 1: Locating Chime Module
G00011111Courtesy of AMERICAN HONDA MOTOR CO., INC.

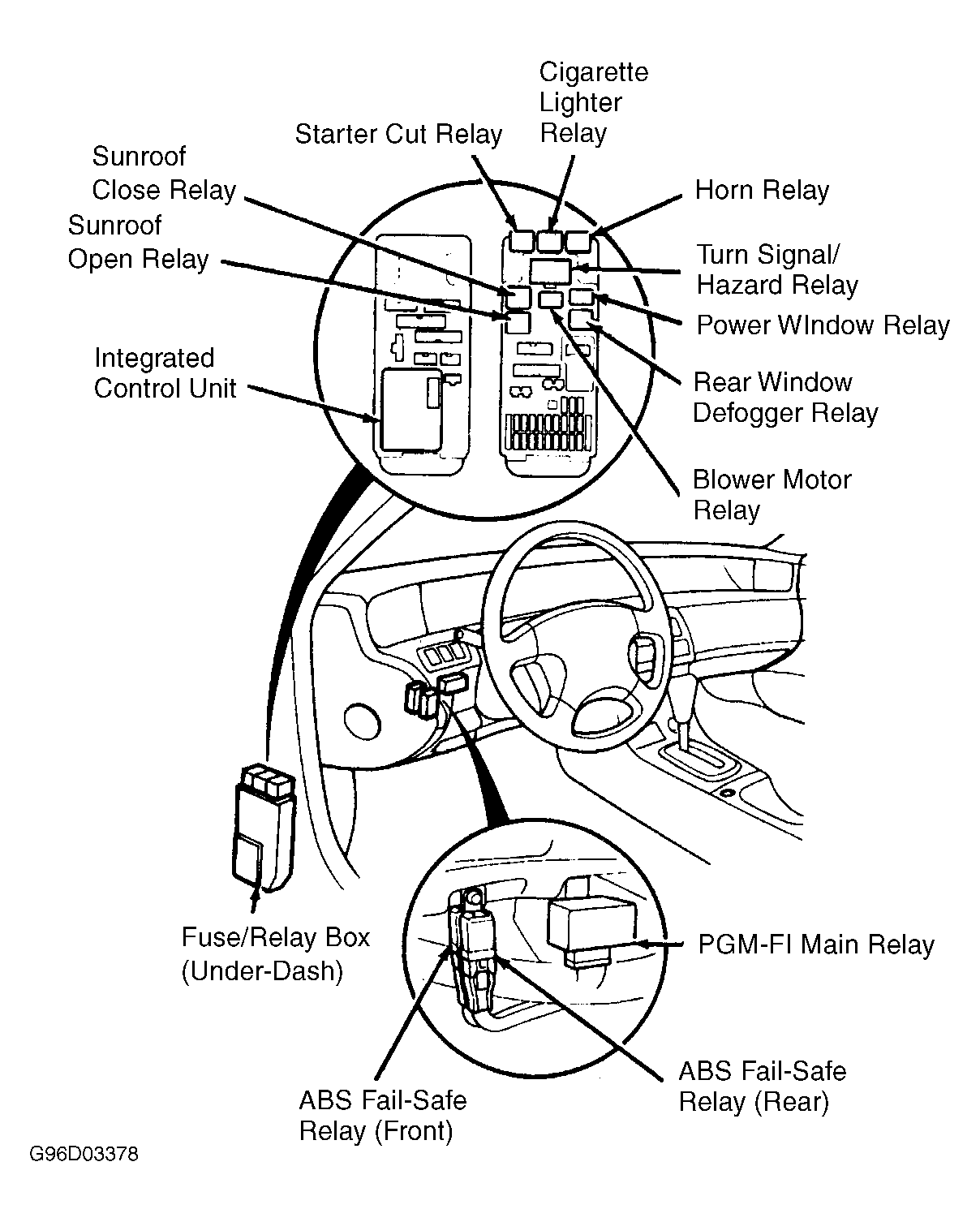

Fig 2: Locating Integrated Control Unit & Fuse/Relay Box (Under-Dash)
G96D03378Courtesy of AMERICAN HONDA MOTOR CO., INC.

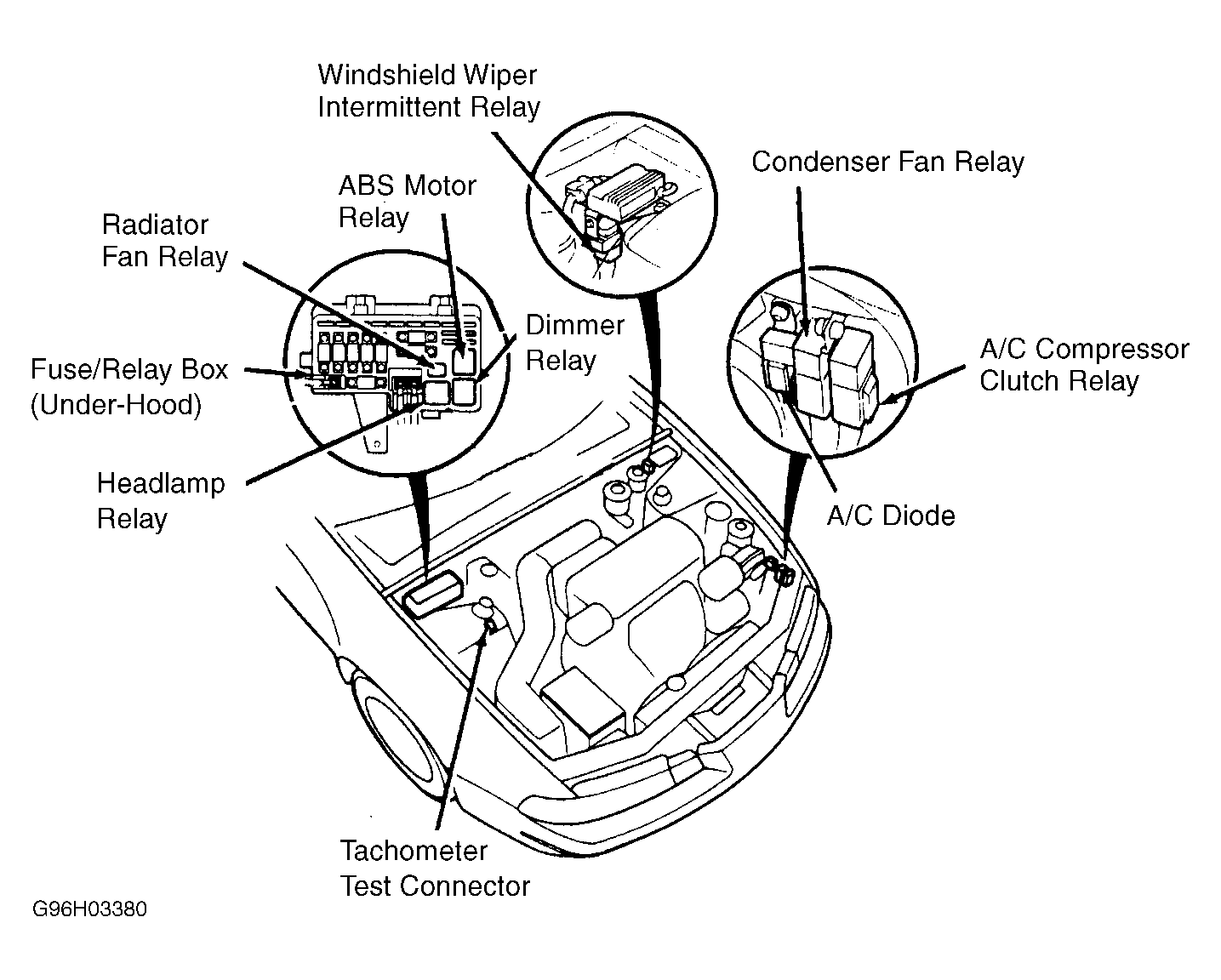

Fig 3: Locating Fuse/Relay Box (Under-Hood)
G96H03380Courtesy of AMERICAN HONDA MOTOR CO., INC.

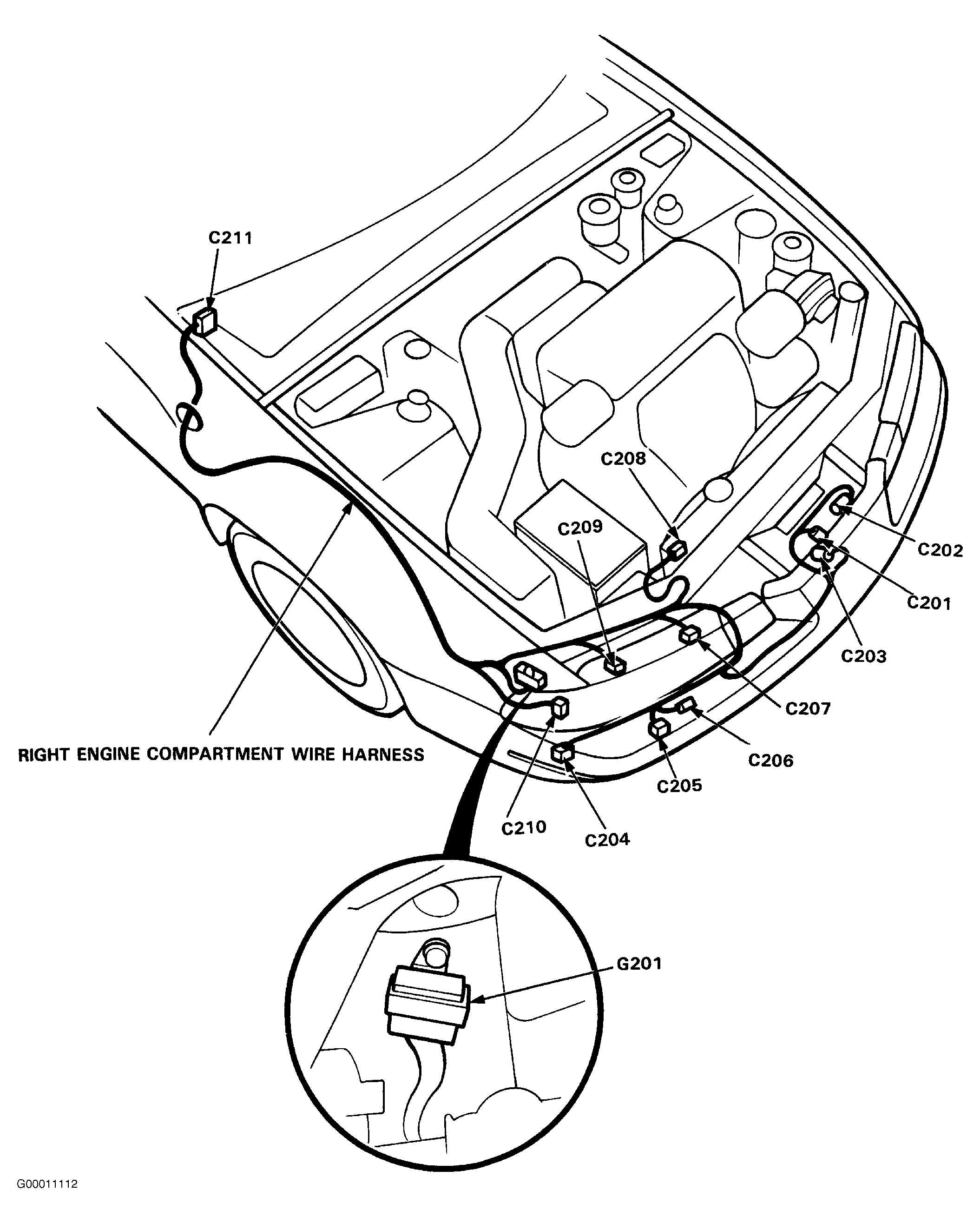

Fig 4: Locating Ground G201
G00011112Courtesy of AMERICAN HONDA MOTOR CO., INC.

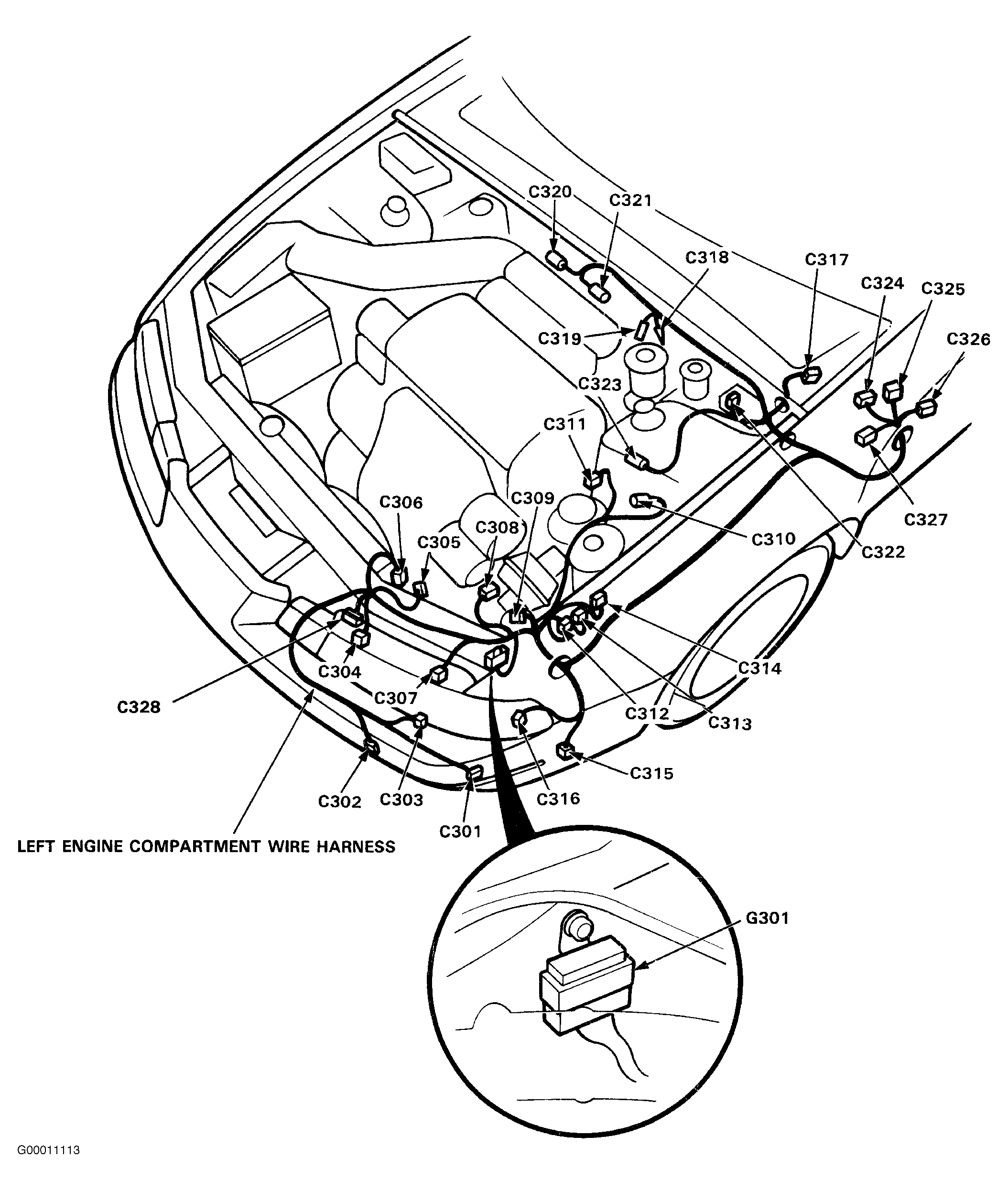

Fig 5: Locating Ground G301
G00011113Courtesy of AMERICAN HONDA MOTOR CO., INC.

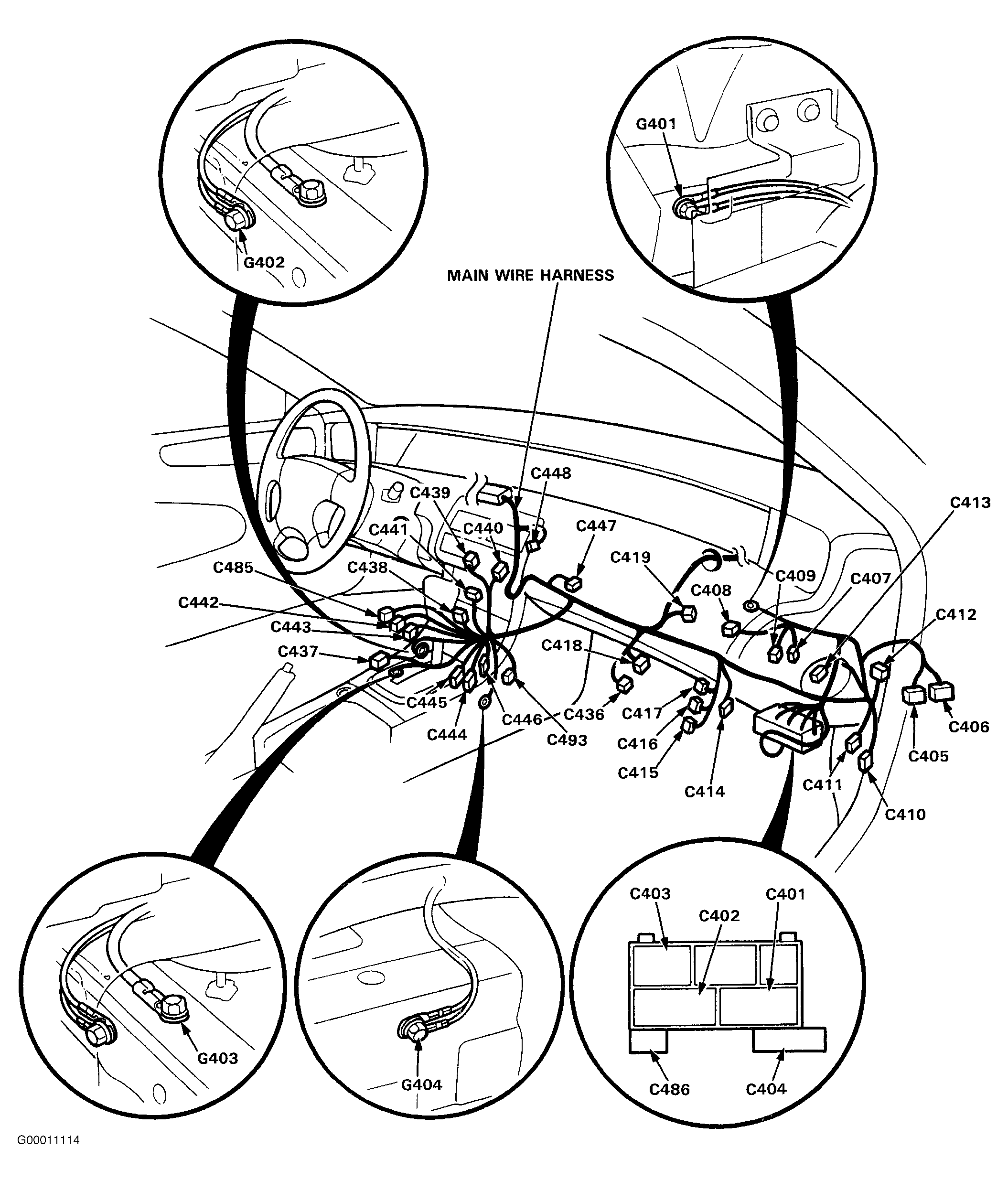

Fig 6: Locating Grounds G401, G402 & G404
G00011114Courtesy of AMERICAN HONDA MOTOR CO., INC.

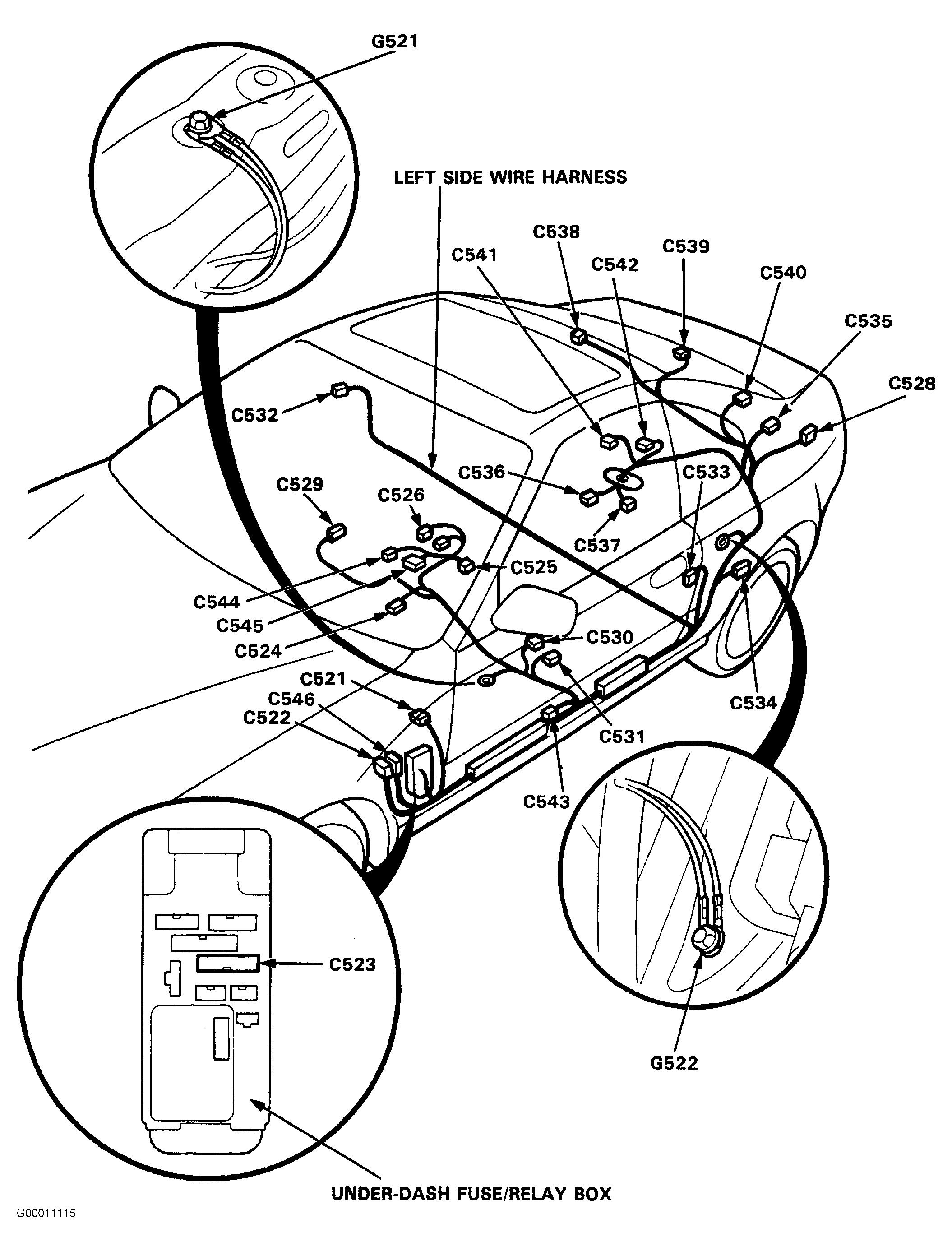

Fig 7: Locating Grounds G521 & G522
G00011115Courtesy of AMERICAN HONDA MOTOR CO., INC.
