Ignition Key Light

  1. Remove the dashboard lower cover and knee bolster.
  2. Disconnect the 8-P connector from the main wire harness. See Fig 1 .
  3. There should be no continuity between "A" and "B" terminals. If there is no continuity, replace the light.

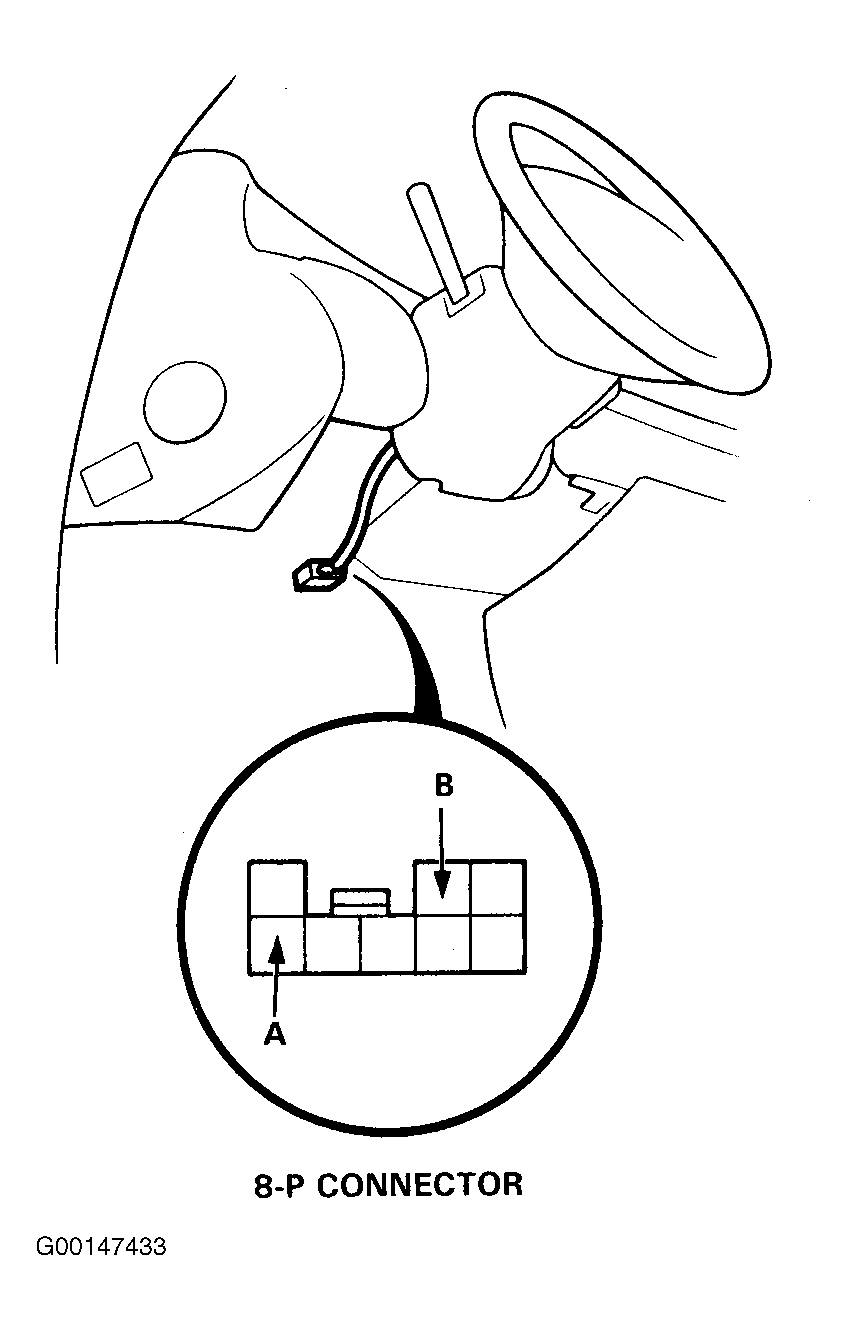

Fig 1: Locating & Identifying 8-P Connector
G00147433Courtesy of AMERICAN HONDA MOTOR CO., INC.
