DTC 5 - Map Sensor Circuit

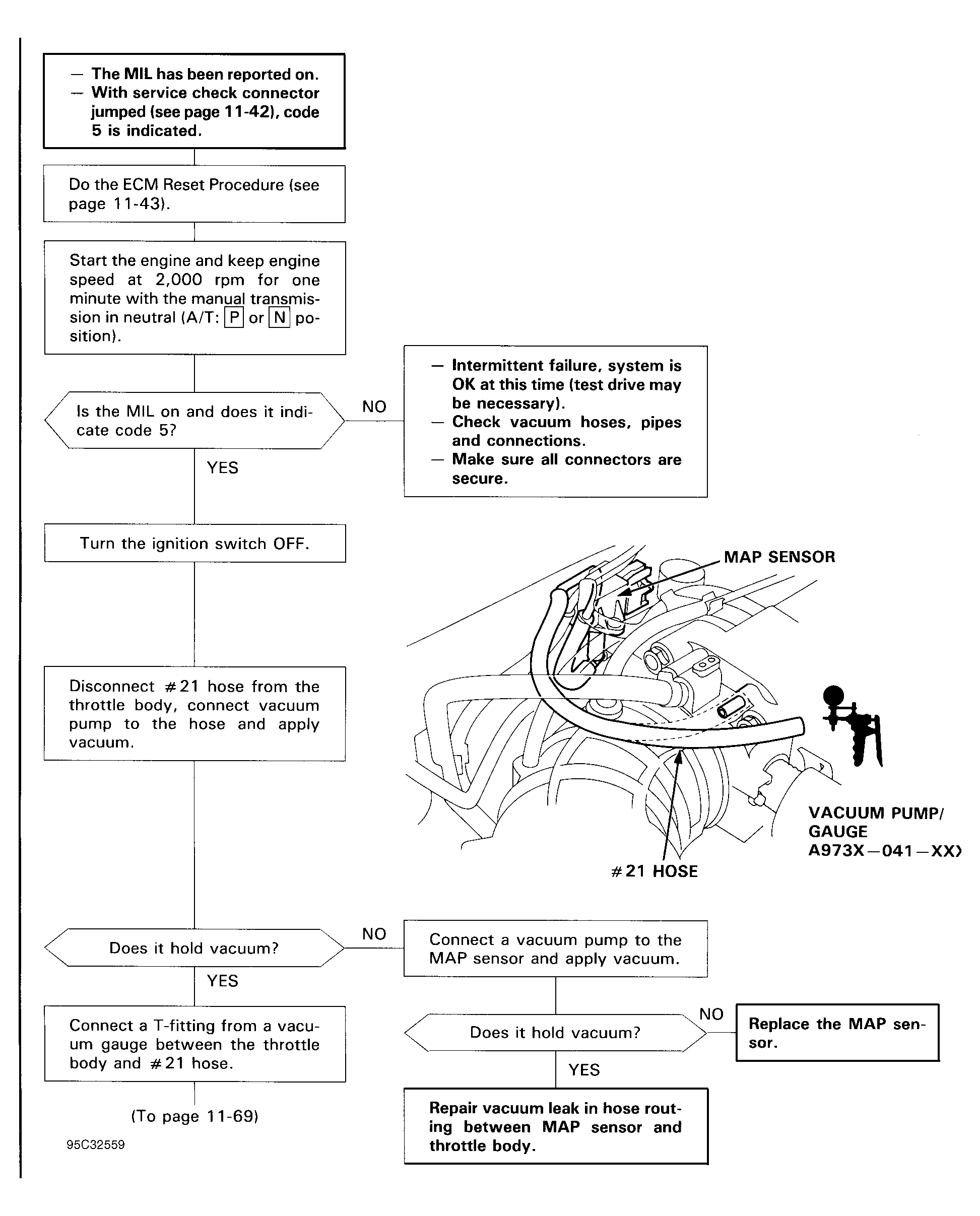

Fig 1: DTC 5 Diagnostic Flow Chart - 1 Of 2 (Prelude) MAP Sensor Circuit

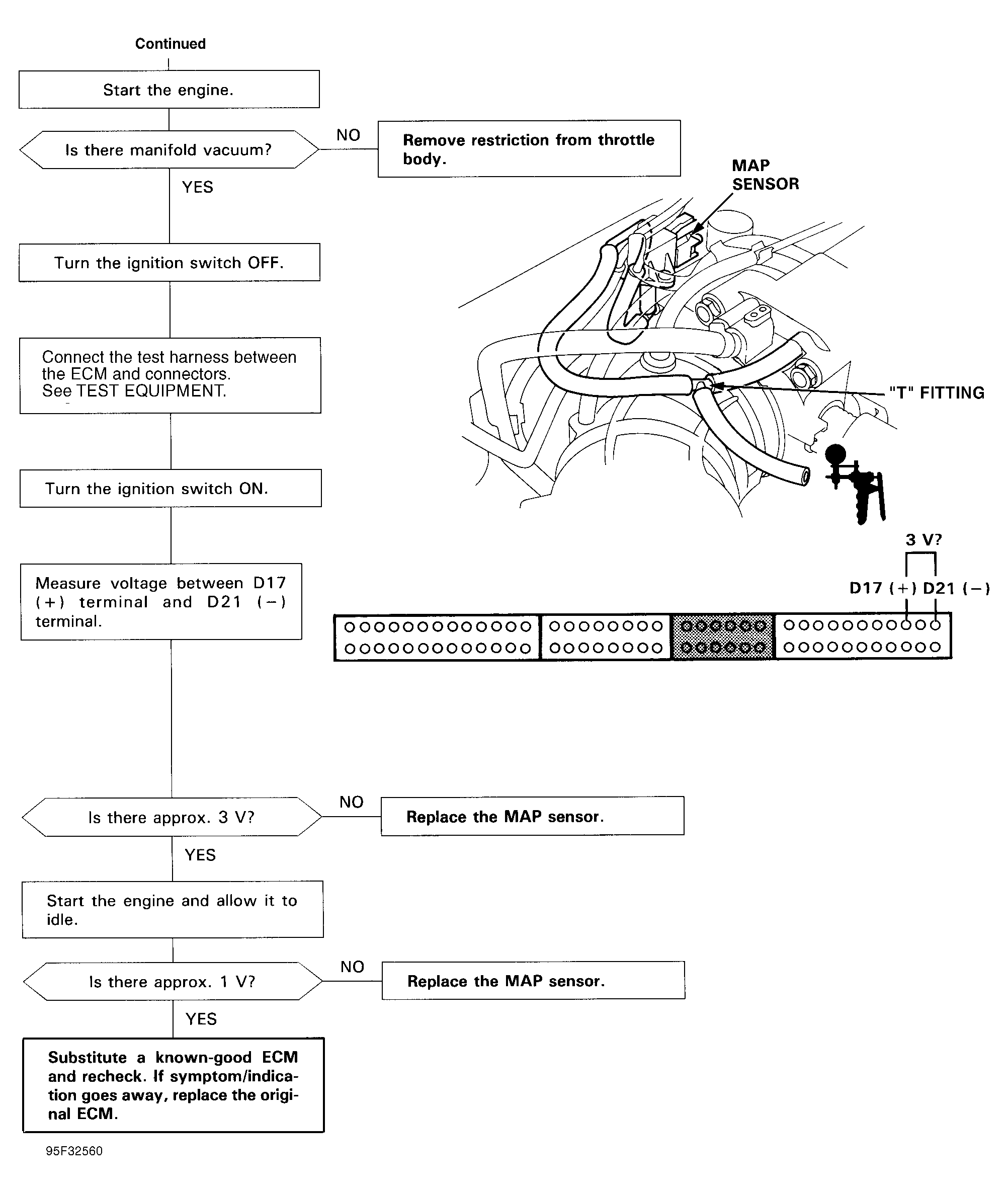

Fig 2: DTC 5 Diagnostic Flow Chart - 2 Of 2 (Prelude) MAP Sensor Circuit
