Switch Test

Disconnect negative battery terminal. Remove adjuster cover from driver's seat. Disconnect harness connectors from switch and remove power seat switch.
Using a DVOM, check continuity between terminals according to continuity tables. SeeFig 1 -Fig 3 . If continuity is not as indicated in tables, replace switch.

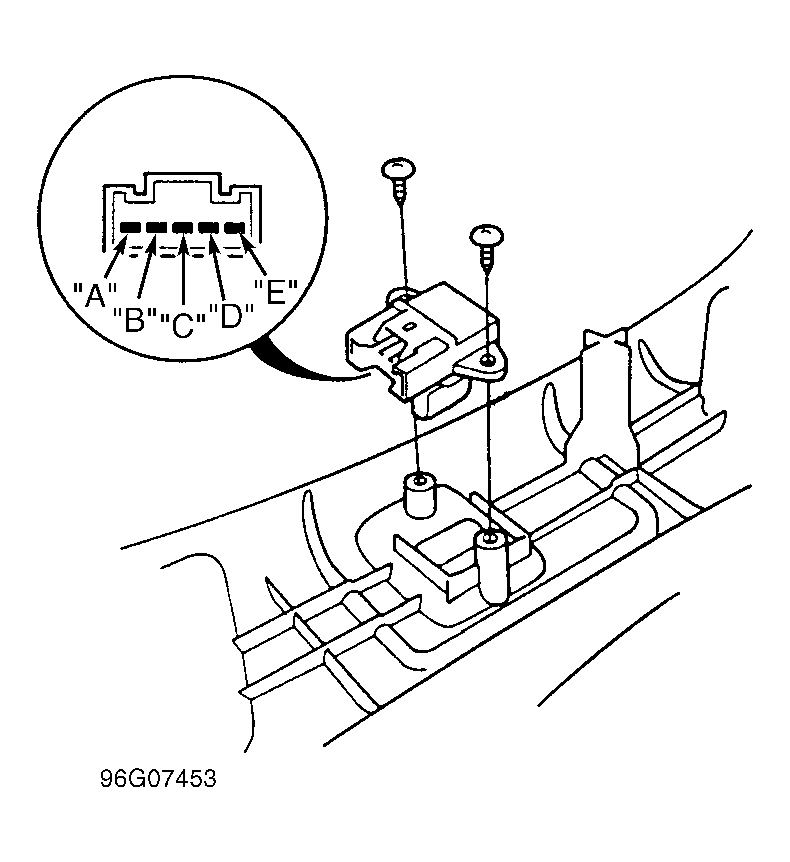

Fig 1: Power Height Adjustment Switch Location/Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Testing Power Height Adjustment Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.

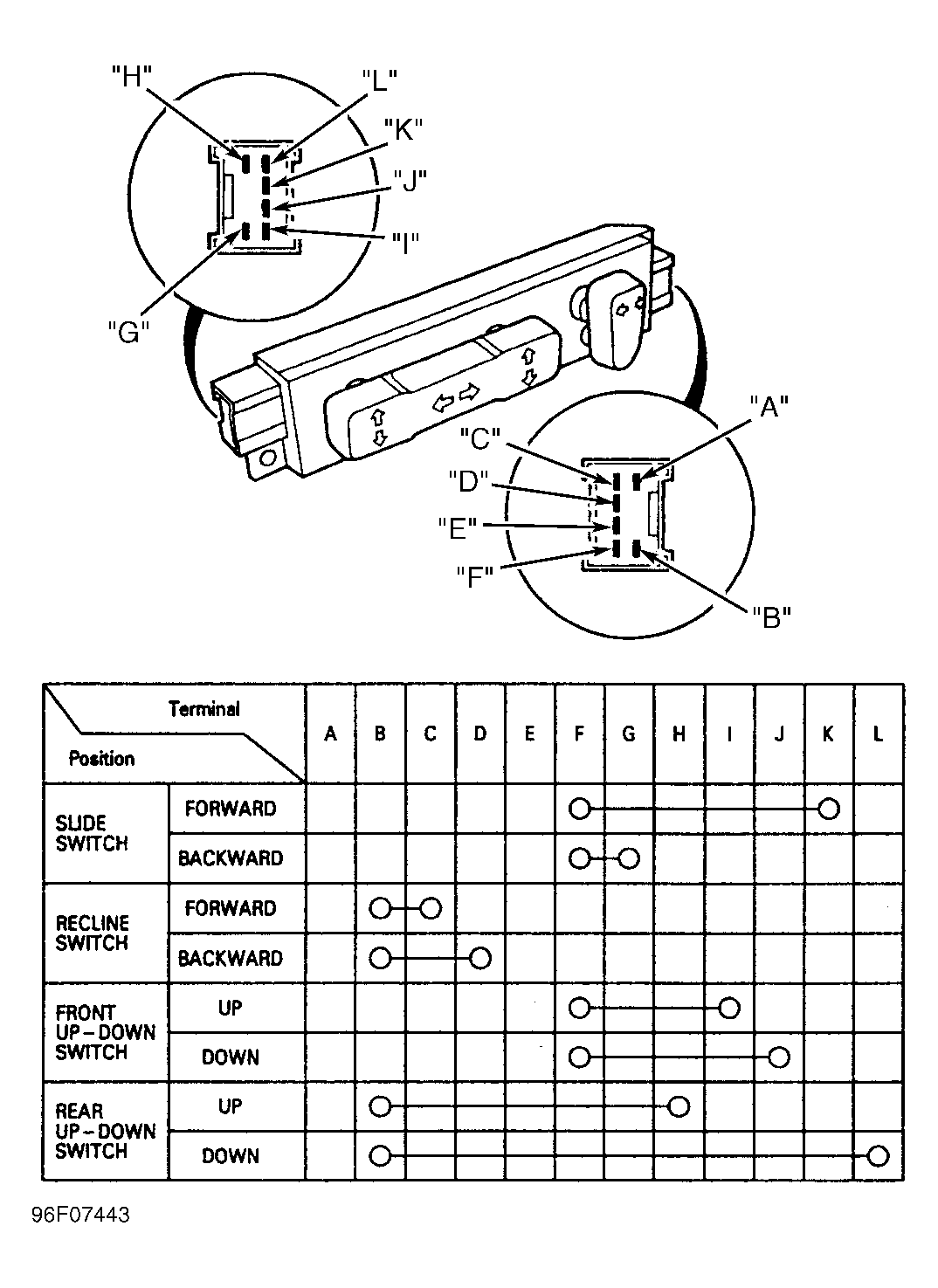

Fig 3: Testing Power Seat Switch

Courtesy of AMERICAN HONDA MOTOR CO., INC.
