Control Unit Inputs

Remove left door panel. Using a DVOM, perform power door lock unit input tests. See Fig 1 -Fig 4 . If all input test results are okay, inspect connector and terminals for damage and proper fit. If connector is okay and power door lock still malfunctions, replace power door lock control unit.

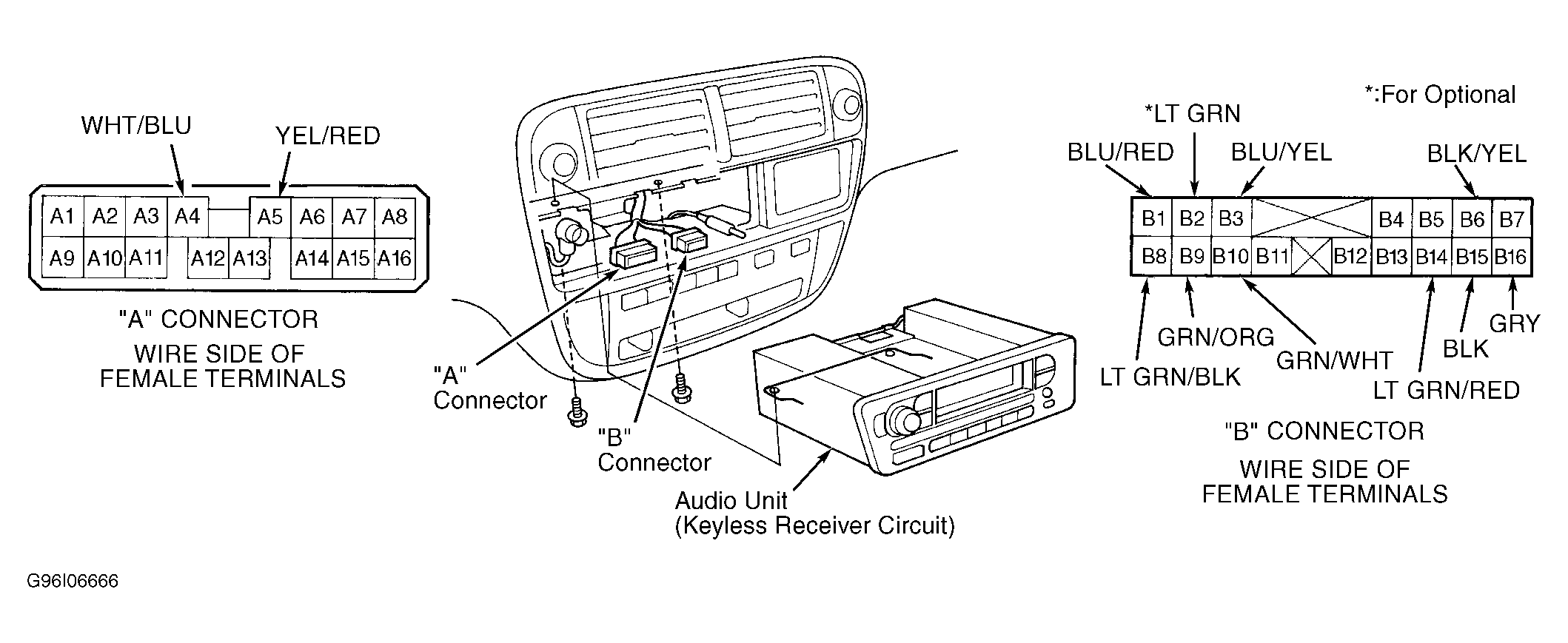

Fig 1: Identifying Power Door Locks Control Unit (W/Keyless Entry)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

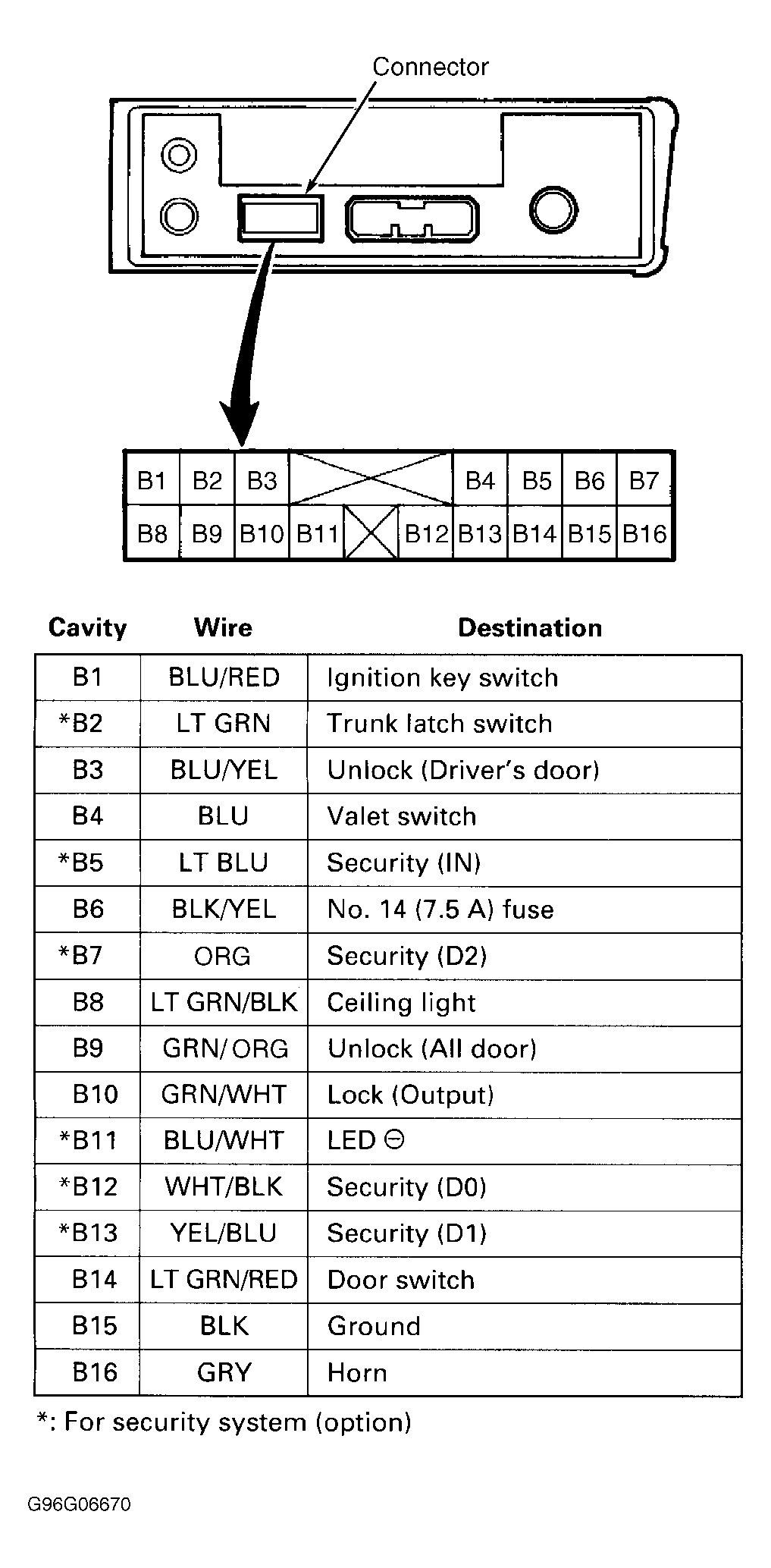

Fig 2: Keyless Entry Connector Terminals (W/Keyless Entry)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

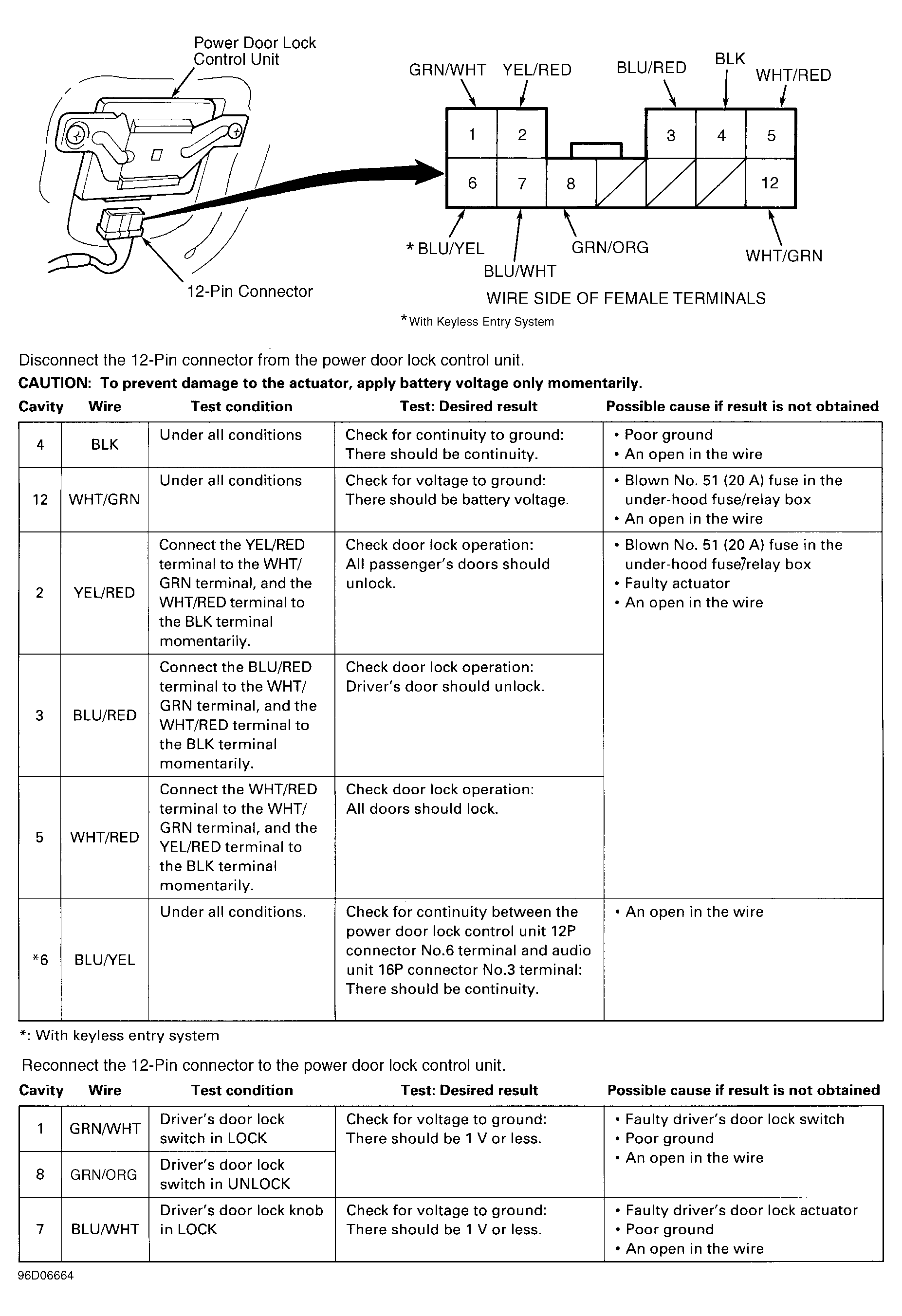

Fig 3: Power Door Locks Control Unit Input Test (W/O Keyless Entry)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

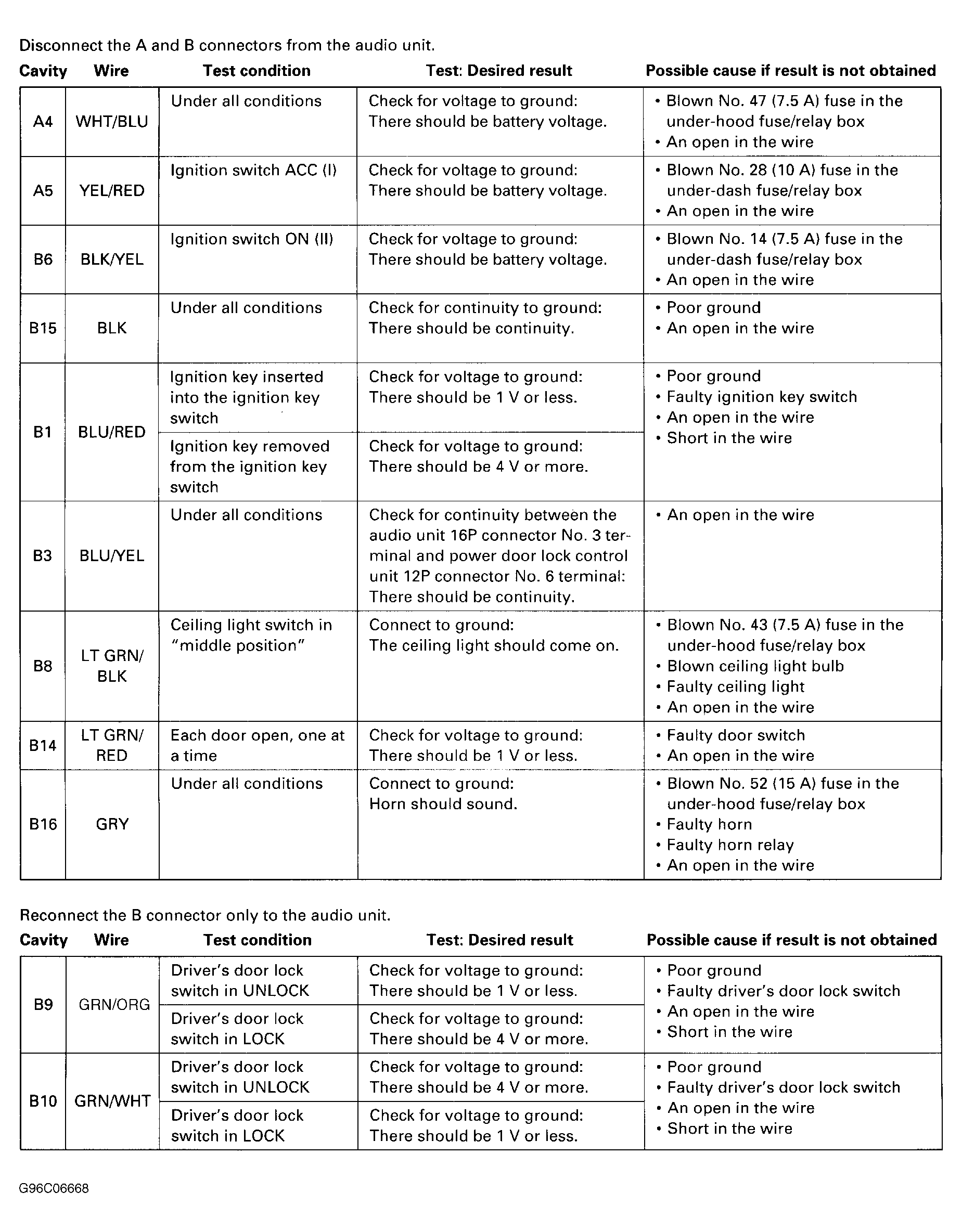

Fig 4: Power Door Locks Control Unit Input Test (W/Keyless Entry)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
