Civic LX, Automatic
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Self-Diagnostics
›
Abs Control Unit
Abs Control Unit

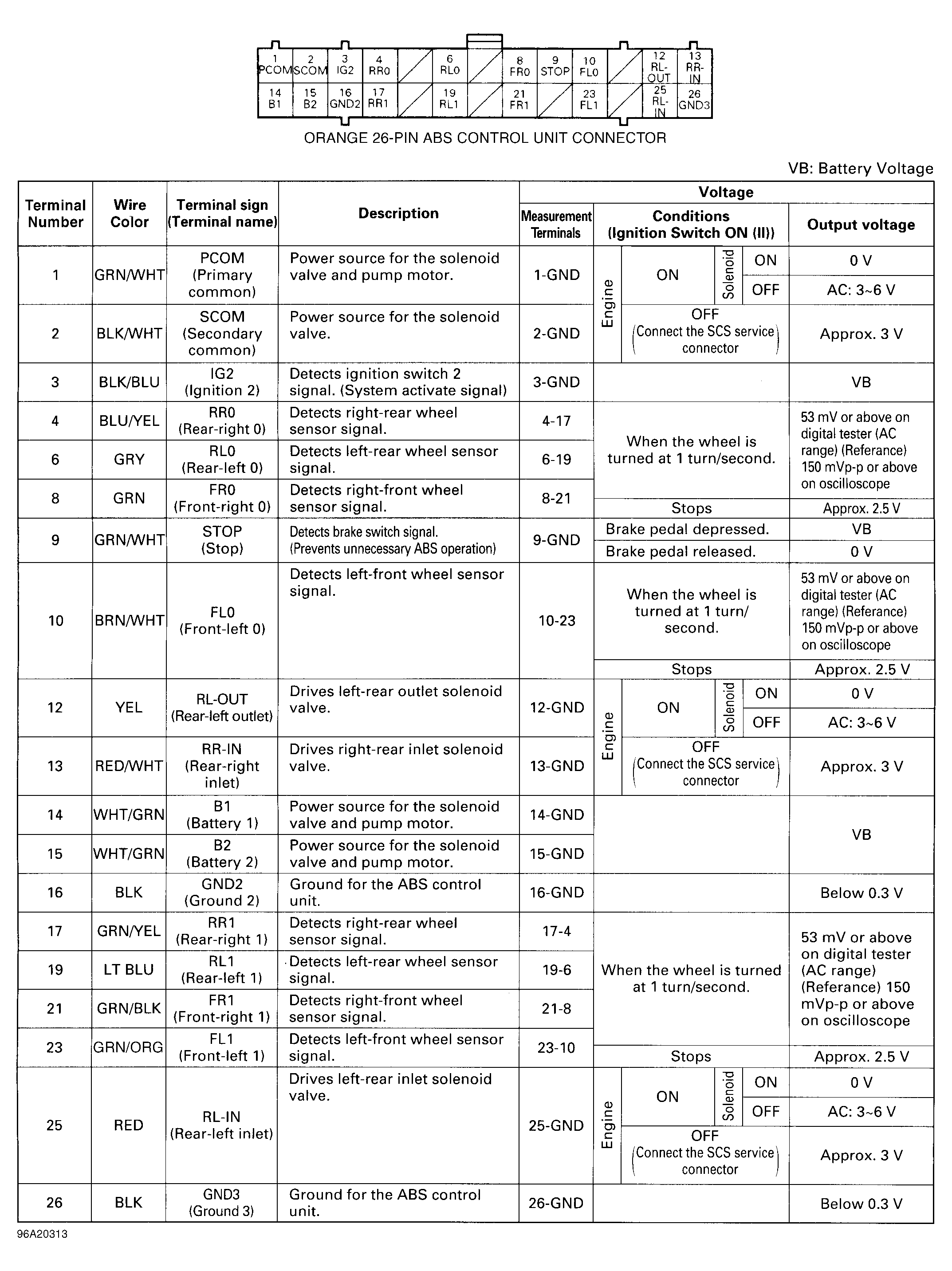

Fig 1: ABS Control Unit Connector Terminal Identification (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

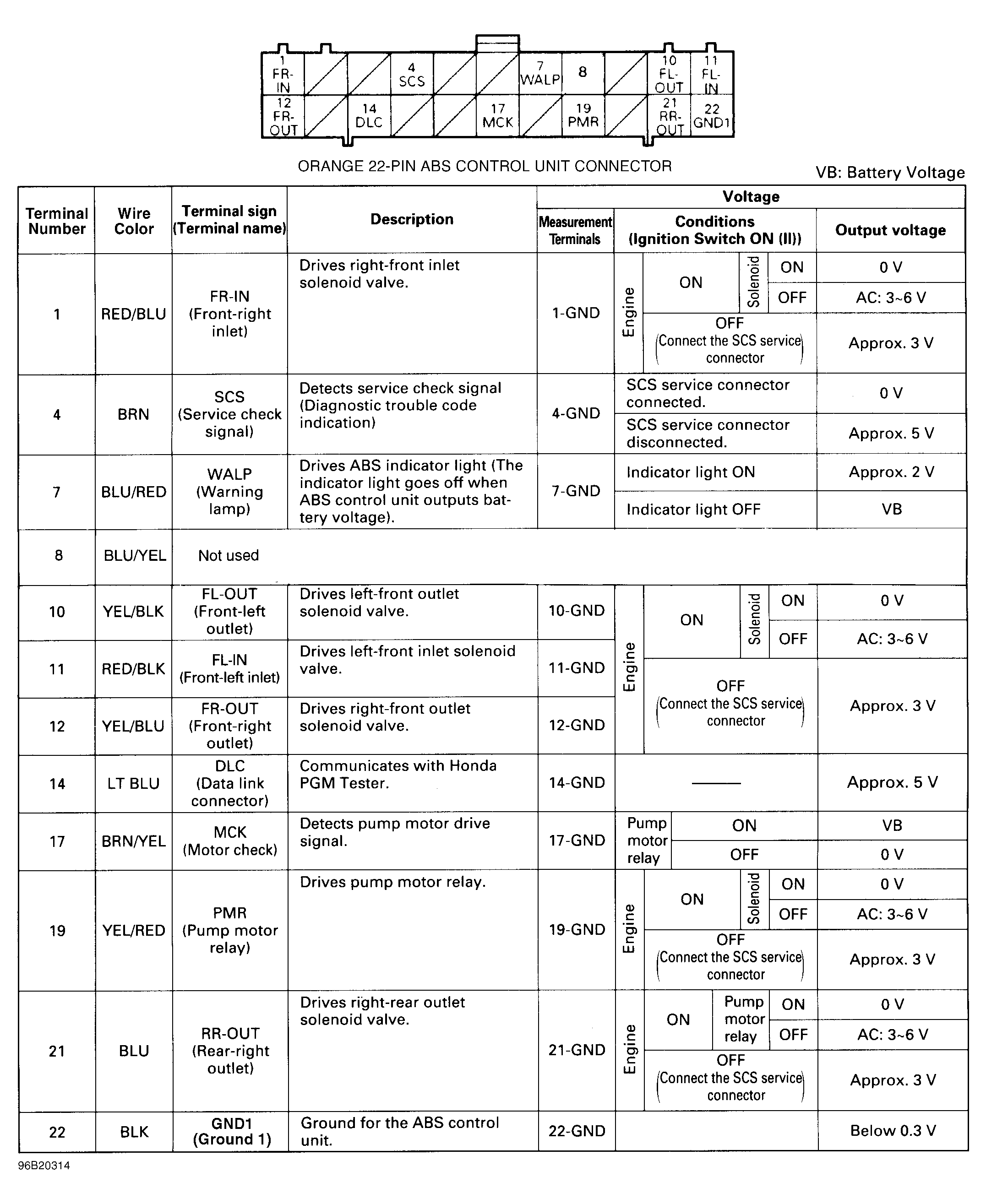

Fig 2: ABS Control Unit Connector Terminal Identification (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
