Ignition Key Light Test
- Remove the dashboard lower cover and knee bolster.

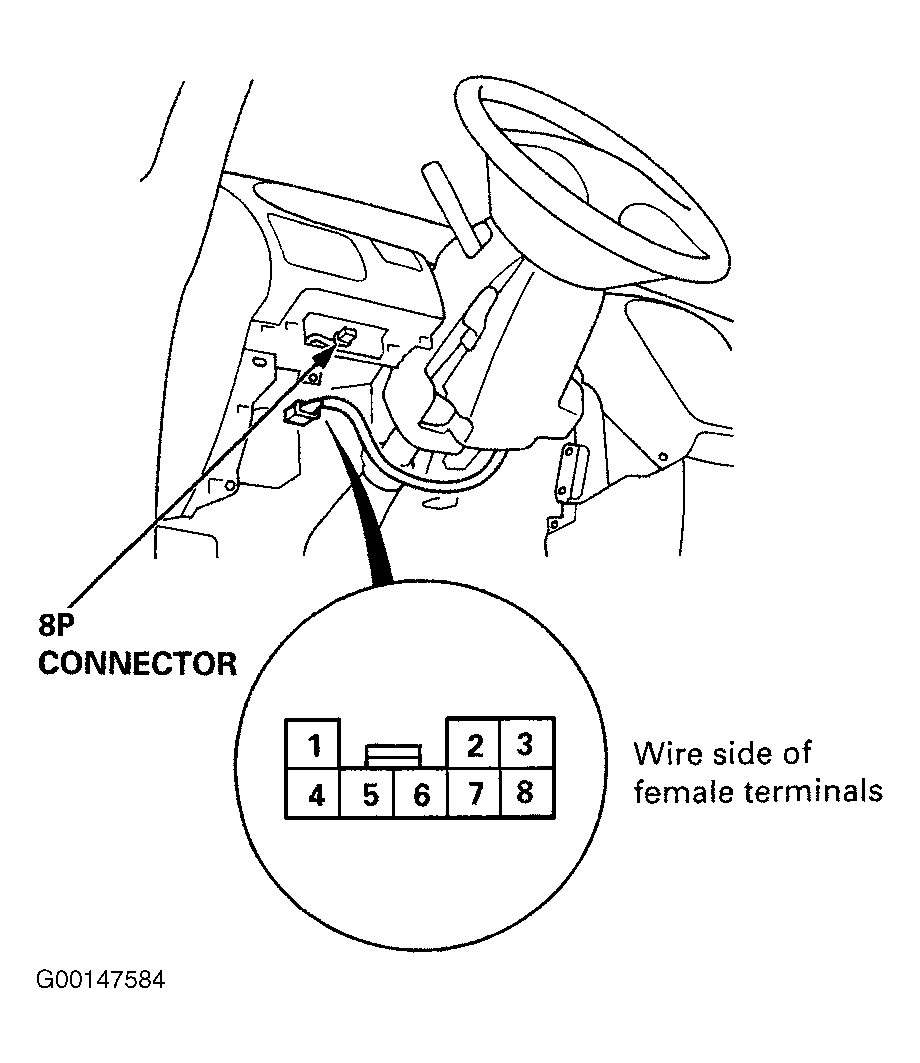

- Disconnect the 8-P connector from the main wire harness. See Figure .
- Check for continuity between the No. 1 and No. 3 terminals. There should be no continuity. If the is continuity, replace the ignition key light.
