UNDERDASH Fuse Panel Identification
›
Notes
UNDERDASH Fuse Panel Identification: Notes

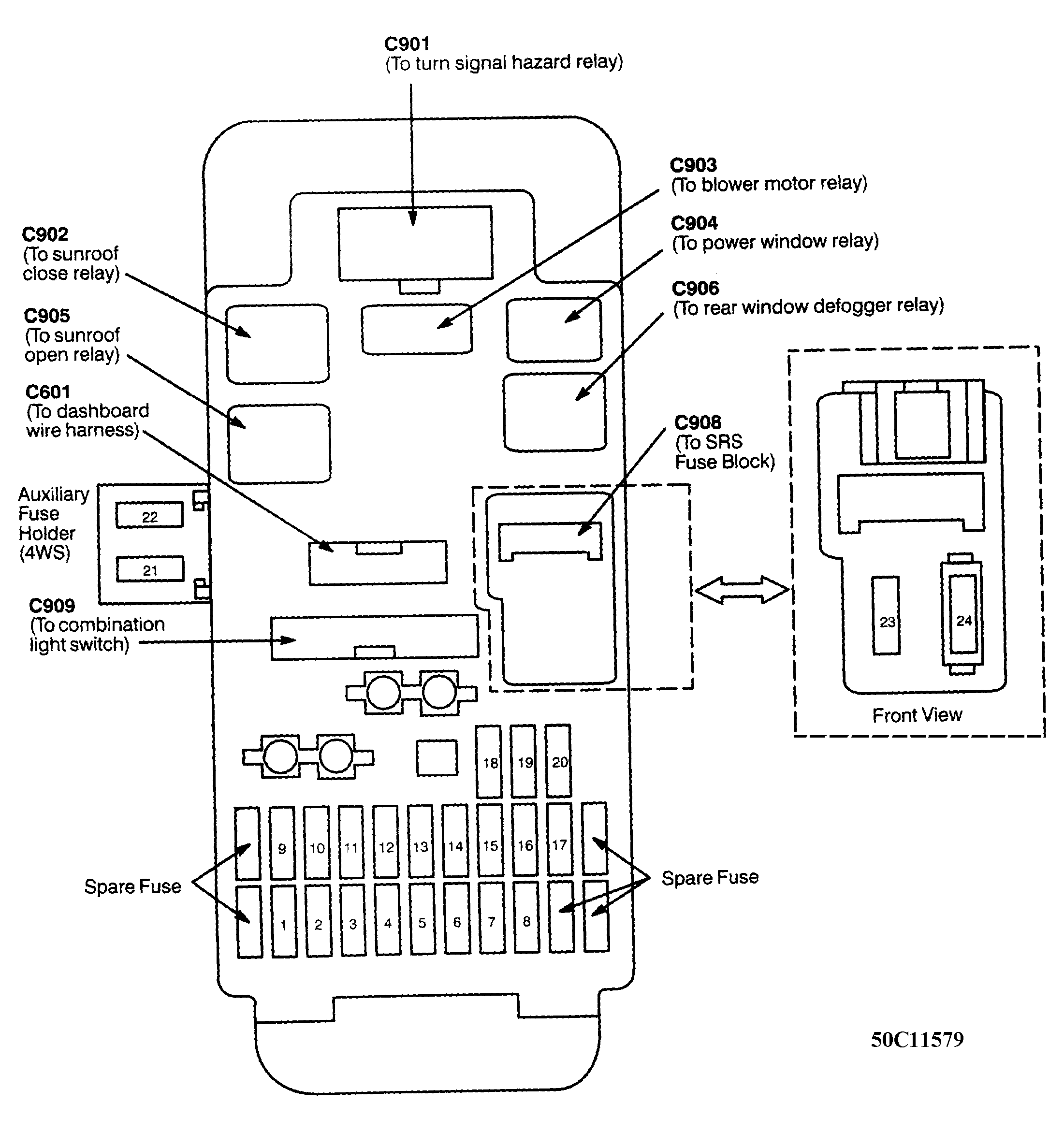

Fig 1: Underdash Fuse Panel Identification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
