Ignition Switch Test

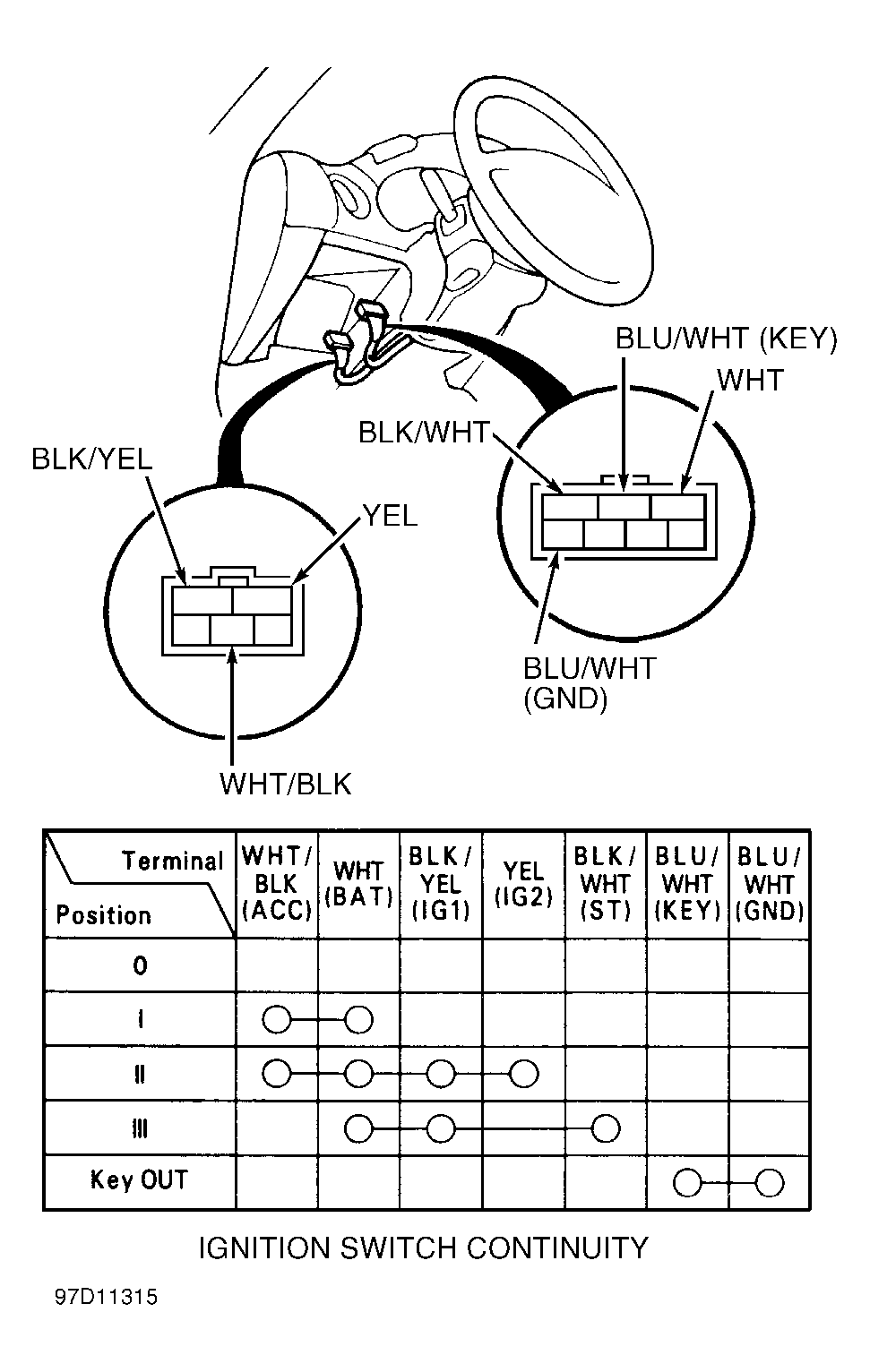

- Remove lower instrument panel cover and driver's side knee bolster. Disconnect 5-pin connector from dash fuse box and 7-pin connector from main harness. See Fig 1 .
- Using a DVOM, check continuity between specified connector terminals, with ignition switch in appropriate position. If continuity is not as specified, replace ignition switch.
