Mode Control Switch
WARNING: This page is about a different car, the 1997 Honda Civic del Sol and 1997 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

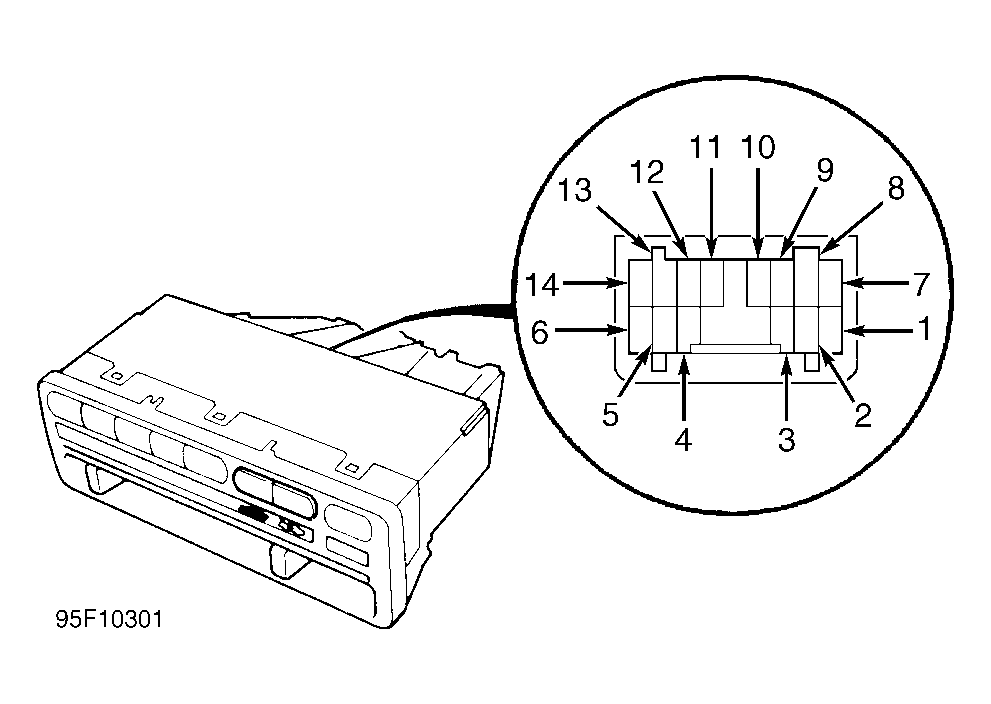

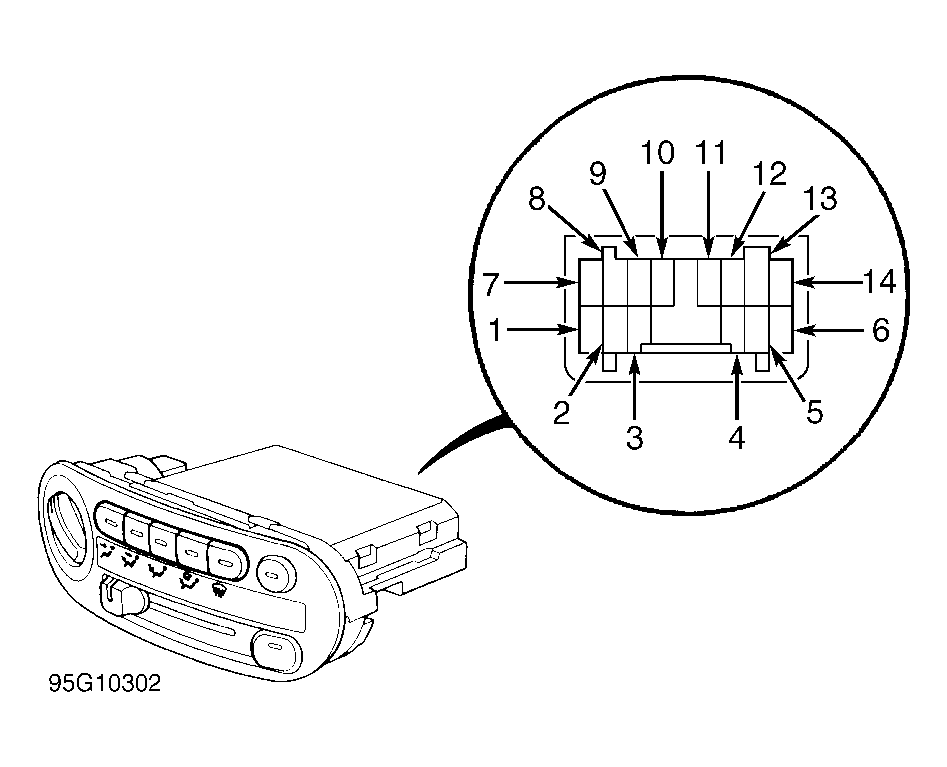

Remove heater control panel. Disconnect 14-pin connector. Check for continuity between the specified terminals of the heater control panel 14-pin connector. See MODE CONTROL SWITCH TEST table. See Fig 1 or Fig 2. If continuity does not exist, replace heater control panel.
MODE CONTROL SWITCH TEST
| Switch Position | Continuity Should Exist Between These Terminals | |
|---|---|---|
| Civic | ||
| Vent (Face) | 8 & 10 | |
| Bi-Level (Face/Foot) | 9 & 10 | |
| Heat (Foot) | 7 & 10 | |
| Heat/Defrost (Foot/Windshield) | 1 & 10 | |
| Defrost (Windshield) | 4 & 10 | |
| Civic Del Sol | ||
| Vent (Face) | 3 & 14 | |
| Bi-Level (Face/Foot) | 3 & 13 | |
| Heat (Foot) | 3 & 6 | |
| Heat/Defrost (Foot/Windshield) | 3 & 5 | |
| Defrost (Windshield) | 3 & 4 | |
