Driver's Control Unit Input Test

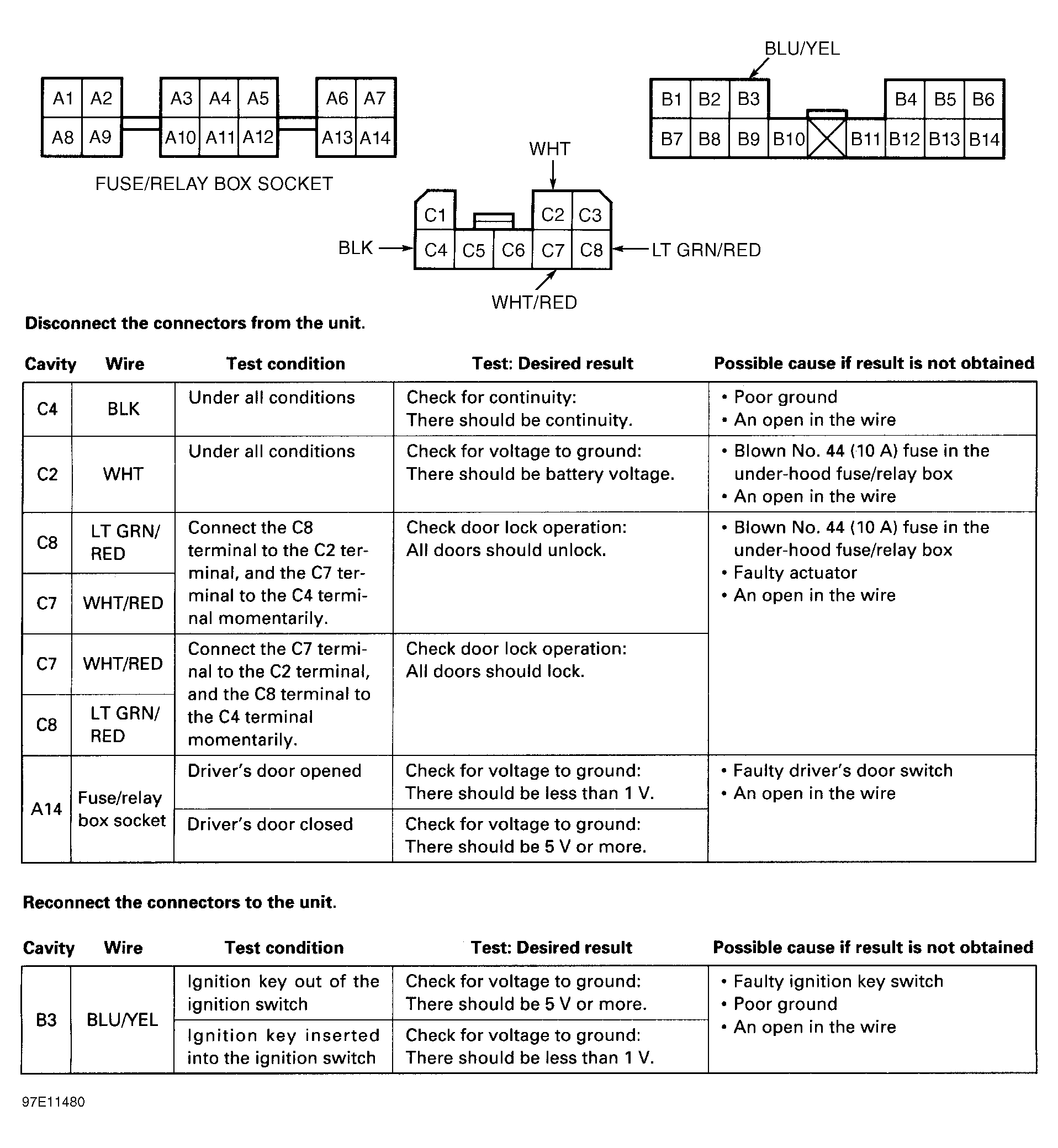

Remove underdash fuse/relay block. See REMOVAL & INSTALLATION . Remove driver's unit from fuse/relay block. Inspect connector terminals for damage or corrosion. Repair of replace as necessary. Using a DVOM, perform driver's multiplex control unit input test. See Fig 1 . If all input tests are okay, replace driver's multiplex control unit. See REMOVAL & INSTALLATION .
