FixVault
Home
›
Honda
›
2000
›
Accord DX, Automatic, BAXA
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Intake Air System (4-CYL)
›
Throttle Body Disassembly/Reassembly
Throttle Body Disassembly/Reassembly

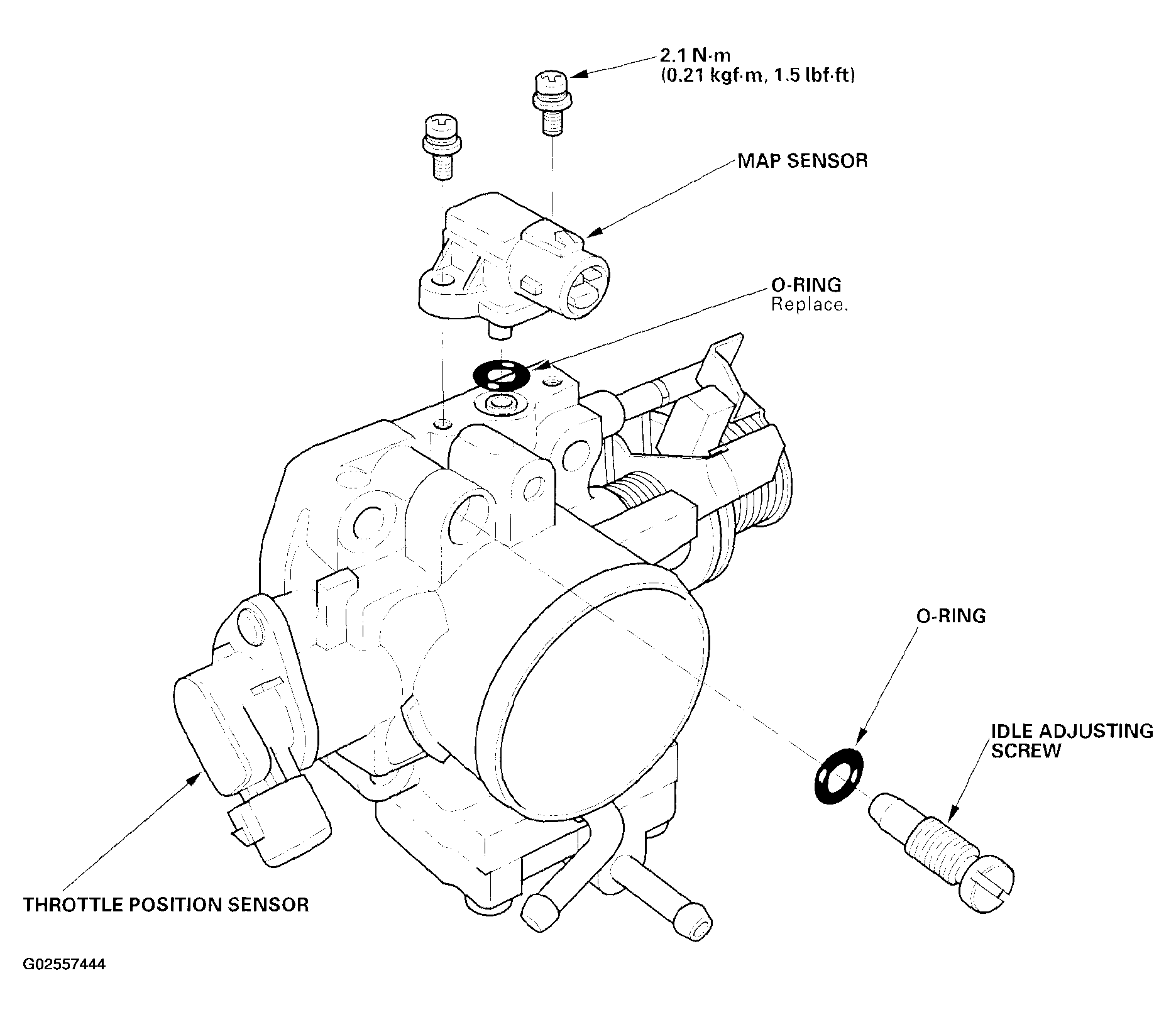

Fig 1: Disassembling/Reassembling Throttle Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
