Master Switch Replacement

  1. Remove the screw and master switch assembly from the door panel.

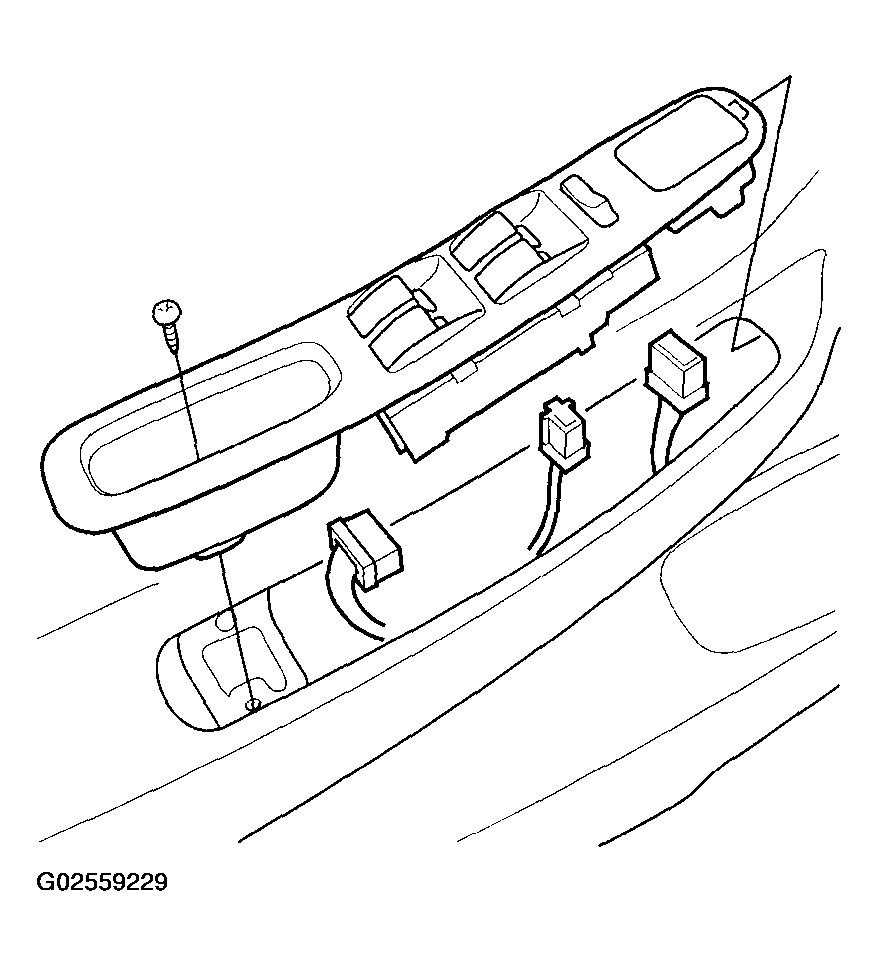

    Fig 1: Removing Screw & Master Switch Assembly From Door Panel
    G02559229Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the four mounting screws, then remove the master switch from the panel.

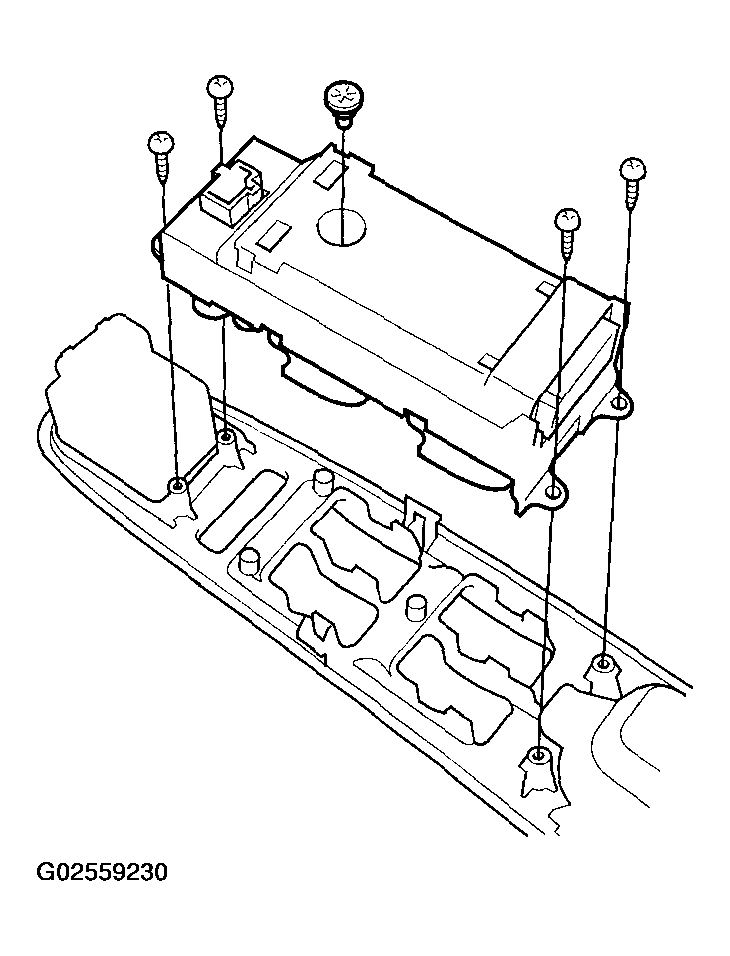

    Fig 2: Removing Four Mounting Screws & Removing Master Switch From Panel
    G02559230Courtesy of AMERICAN HONDA MOTOR CO., INC.
