Ignition System (4-CYL)
›
Circuit Diagram
Circuit Diagram

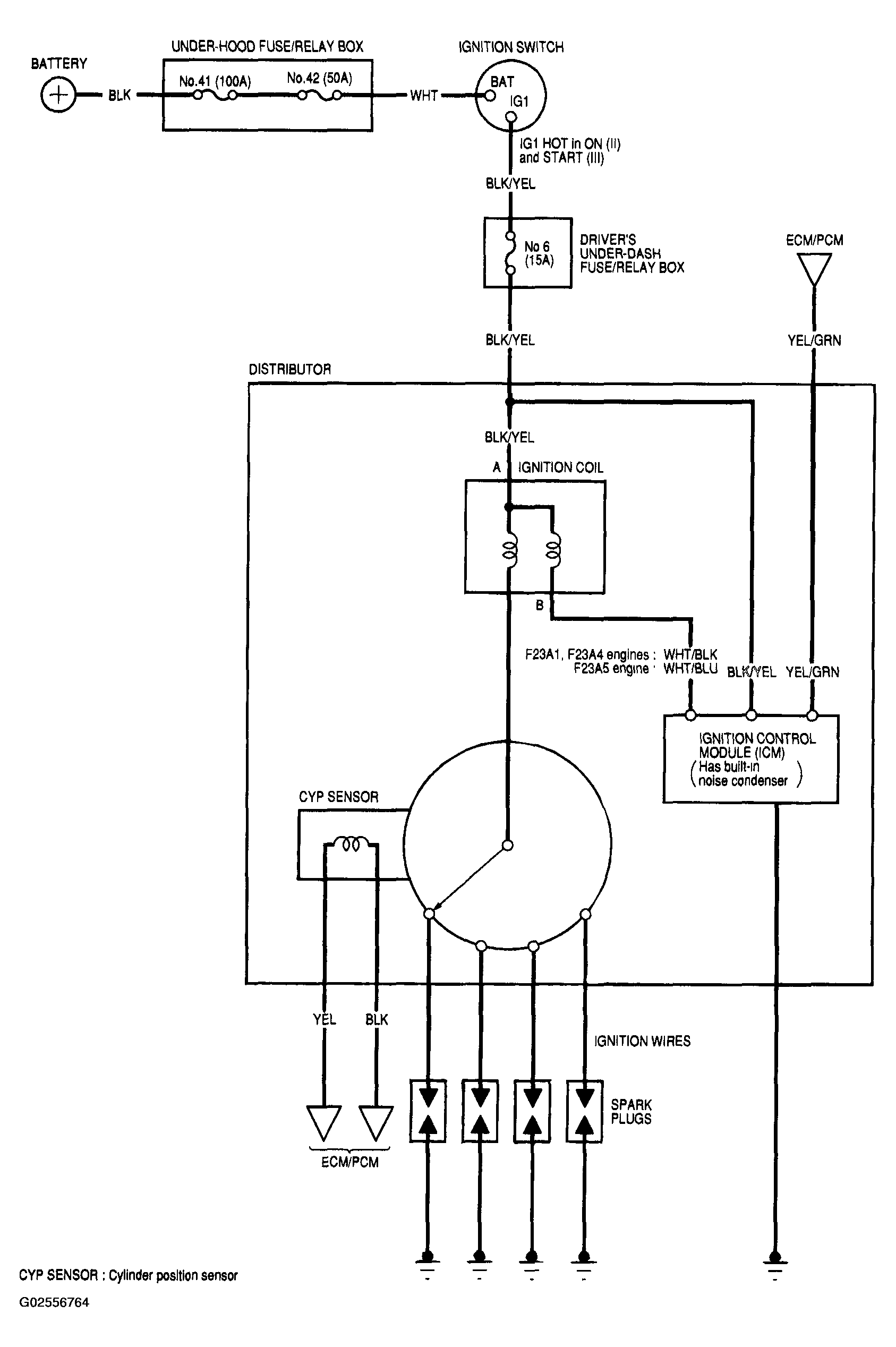

Fig 1: Ignition System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
