Accord DX, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel System & Emission Systems (4-CYL)
›
System Descriptions
›
ECM/PCM Electrical Connections
ECM/PCM Electrical Connections

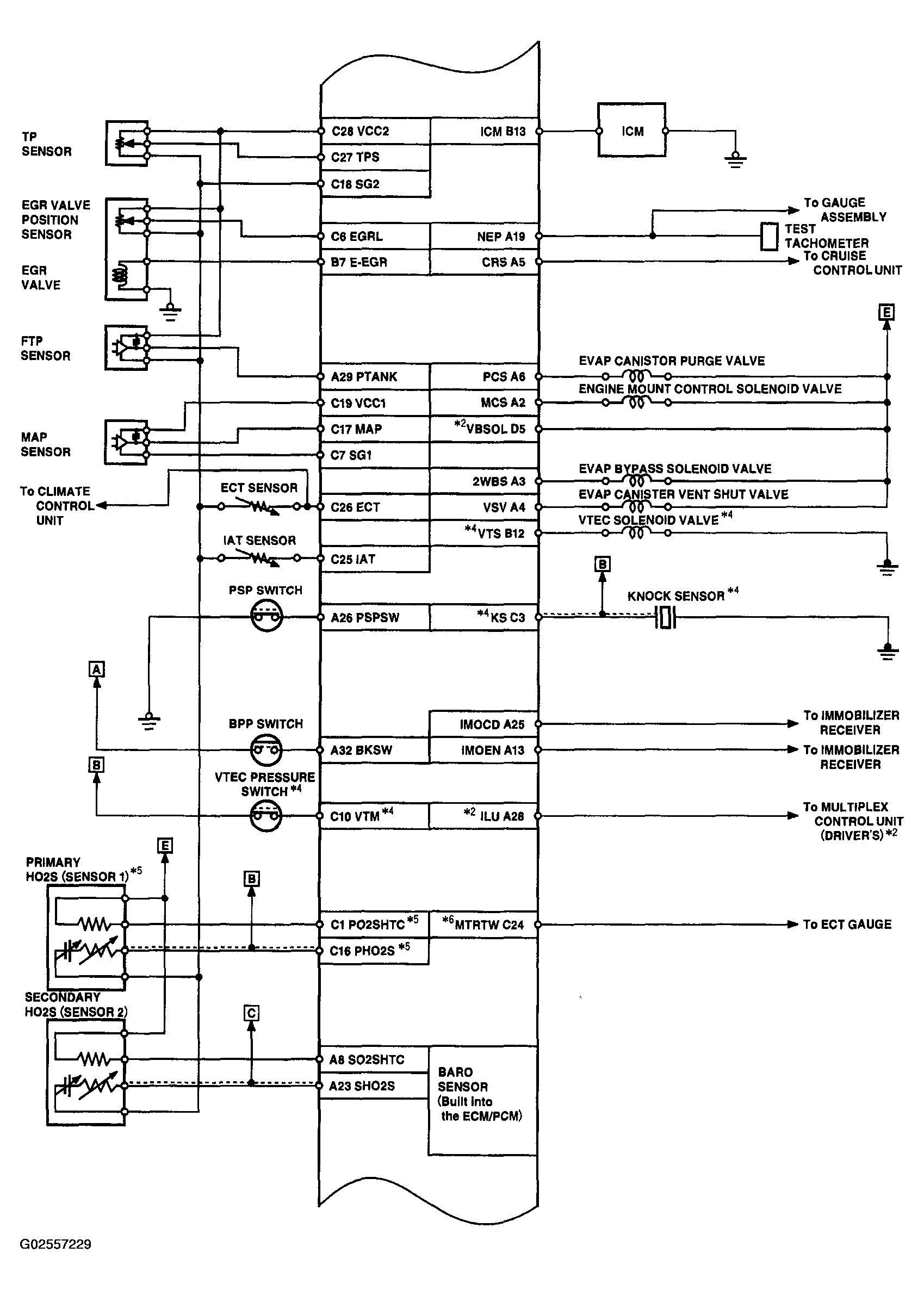

Fig 1: ECM/PCM Electrical Connections Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

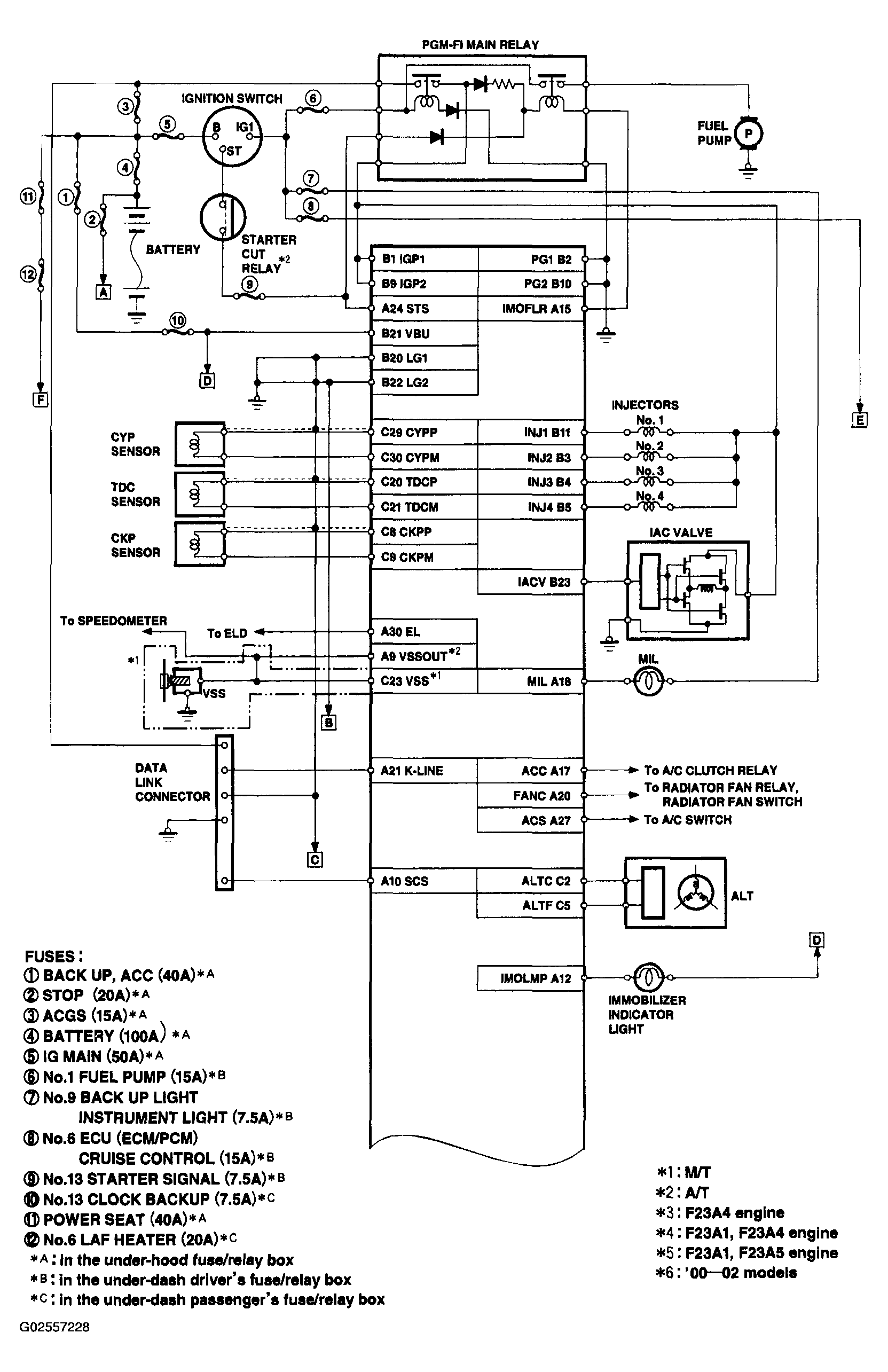

Fig 2: ECM/PCM Electrical Connections Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

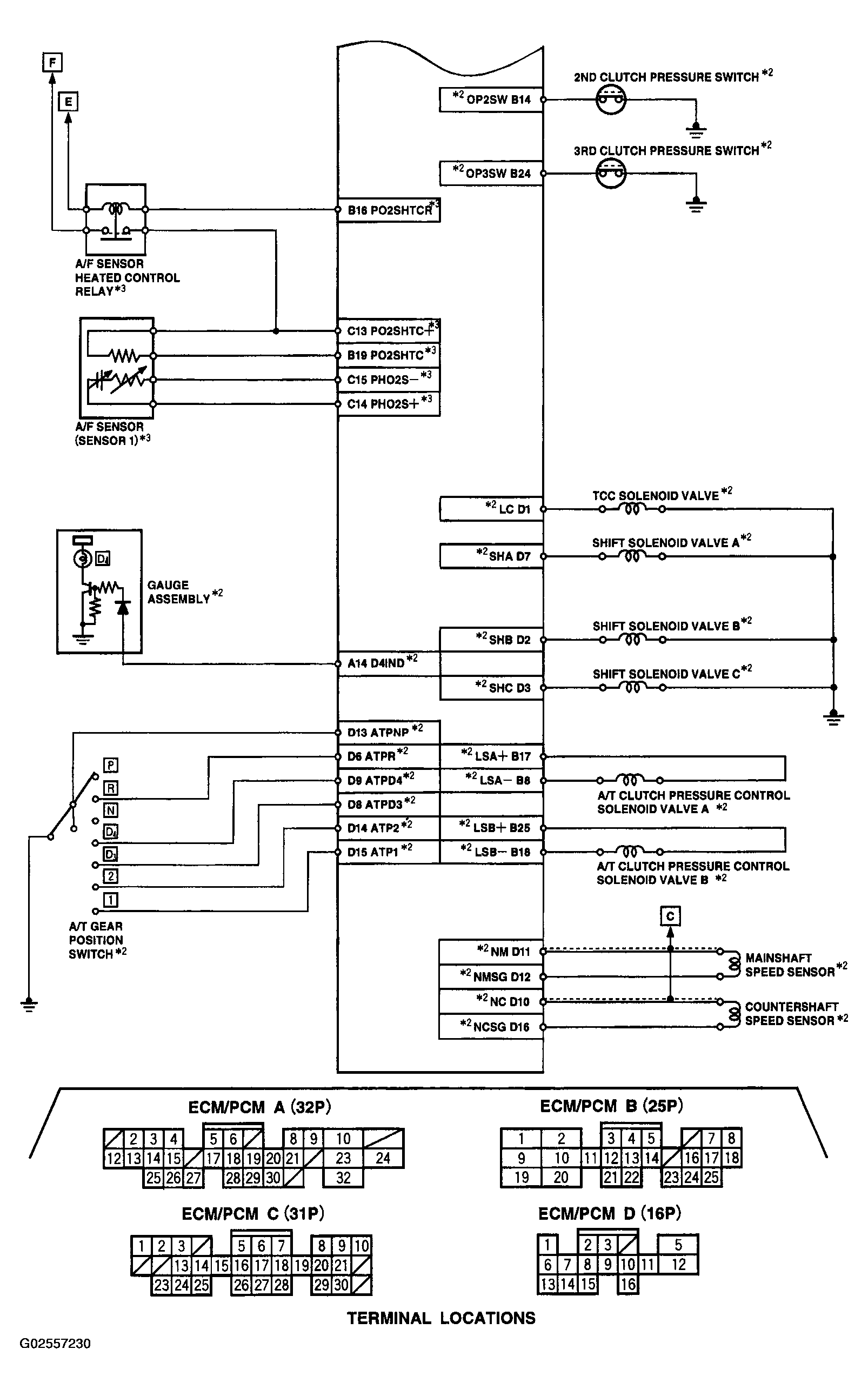

Fig 3: ECM/PCM Electrical Connections Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
