Intake Air System Diagram

This system supplies air for engine needs. A resonator in the air intake duct provides additional silencing as air is drawn into the system.

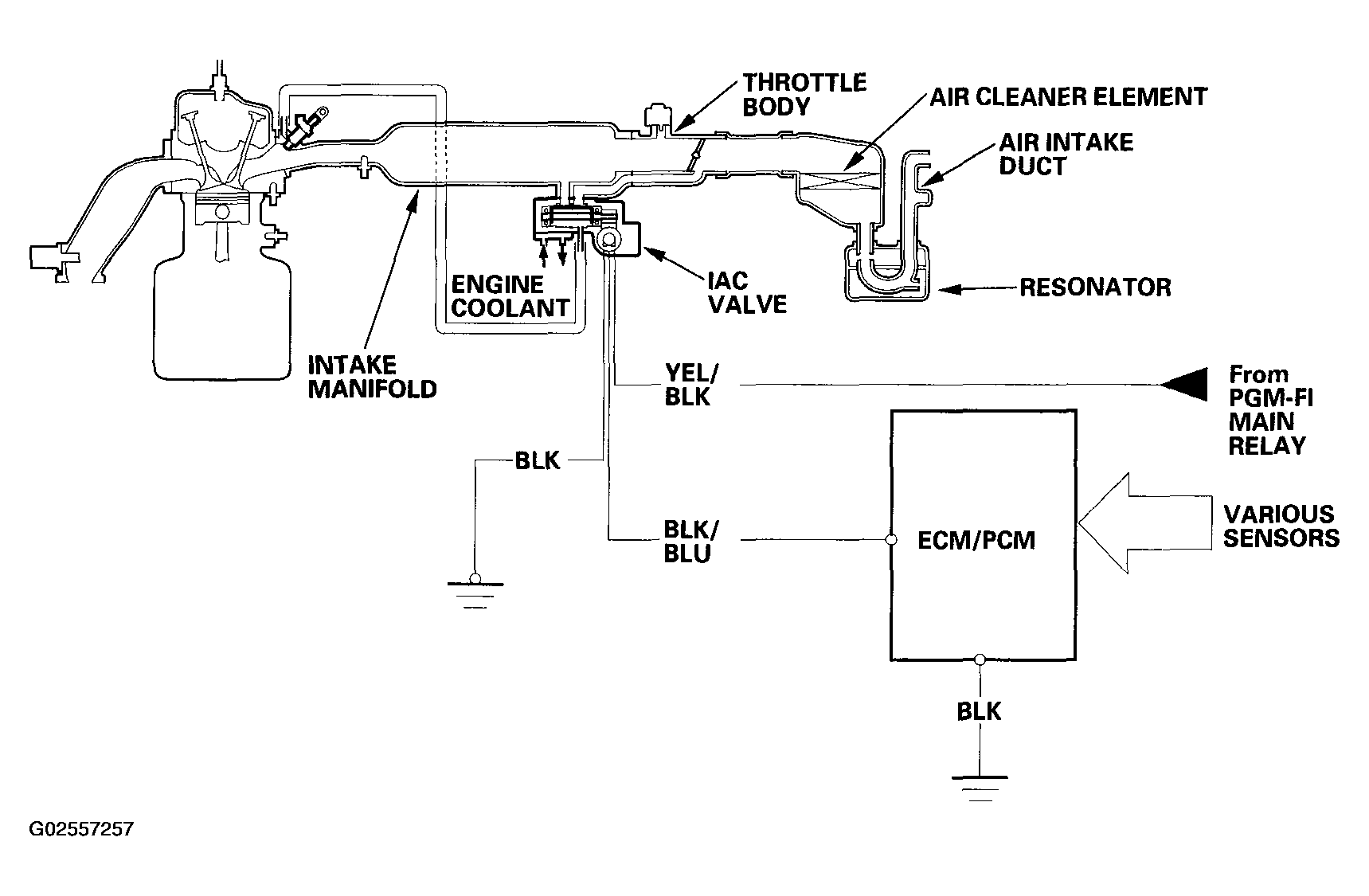

Fig 1: Identifying Intake Air System Functional Layout

Courtesy of AMERICAN HONDA MOTOR CO., INC.
