Component Locations

COMPONENT LOCATIONS

Component Location
Door Switch (4) Rear Of Respective Door Striker Area.
Driver's Seat Belt Switch In Driver's Seat Belt Buckle.
Integrated Control Unit Rear Of Underdash Fuse/Relay Box. See Fig 1 .
Underdash Fuse/Relay Box Behind Instrument Panel, Left Of Steering Column. See Fig 1 .
Underhood Fuse/Relay Box Right Rear Corner Of Engine Compartment. See Fig 2 .
G101 On Thermostat Housing. See Fig 3 .
G401 Under Driver's Side Of Instrument Panel. See Fig 4 .
G402 Under Passenger's Side Of Instrument Panel. See Fig 5 .
G552 Under Driver's Seat. See Fig 6 .

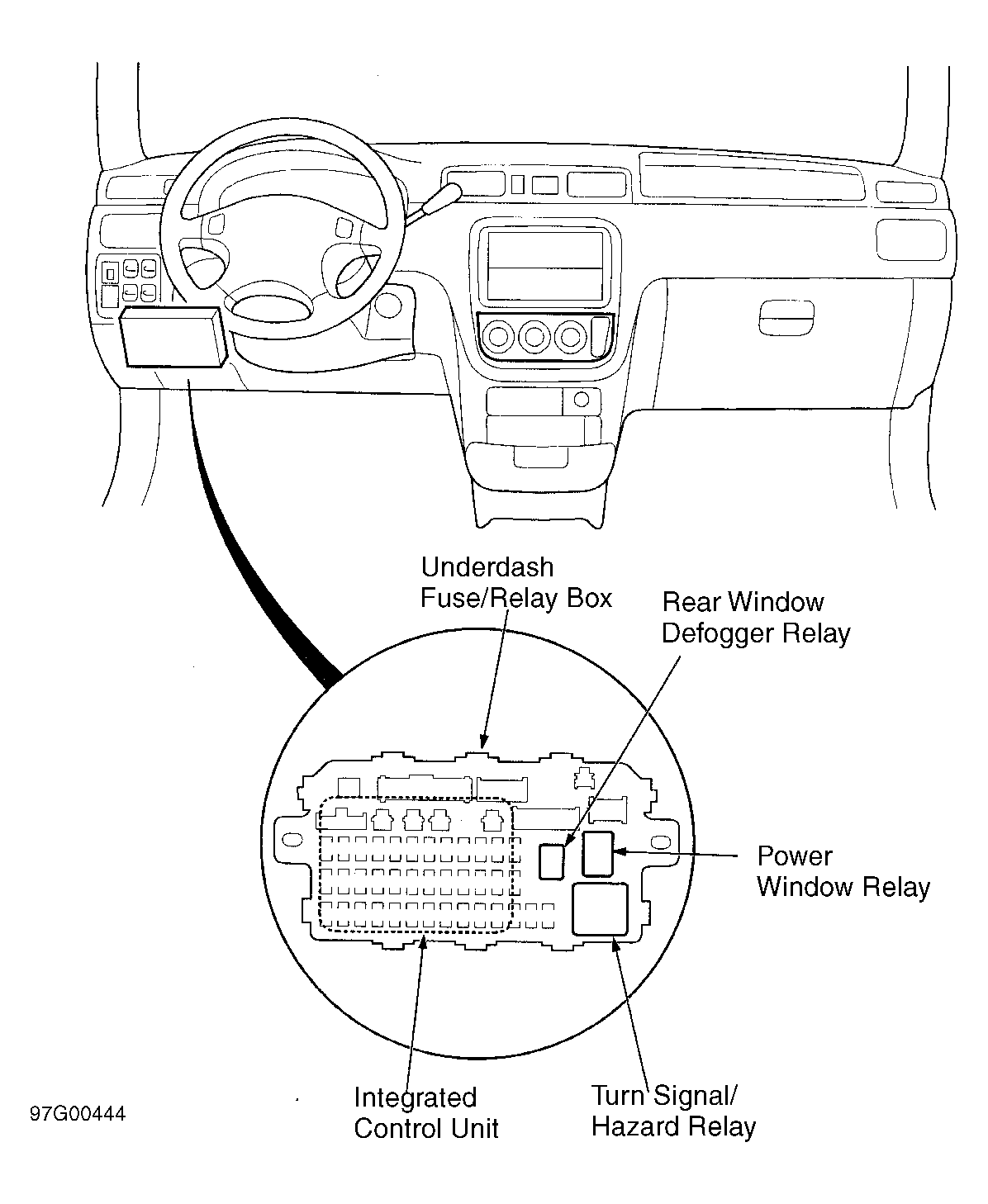

Fig 1: Locating Underdash Fuse/Relay Box & Integrated Control Unit
G97G00444Courtesy of AMERICAN HONDA MOTOR CO., INC.

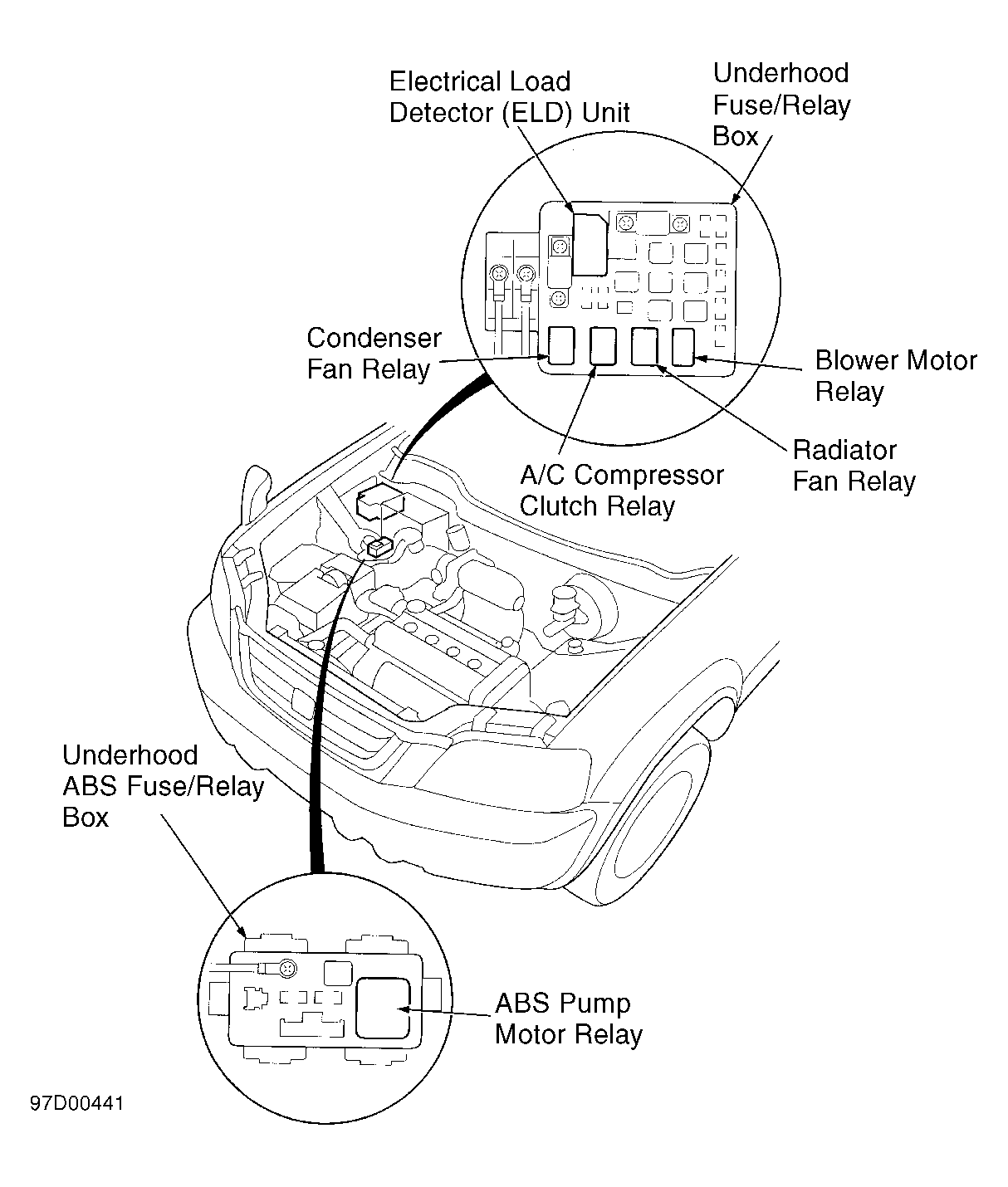

Fig 2: Locating Underhood Fuse/Relay Box
G97D00441Courtesy of AMERICAN HONDA MOTOR CO., INC.

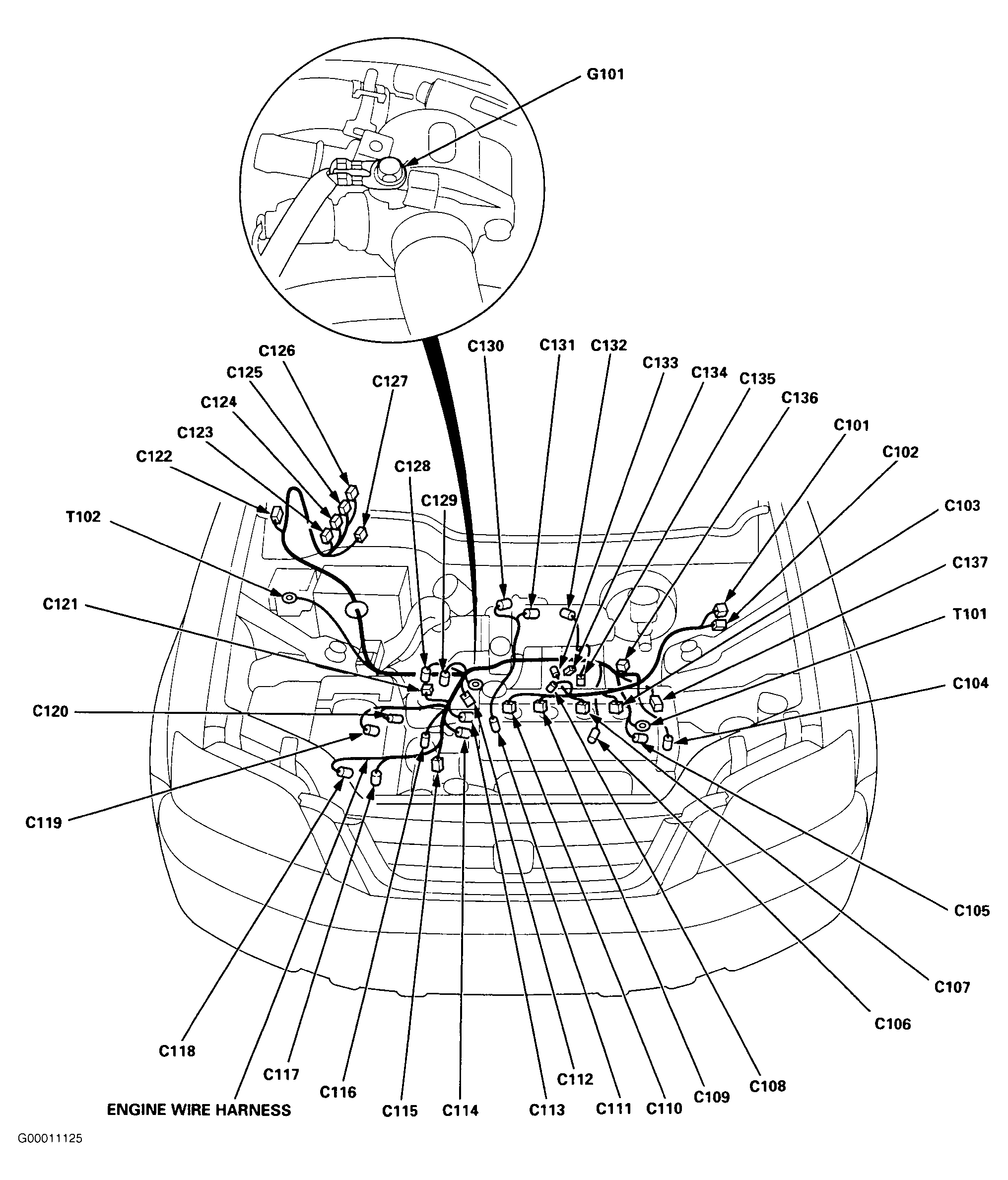

Fig 3: Locating Ground G101
G00011125Courtesy of AMERICAN HONDA MOTOR CO., INC.

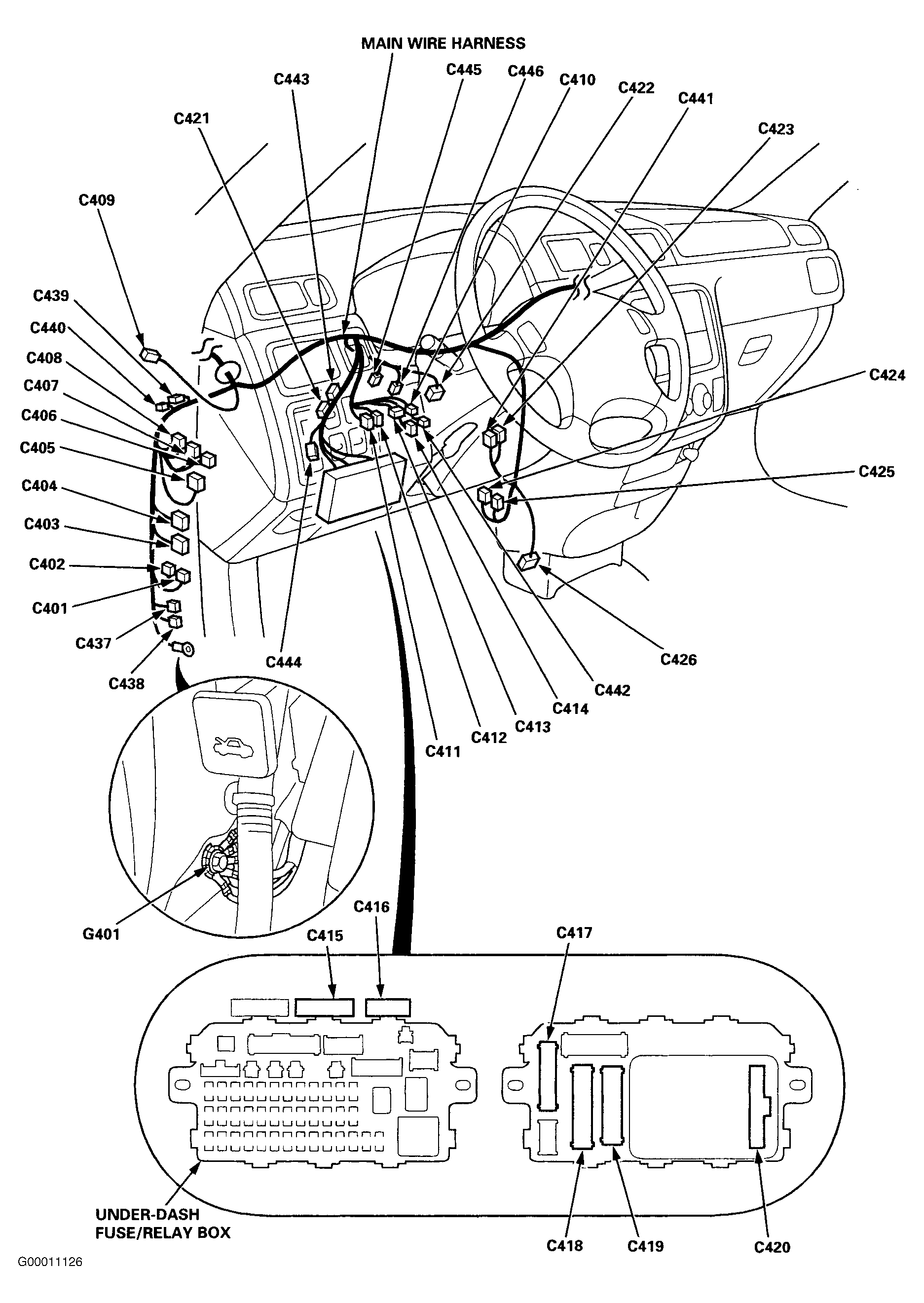

Fig 4: Locating Ground G401
G00011126Courtesy of AMERICAN HONDA MOTOR CO., INC.

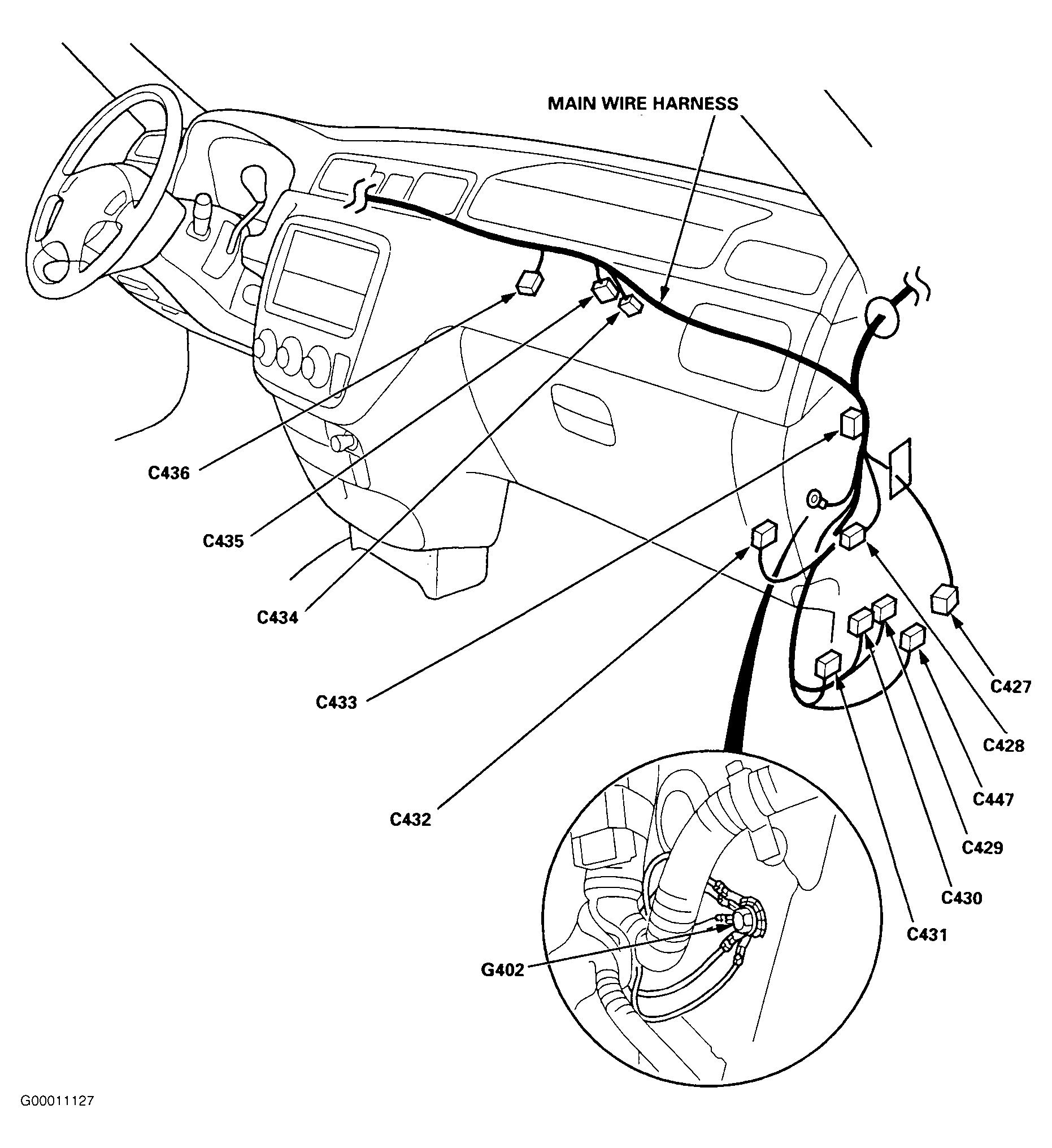

Fig 5: Locating Ground G402
G00011127Courtesy of AMERICAN HONDA MOTOR CO., INC.

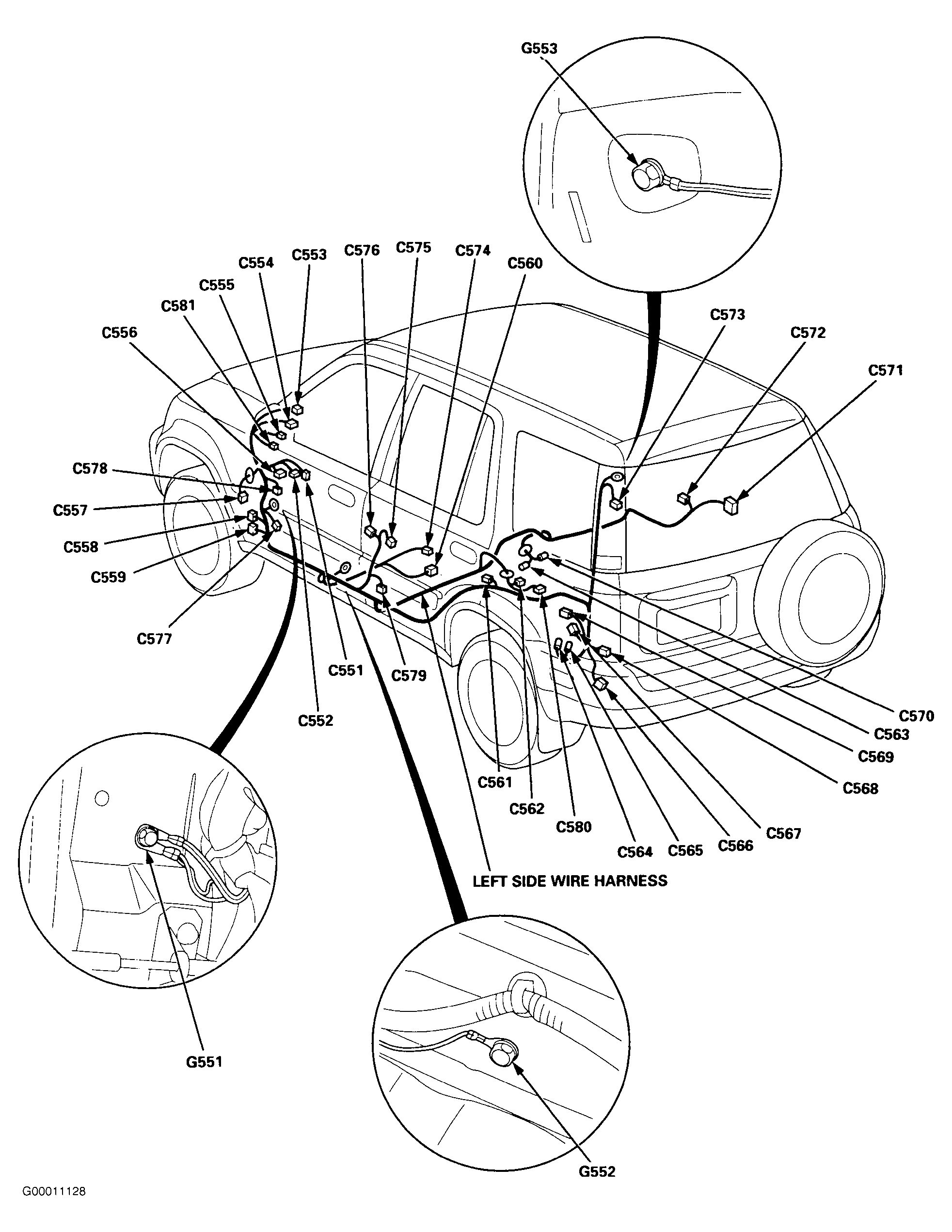

Fig 6: Locating Ground G552
G00011128Courtesy of AMERICAN HONDA MOTOR CO., INC.
