Power Door Lock Control Unit

1. Remove driver's door panel. Disconnect 18-pin connector from power door lock control unit. Using DVOM, perform input tests. See Fig 1 . Go to next step.
2. Reconnect power door lock control unit connector. Perform next input tests. See Fig 2 . If any test indicates a problem, locate and repair cause, then retest system. If all input tests are okay, inspect connector and terminals for damage and proper fit. If connector is okay, inputs are okay and power door lock system still malfunctions, replace power door lock control unit.

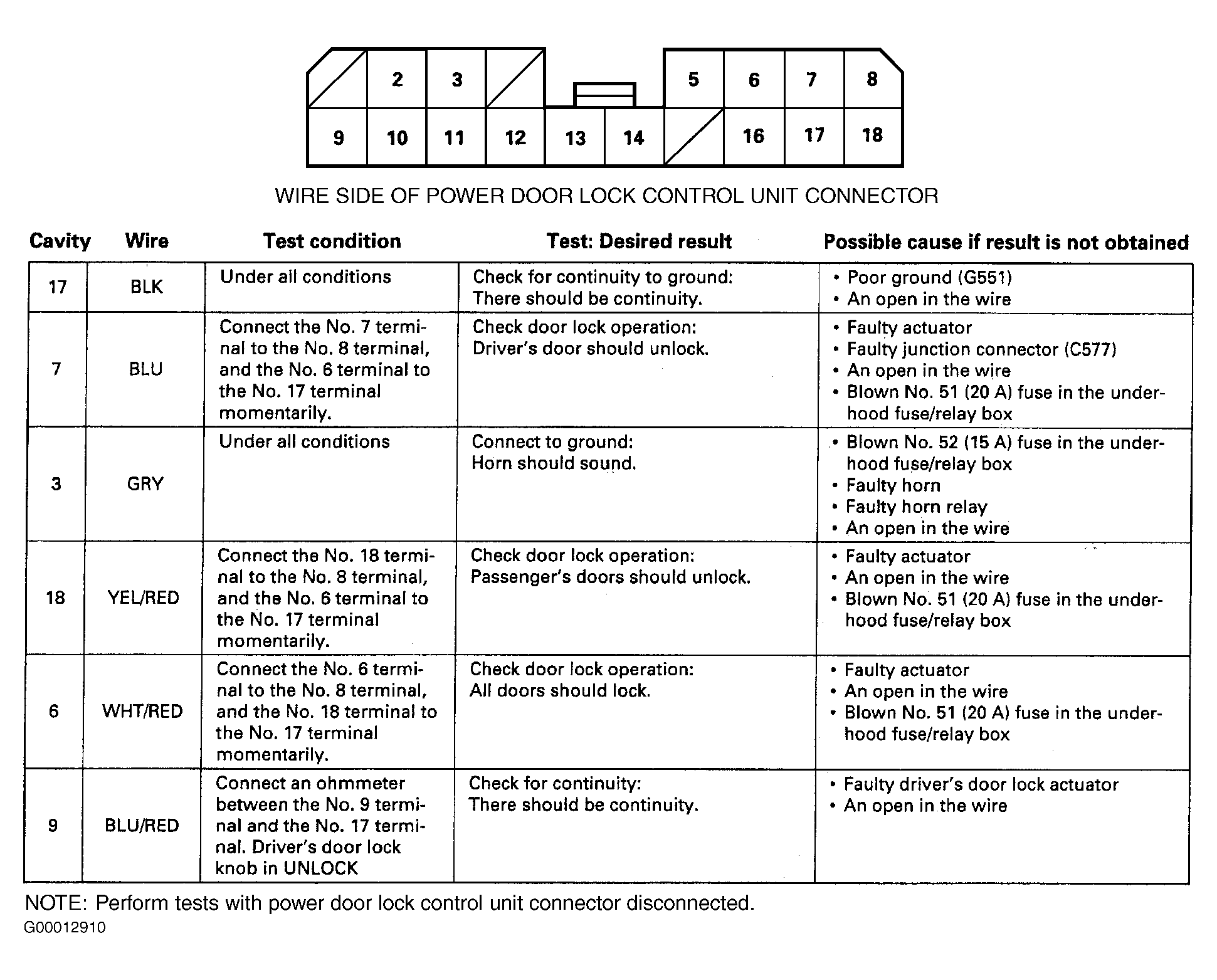

Fig 1: Power Door Lock Control Unit Input Test (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

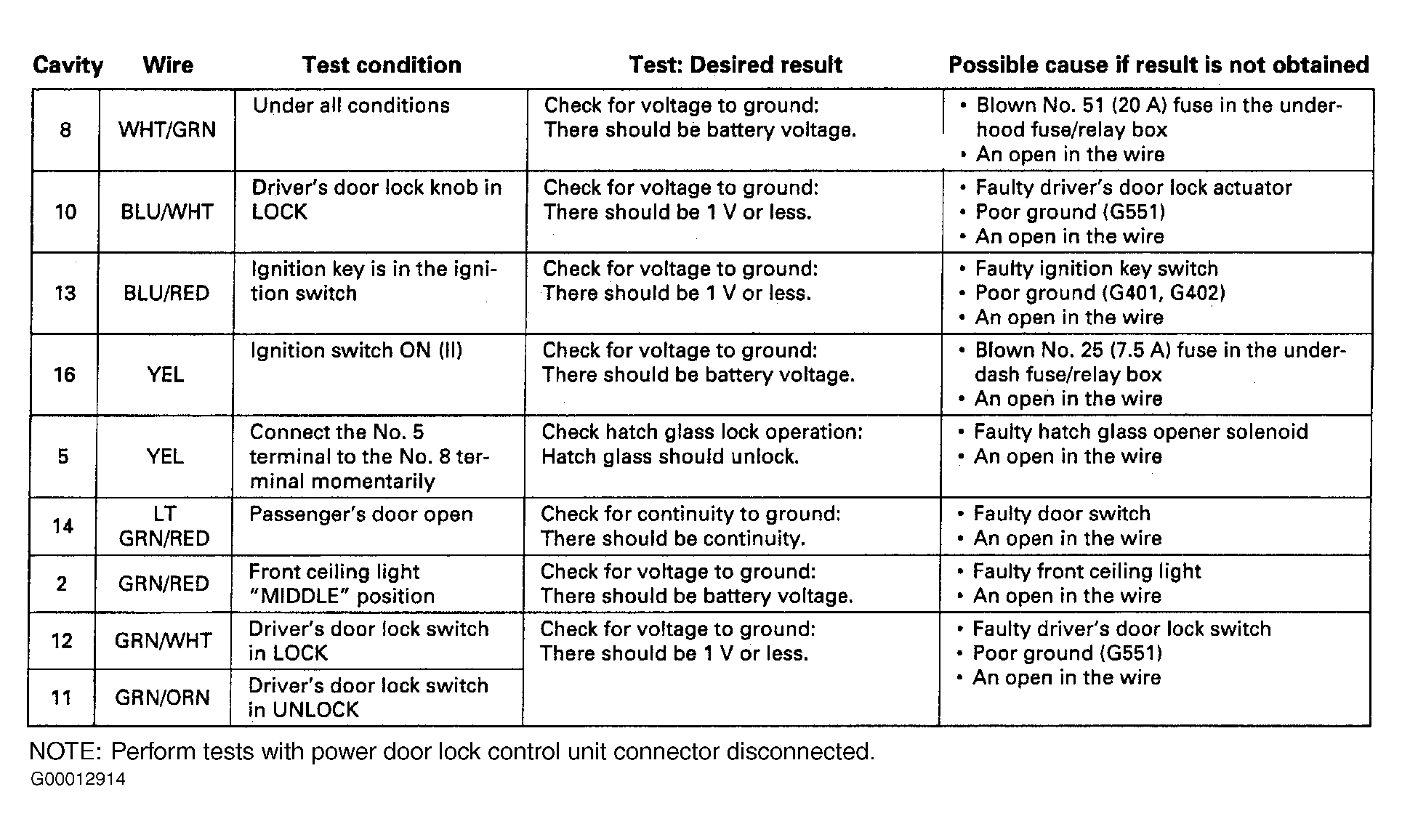

Fig 2: Power Door Lock Control Unit Input Test (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
