System Description
›
Brake Switch Signal
Brake Switch Signal
This signals the PCM when the brake pedal is depressed.

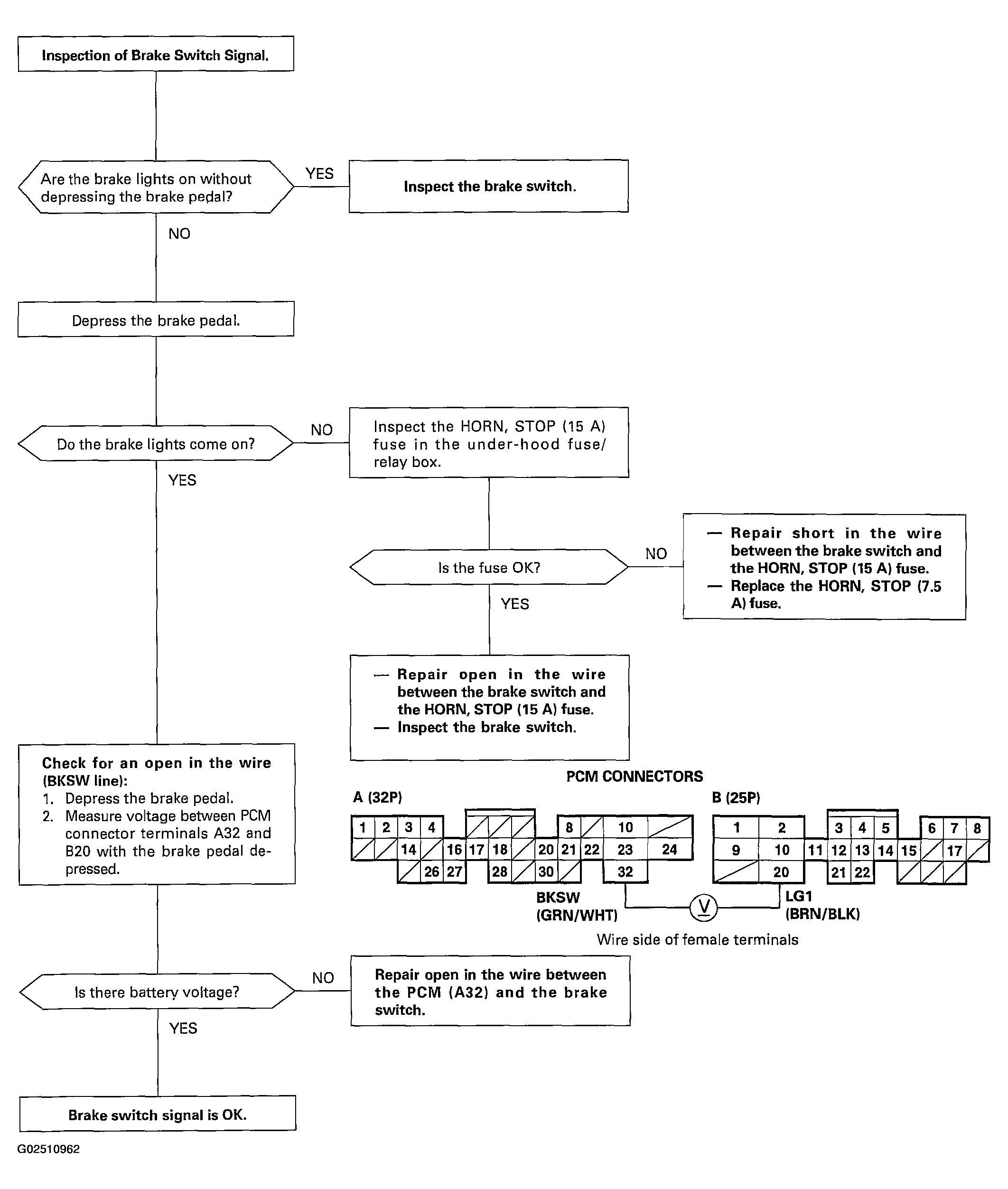

Fig 1: Brake Switch Signal Troubleshooting Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
