Idle Control System (GX)
›
System Description
›
Starter Switch Signal
Starter Switch Signal
This signals the PCM when the engine is cranking.

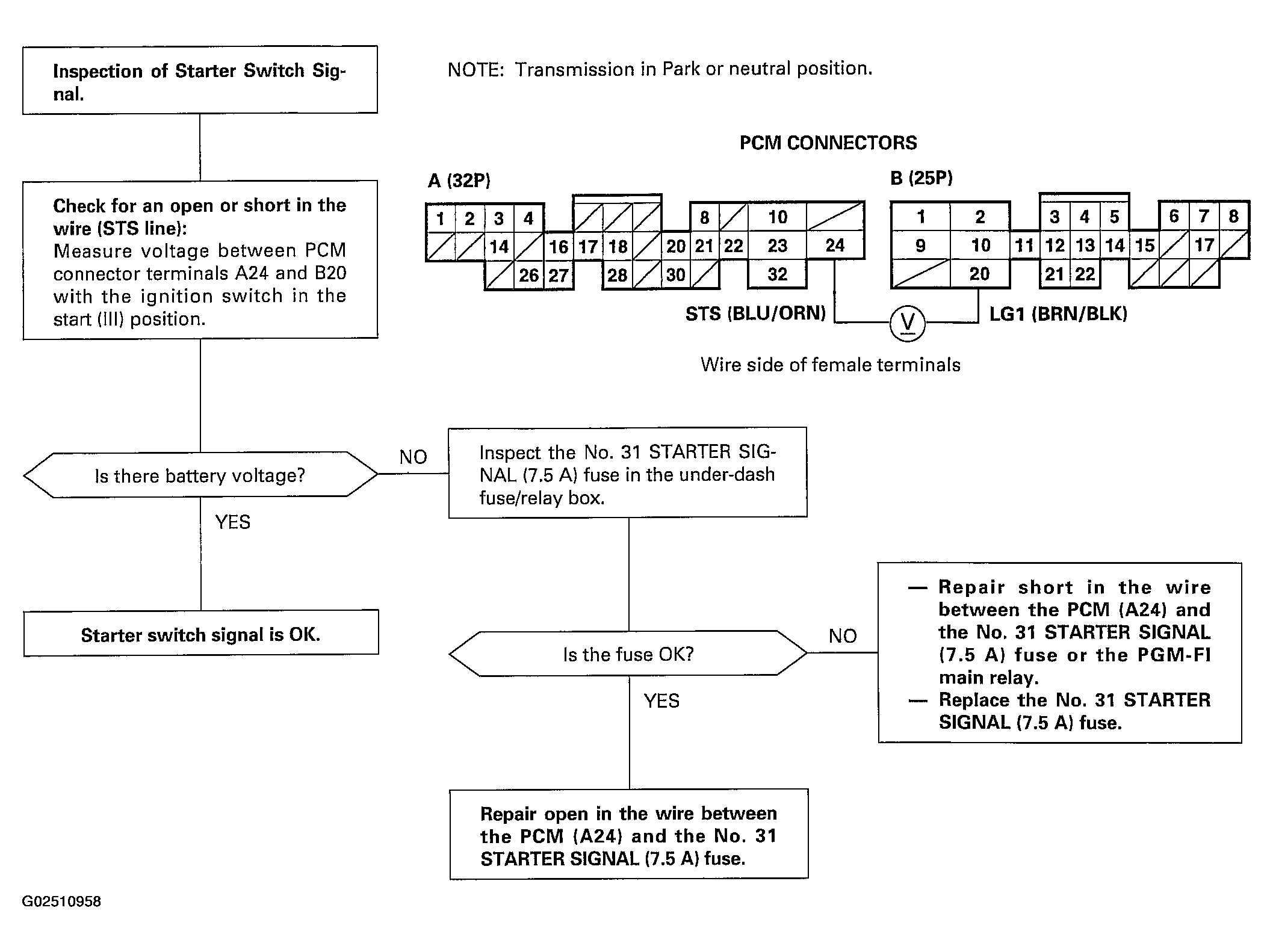

Fig 1: Starter Switch Signal Troubleshooting Flowchart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
