Function Test: Notes

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 10P connector (A) from the power mirror switch (B).

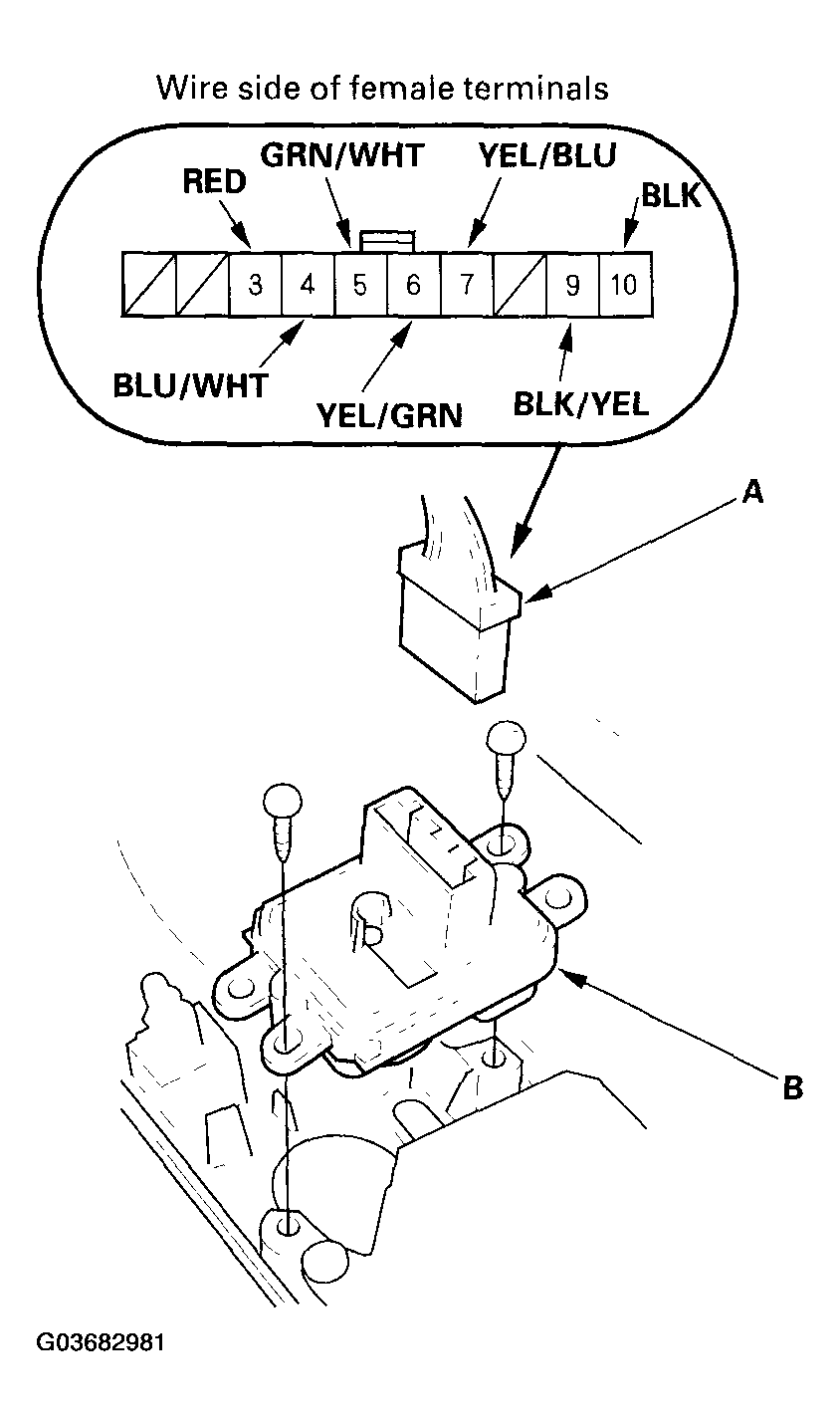

    Fig 1: Disconnecting 10P Connector From Power Mirror Switch
    G03682981Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Choose the appropriate test based on the symptom:
    • Both mirrors don't work, go to step 4.
    • Left mirror doesn't work, go to step  6 .
    • Right mirror doesn't work, go to step  7 .
