Hatch Lock Actuator/Latch Switch/Unlock Switch Test
›
Notes
Hatch Lock Actuator/Latch Switch/Unlock Switch Test: Notes
Open the hatch and remove the rear trim panel (see
TRIM REMOVAL/INSTALLATION - CARGO AREA
).
Disconnect the 6P connector (A) from the hatch lock actuator (B).

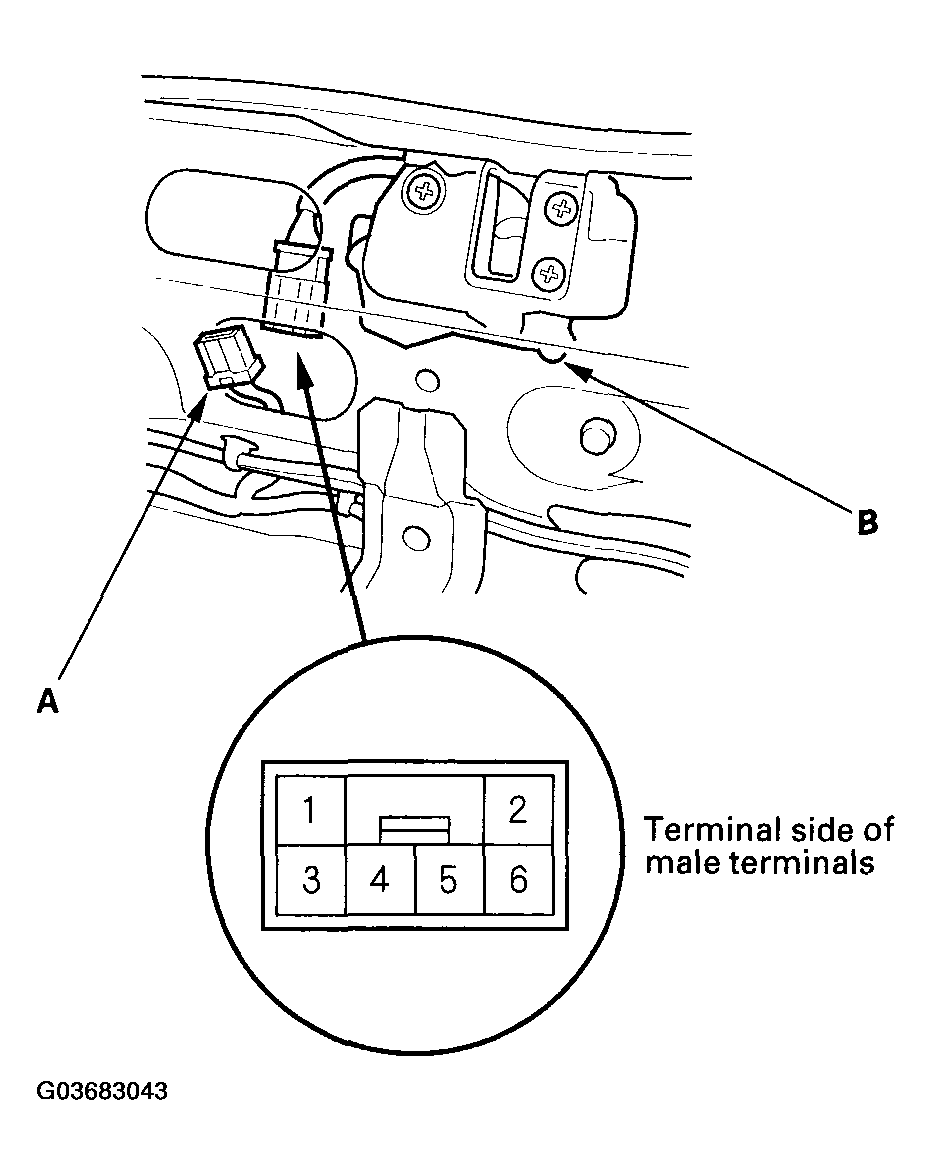

Fig 1: Disconnecting 6P Connector From Hatch Lock Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
