Hatch Lock Cylinder Replacement
NOTE:
- Take care not to scratch the body.
- Take care not to bend the cylinder rod.
- Remove the right side of the rear trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).

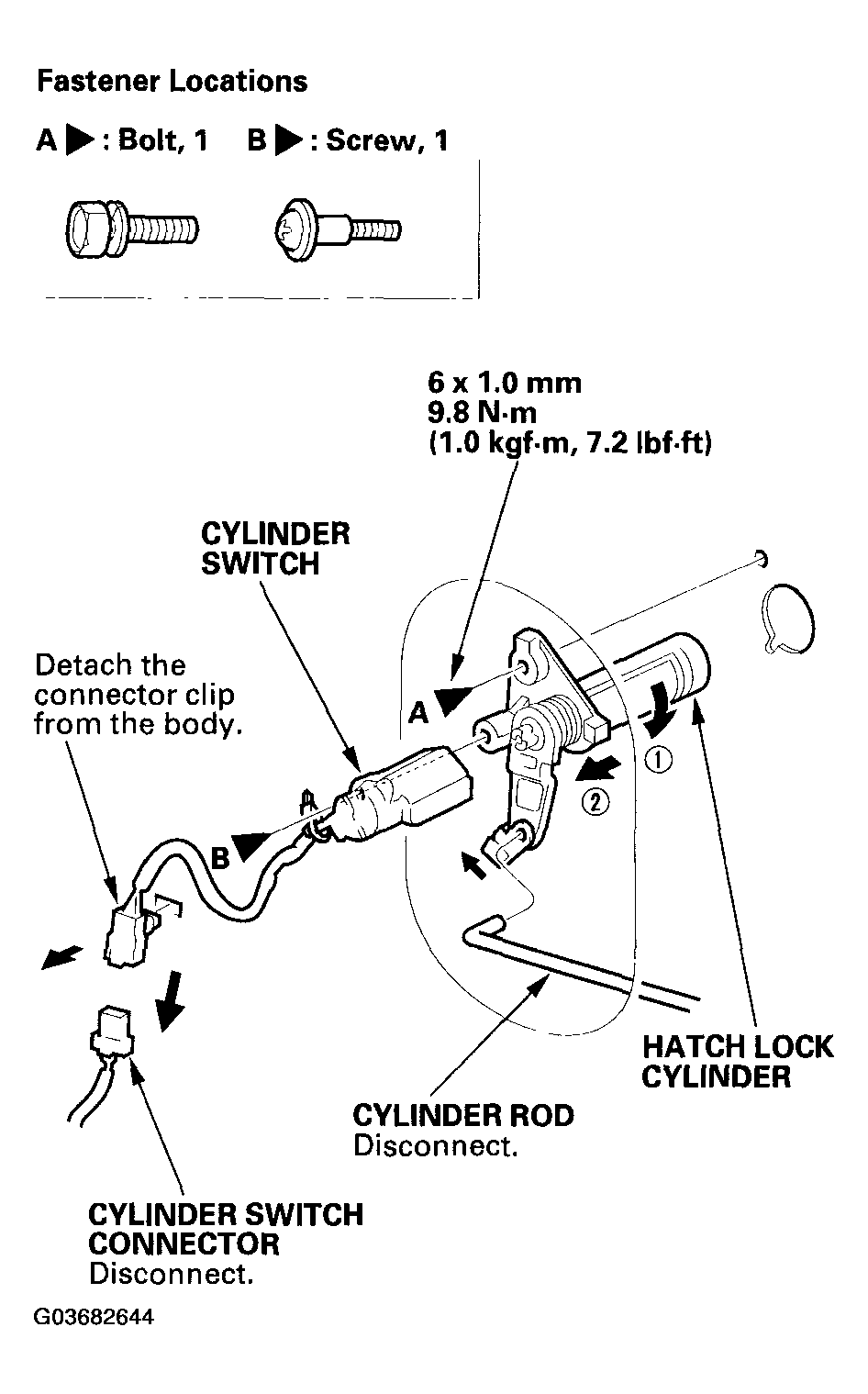

- Remove the hatch lock cylinder as shown.
- Install the hatch lock cylinder in the reverse order of removal, and note these items:
- Make sure the cylinder switch connector is plugged in properly and the cylinder rod is connected properly.
- Make sure the hatch opens properly and locks securely.
