Circuit Diagram
Circuit Diagram

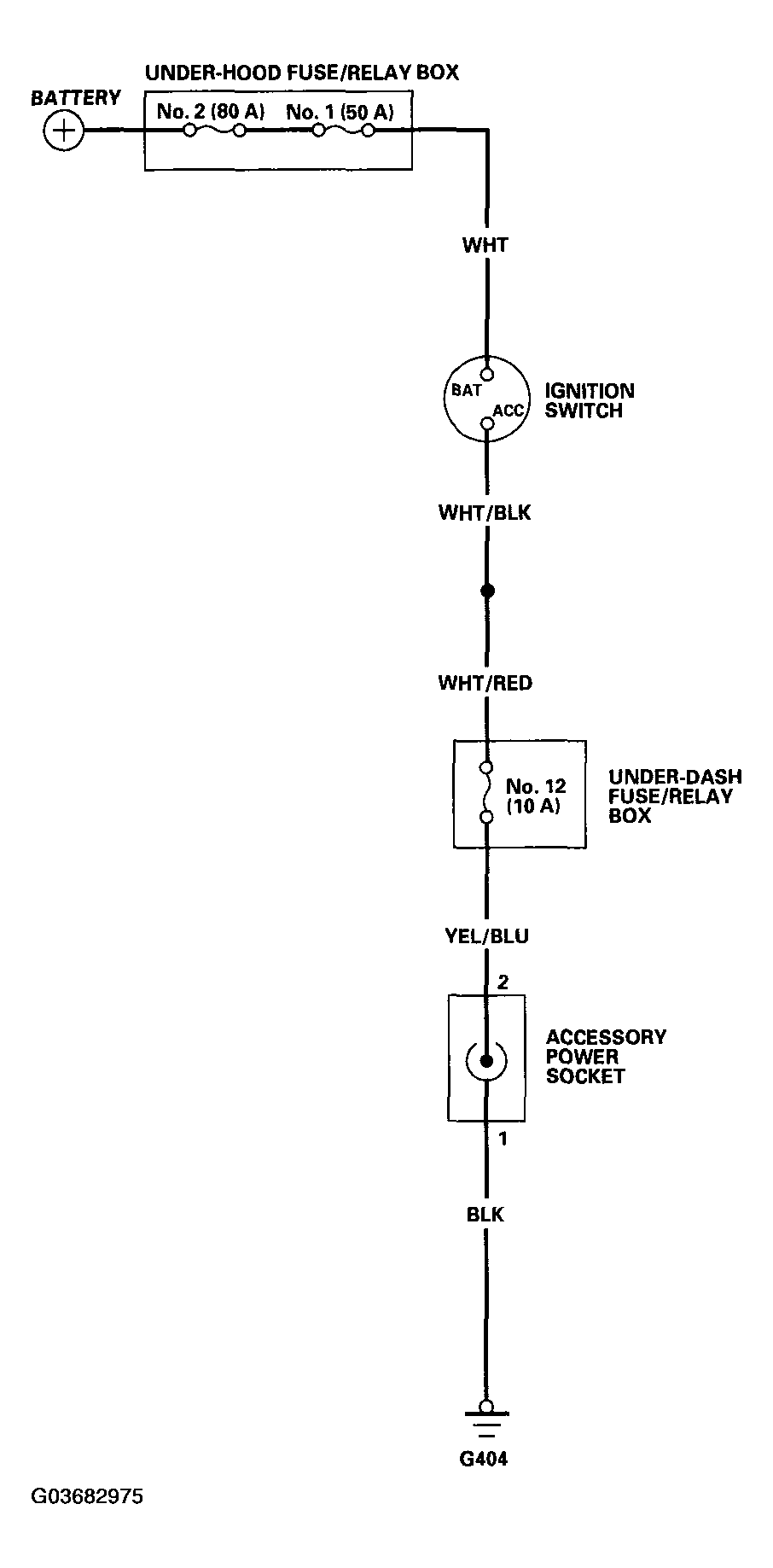

Fig 1: Circuit Diagram - Accessory Power Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
