BCM Module Connector End View
BCM Module Connector End View

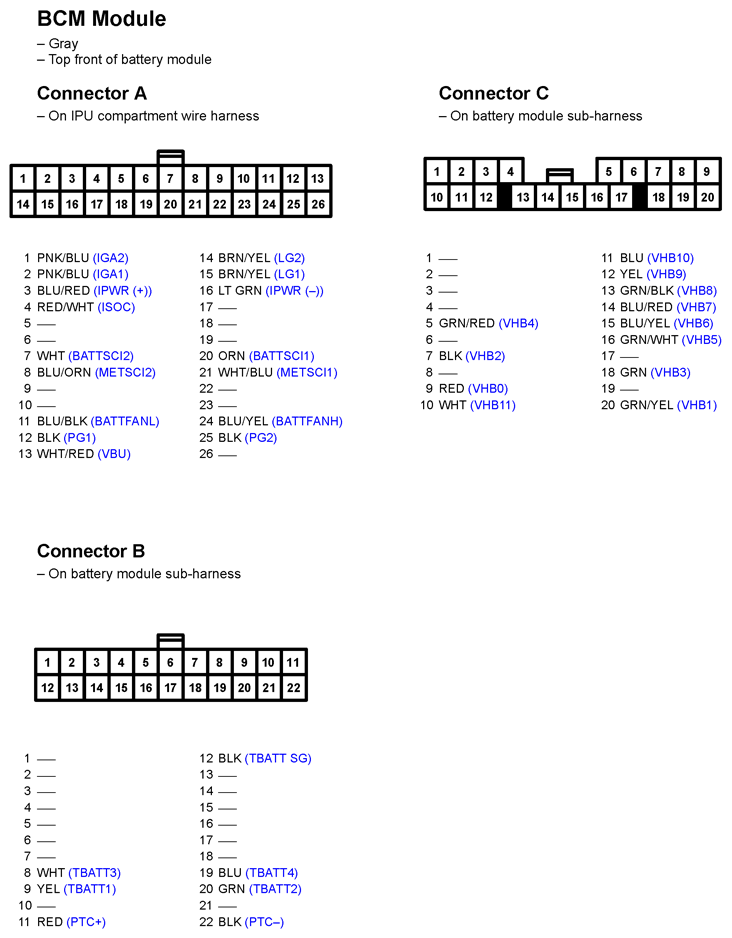

Fig 1: BCM Module Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
